Battery Short Circuit Tester For Not Charging Semi-Finished Battery Core Checking Out
SPECIFICATIONS
Testing the accidental short between anode and cathode after final sealing of pouch and cylinder cell.
1 Simple operating, directly display result
2 Fast test speed, large resistance range
3 Overrun audible and visual alarm
4 General insulation resistance tester
|
Model
|
Battery Short Circuit Tester TOB-YD2681A
|
|
Source voltage
|
AC110V/220V 50/60HZ
|
|
Warranty
|
One year limited with lifetime support
|
|
Voltage test
|
DC 0-15V, Resolution 10mv
|
|
Resistance range
|
10^5Ω-10^13Ω
|
|
Resistance test accuracy
|
R<10^12Ω5% R≥10^12Ω10%
|
|
Display
|
Mirror header indicating
|
|
Testing range setting
|
Manual
|
|
Testing speed
|
≤0.5 second
|
|
Dimension
|
380*140*320mm
|
|
Weight
|
7kg
|

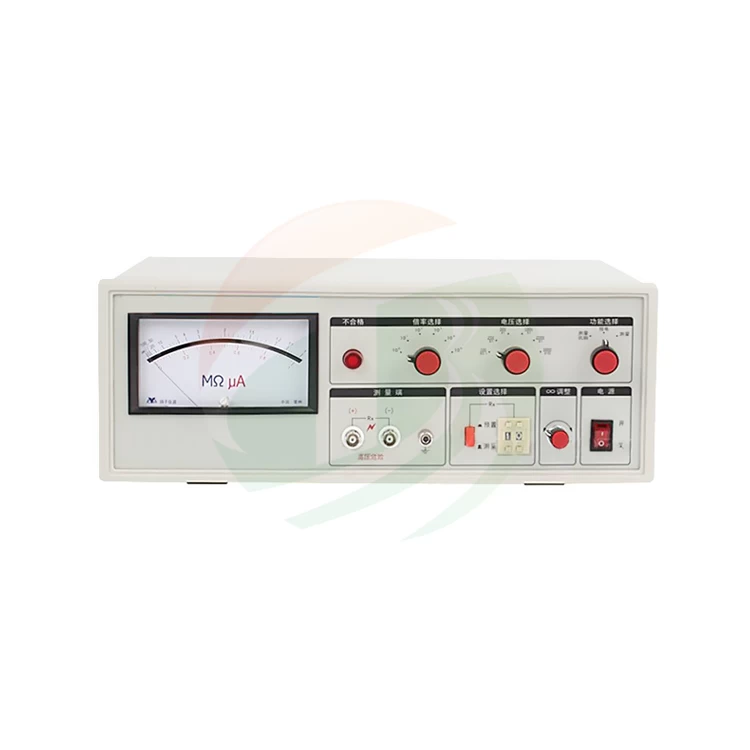

Product Display
