Classic Hotplate Magnetic Stirrer with heating temperature up to 340°C
SPECIFICATIONS
• Maintenance free brushless DC motor
• Max. temperature to 340°C
• Stirring speed up to 1500 rpm
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Safety circuits provide overheating protection
• A wide variety of accessories are available
|
Specifications
|
MS-H-S
|
|
Work plate dimension
|
φ135mm(5 inch)
|
|
Work plate material
|
stainless steel cover with ceramic
|
|
Motor type
|
Brushless DC motor
|
|
Motor rating input
|
18W
|
|
Motor rating output
|
10W
|
|
Power
|
550W
|
|
Heating output
|
500W
|
|
Voltage
|
100-120/200-240V 50/60Hz
|
|
Stirring positions
|
1
|
|
Max. stirring quantity[H2O]
|
20L
|
|
Max. magnetic bar[length]
|
80mm
|
|
Speed range
|
100-1500rpm
resolution±1rpm
|
|
Speed display
|
Scale
|
|
Temperature display
|
Scale
|
|
Heating temperature range
|
Room temp.-340°C
|
|
Over temperature protection
|
350°C
|
|
Temperature display accuracy
|
±0.5°C
|
|
Protection class
|
IP42
|
|
Dimension[WxDxH]
|
160×280×85mm
|
|
Weight
|
2.8kg
|
|
Permissible ambient temperature and humidity
|
5-40°C, 80%RH
|

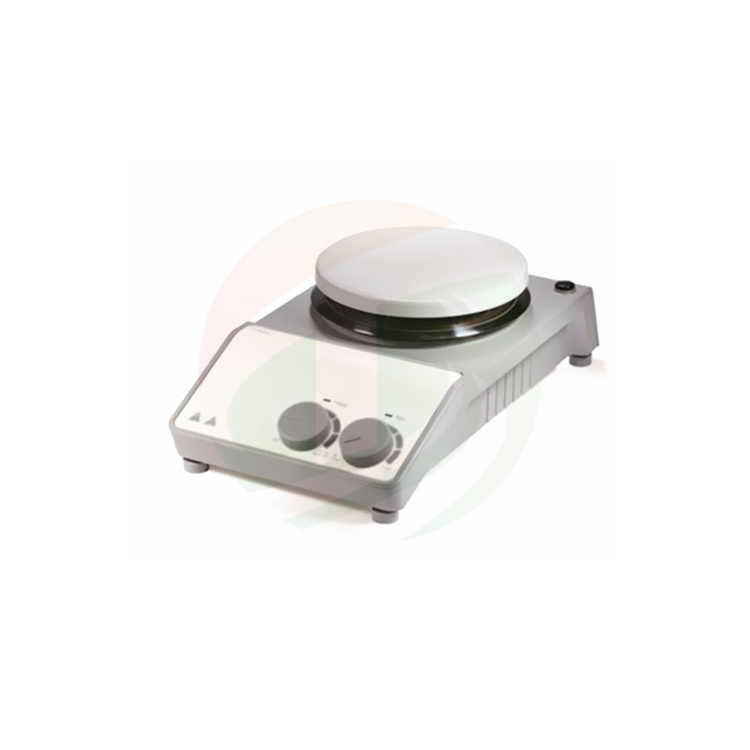

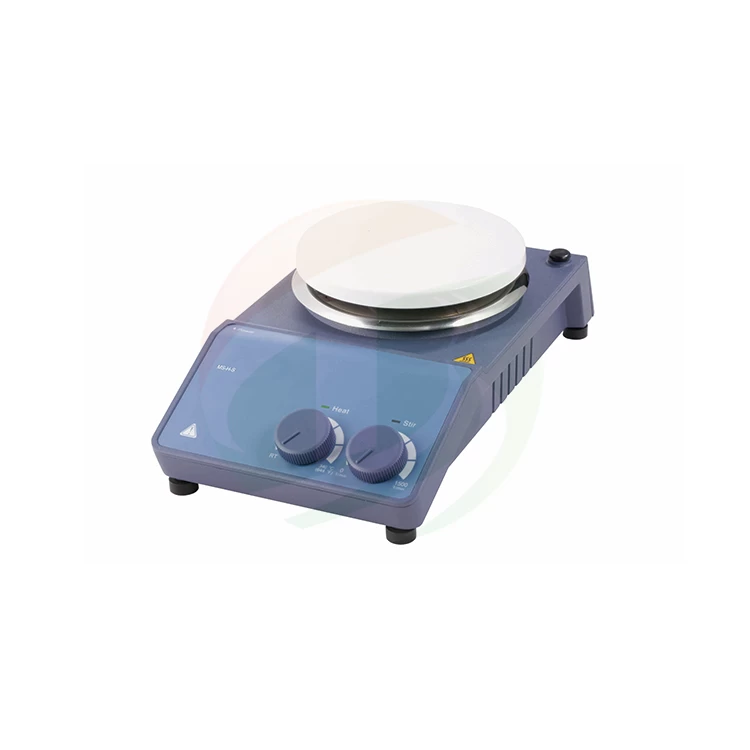

Product Display
