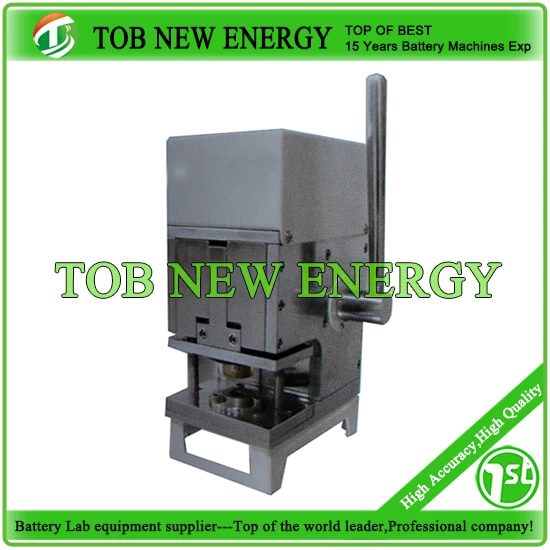

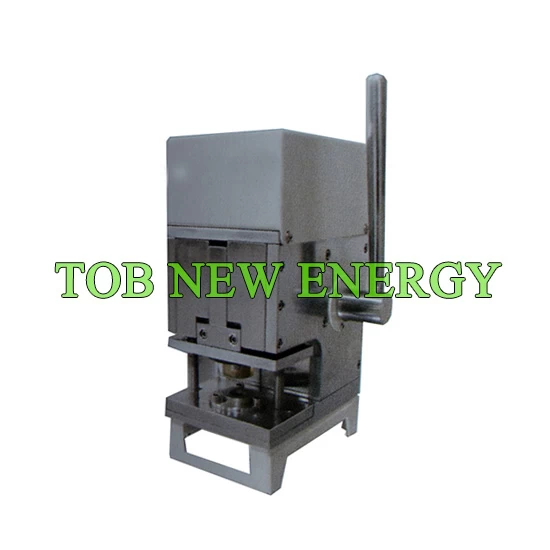

Precision Coin Cell Punching Machine with Bespoke Punching Die for Electrode and Separator Cutting
SPECIFICATIONS
The Coin Cell Punching Machine is used for coin cell electrode punching with customized cutting die. It's operation is simple with light weight, The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches.
|
Machine model
|
Coin Cell Punching Machine
TOB-CP-S2
|
|
Operating
|
Manual
|
|
Punching size
|
Standard configuration : φ14mm punching die,
|
|
φ8-24mm can be chosen
|
|
Application Notes
|
For make CR2016, CR2025 or/and CR2032 coin cell batteries,
|
|
we will need at least three cutting dies:
|
|
A 15mm (for negative side case, which is 16.5mm in diameter)
|
|
B 19mm (for positive side case, which is 20mm in diameter)
|
|
C 20 mm (for separator to fully separate the electrodes)
|
|
For CR2450 coin cell:
|
|
20mm cutting die can be used for cutting electrode discs and the
|
|
24mm cutting die for either electrode or
separator disc.
|
|
Die materials
|
Hight quality die steel with HRC60
Hardness
|
|
Punching stroke
|
25mm
|
|
Punching thickness
|
0.005-0.5mm electrode and separator
|
|
Advantages
|
Simple operation
|
|
Light weight
|
|
Can both cut electrode and separator
|
|
Dimension
|
166*196*233mm
|
|
Weight
|
About 15kg
|
|
Warranty
|
One Year limited warranty with lifetime support
|
