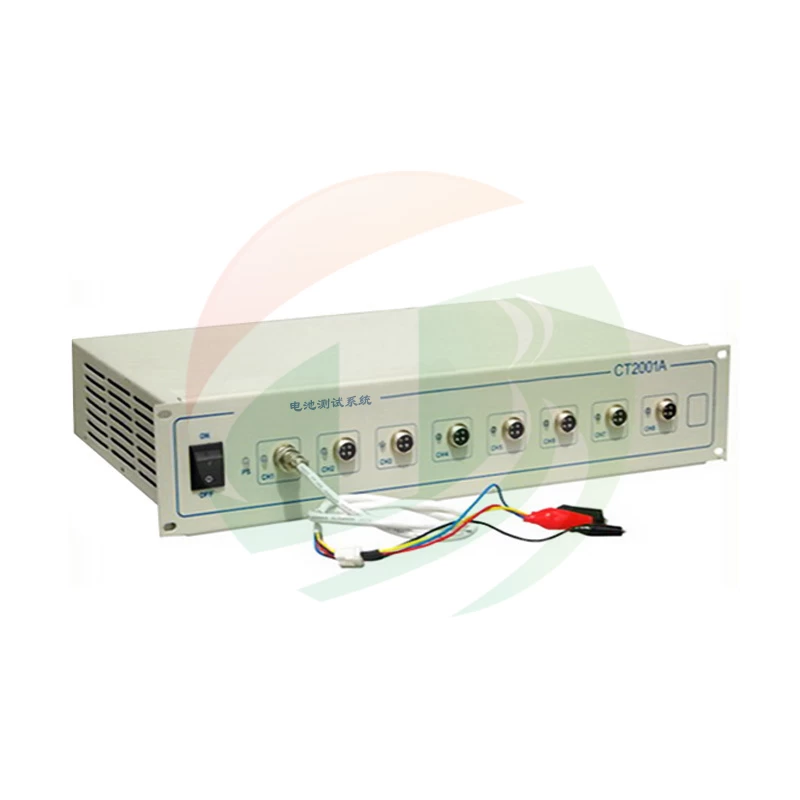

Coin Cell Tester

TOB-5V10mA coin cell testeris aneight-channel battery analyzerto analyze small coin cells with a range current 0-10mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.



8 Channel Coin Cell Tester (0.1-10mA, up to 5V) with Laptop & Software for Research


SPECIFICATIONS



1TOB-5V10mA coin cell testeris an eight-channel battery analyzer to analyze small coin cells with a range current 0-10mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2 This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3 The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

Machine model

Coin Cell Tester  TOB-5V10mA

Source voltage

110v to 220v 50/60HZ

Power

30W

Current range

0-10mA

0.05%RD±0.1%FS (control and measurement)

Voltage range

0-5V

0.1%RD±0.1%FS (control and measurement)

Cycles

9999cycles

Contents of step

Constant current c/d , constant voltage c/d, constant power discharge,

constant resistance discharge, DCIR,rest

Conditions of constraint

Time, voltage, current, capacity, etc.20 kinds

Protection modes

Overvoltage, under voltage, over current, under current, over capacity, etc.

Programming steps

Unlimited (more than 200 steps)

Channels

Eight independent programmable channels

Each channel can set different working modes and functions independently

Output mode

4 electrode (supporting reference electrode test)

Software

1 The software with calibration function is included to set various working

modes for measuring capacity and life cycle for all types of rechargeable batteries

2 Working modes Include constant current discharge, constant current charge,

 constant voltage charge, rest, etc

3 Limited threshold conditions include voltage, current, time, capacity,

negative voltage slope, etc

4 With real-time monitoring windows and integrated graph/data windows,

 the testing process can be observed more directly and efficiently

5The calibration software can be used to calibrate the analyzer

Testing report and

curves

1 Different types of curves can be created by software base on user definition.

 (Voltage-time curve, current-time curve, capacity-voltage curve,loops times-charge/

discharge capacity curve, loops times charge/ discharge efficiency curve, etc)

2Data reports are created by software.

3User can easily compare the performance of the batteries tested

in channels both visually and statistically

Dimension

250*200*60mm

Weight

12kg

Testing clamps

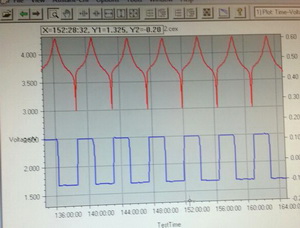

Testing result curves

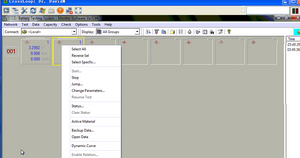

Setting menu



PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.
