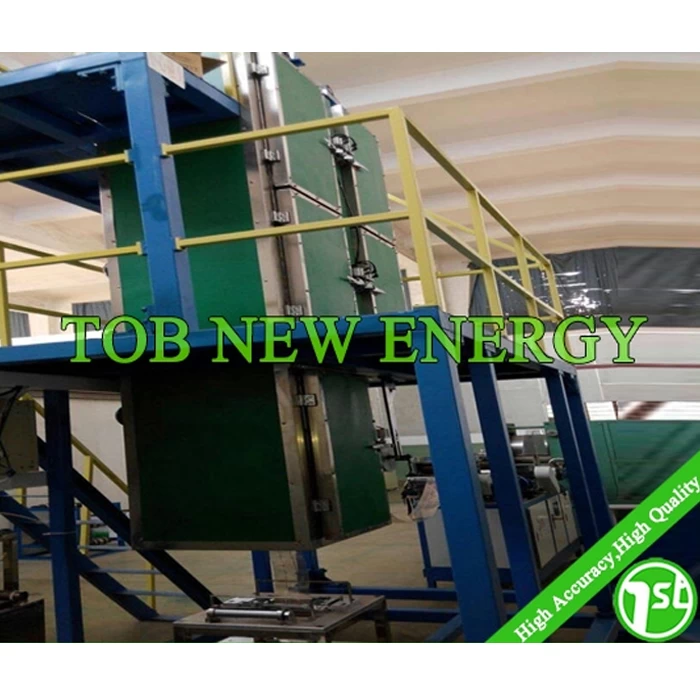

Conductive adhesive coating on the Cu mesh or Al mesh machine
SPECIFICATIONS

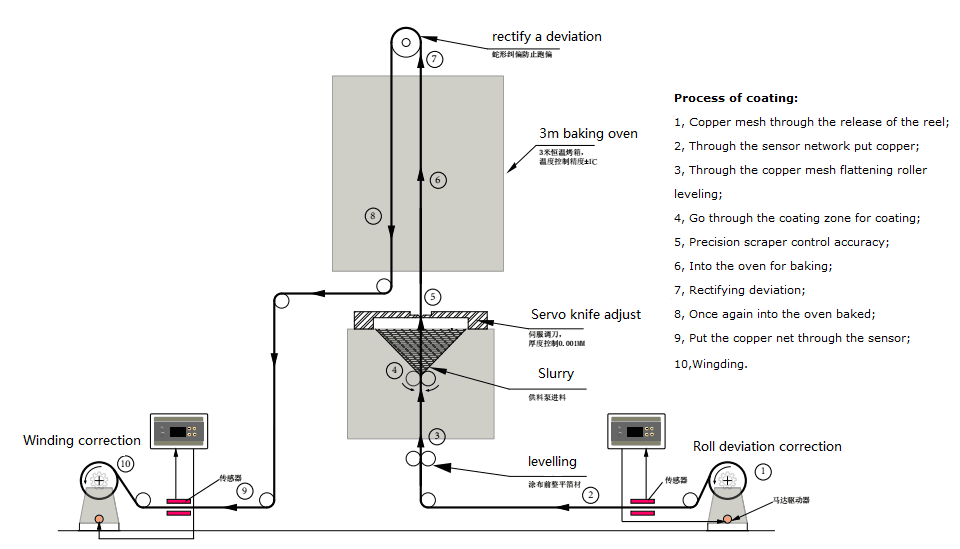

1 Equipment standard composition and key configuration
table
1） Put roll mechanism;
2） Coating tension mechanism;
3） Coating mechanism;
4） Drying system;
5） Winding tension mechanism;
6） Winding mechanism;
7） Automatic control system.
2 Machine Charactor：
|
No
|
Item
|
Charactor
|
Remark
|
|
1
|
Size
|
Width
|
1.5m
|
Place Area : 2m(W)*10m(L)*5m(H)
|
|
Length
|
8m
|
|
Height
|
5m
|
|
2
|
Coating type
|
Continuous coating
|
|
|
3
|
Scraper adjustment
mode
|
Servo motor control
|
|
|
4
|
Effective coating
width
|
≤300mm
|
|
|
5
|
Coating speed
|
1-12m/min
|
Coating speed is
related to the material system and coating thickness.
|
|
6
|
Coating speed
precision error
|
≤0.1m/min
|
|
|
7
|
Coating speed
|
15m/min
|
|
|
8
|
Overall length of
coating machine
|
≤12m
|
Front of machine:3.5
meters,
End of machine: 3.5
meters.
|
|
9
|
Overall height of
coating machine
|
≤5M
|
|
|
10
|
Oven length
|
3m
|
Motor drive roller
transmission
|
|
11
|
Single section oven
heating power
|
13.5Kw
|
Electric heating
|
|
12
|
Oven maximum
temperature
|
150℃
|
Ambient temperature
of 30 degrees, single section measurement
|
|
13
|
Oven surface temperature
|
≤50℃
|
|
|
14
|
Temperature control
precision
|
±1℃
|
Indicator value
difference of temperature control meter
|
|
15
|
Single oven section wind
quantity
|
2500m^3/h~3500^3/h
|
Up and downget in a draught, frequency conversion control,
air volume can be adjusted
|
|
16
|
Coating thickness
error
|
±1.5μm
|
|
|
17
|
Winding error of
edge order
|
±0.5 mm
|
Φ400mm/Roll
|
|
18
|
Rectificationmethod (including
the outlet of the oven Rectification)
|
Automatic deviation correction, precision ±0.5 mm
|
Ultrasonic testing /
servo motor
|
|
19
|
Unwinding mechanism
|
Speed control mode
of variable frequency motor
|
Maximum load weight 200kg.
|
|
20
|
Winding mechanism
|
Servo motor
|
|
21
|
Tension control
system
|
Constant tension
|
Automatic tension
compensation,
Partial tension
control of the Winding / unwinding
|
|
22
|
Controller and man
machine interface
|
10.2 Inch color
touch screen
|
Convenient operation
and maintenance
|
|
23
|
Equipment main body
color
|
Light gray powder (except stainless steel)
|
Standard color PANTONE 1C (Have special requirements, please
provide the color)
|
|
24
|
Oven transition
roller
|
Surface polishing /
oxidation treatment
|
Stainless steel non
grease rolling bearing
|
|
25
|
Oven insulation
material, oven material, thickness, sealing
|
Oven material is
SUS304/ 202 stainless steel, thickness 1.5mm, NMP corrosion protect. With the
continuous weld liner, leak proof NMP.
|
Insulation material
for rock wool insulation oven, effective for temperature keep.
|
|
26
|
Abnormal alarm
function
|
Buzzer / touch screen prompt failure reason
|
|
|
27
|
Safety device
|
Mechanical interlock / safety warning signs / emergency
stop switch button / protective cover, etc.
|
|
|
28
|
Counting function
|
Production quantity
/ length
|
|

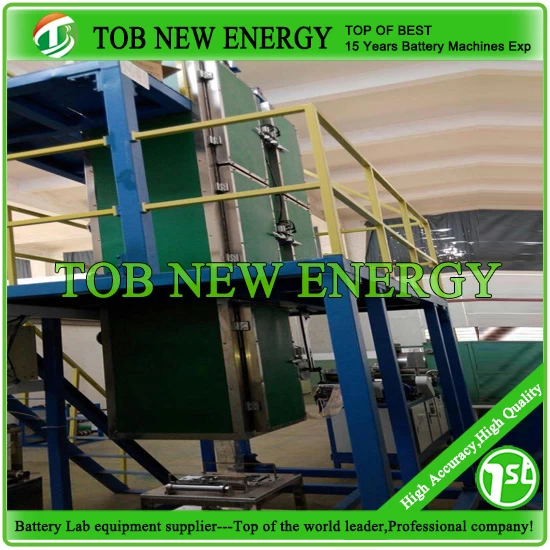

3 PRODUCT DISPLAY
4 Environmental requirements:
1), Temperature: Front part 27±3℃;
2), Relative humidity: Front part : ≤30 HR%;
3),Compressed air: after drying, filtration and pressure
regulator: air pressure: ≥5.0kg/cm2; Gas consumption is about 4m3/h
4), Power: three-phase 380V, 50HZ, voltage fluctuation
range: +10% ~ -10%; equipment maximum power 25KW; (Normal working is about 60%
of the maximum power)
5), Ground: protection of grounding.
6), Ground requirements: the basis for cement and terrazzo floor,
flatness ±2mm/㎡, the carrying capacity of 600㎏/㎡;
7), Party A is responsible for to party a site from the coating
machine installation of the nearest location required by Party B design of
electric power, gas and the, requirements per device is provided with
independent air supply switch and gas source interface, and Party A shall
confirm the equipment display layout.
8), Coating machine outside the air inlet and exhaust pipes,
valves, exhaust fan by Party A to provide;
9), The equipment in
the first party to use the power of debugging, the substrate, the size of party
a free of charge, and is responsible for the arrangement of the relevant
operating personnel, maintenance personnel and technical personnel;
