CR1820 Coin Cell Cases, bottom separate from the gasket
SPECIFICATIONS
Button Cells Cases (18d x 2t mm) with Seal O-rings for Battery Research，bottom separate from the gasket.
CR1820 button cells case including bottom and top part , made of 304 stainless steel with sealing O-ring.
It is excellent for developing new rechargeable battery and battery electrodes
|
Model
|
T-1820 Coin Cell Cases
|
|
Material
|
Case: SS304
Insulation ring: PP
|
|
Upper case
|
Outside diameter
|
18.46mm
|
|
|
Inner diameter
|
17.87mm
|
|
|
Thickness
|
2.25mm
|
|
|
Outer diameter of O-ring
|
17.62mm
|
|
Bottom case
|
Outside diameter
|
16.78mm
|
|
|
Height
|
1.31mm
|

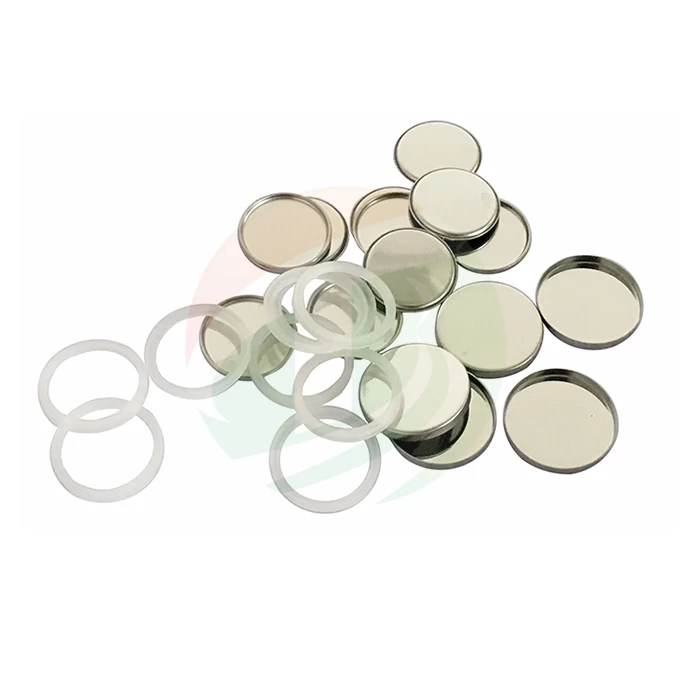

PRODUCT DISPLAY
PACKAGE
