Customized Design EI Series Encapsulated Transformer for Power Supply

EI Type Printed-Circuit-Board transformers Output Power: 130.0 VA – 200.0 VA. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features.  Self-extinguishing cast housing and sealing material.RoHS Directive-compliant.



China professional electronic components factory MCT, producing and designing electronic transformers, we use high quality materials to make our encapsulated transformers more stable. Customized specifications and OEM service are accepted.


Quick Details

Part No: EI96 130.0 VA – 200.0 VA

Brand name: MCT

Output Power up to 200.0 VA

Custom made: Available

Temperature class ta 70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: Customized Design EI Series Encapsulated Transformer for Power Supply

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Part Number

Frame size/Core height

Output Power Ta 70°C/B

Height(h)

Weight

MCT EI 961/35.7mm

130.0V/A

60.2±0.5mm

2.600kg

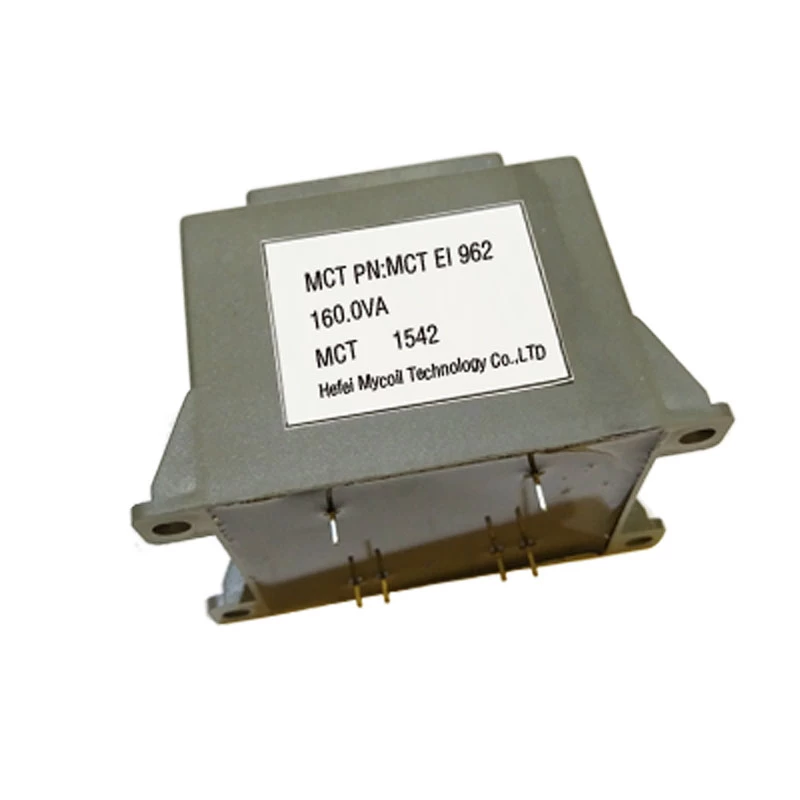

MCT EI 962/46.5mm

160.0 V/A

70.0±0.5mm

3.800kg

MCT EI 963/59.7mm

200.0V/A

84.0±0.5mm

4.600kg


Product Specification

EI Type Electronic Encapsulated Transformer for ChargerEI96 Encapsulated Power Transformer with IECBest price EI encapsulated transformer for PCB Mounting
