Semi-auto Grooving Mahcine for Cylinder Battery Supercapacitor Can Channeling
SPECIFICATIONS
CE Certificate:
Battery Semi-auto Grooving Machine for all kinds of cylinder battery 18650, 26650, CR123A and supercapacitor with changing die.
Functional overview：
It is used in the channeling process of cylindrical battery that is producted in laboratory and enterprise in small scale.
Functional characteristic：
The channeling molds that are equipped withstandard 18650 cylindrical battery；
It can be used in the channeling process of the steel shells of 26650 and other cylindrical battery by relace molds；
The dimension of the channeling can be adjusted slightly，the size is small，which makes it easy to operate and the appearance is attractive；
The channeling is high precision and the dimension is stable.
|
Model
|
TOB-PGC1W
|
|
Power source
|
AC200V/50HZ
|
|
Total power
|
200W
|
|
Air source
|
0.5-0.7Mpa
|
|
Depth of the
channeling
|
1.2-2.0mm（adjustable）
|
|
Width of the
channeling
|
1.5mm（The thickness of the hob can be customized）
|
|
Machining accuracy
|
±0.1mm
|
|
Hob life
|
>One million times
|
|
Capacity
|
semi-automatic 400 ea/h
|
|
Channeling
molds
|
18650,26650，etc.
|
|
Channeling
time
|
0-99s(adjustable)
|
|
Dimensions
|
720（L）*380(W)*480(H)mm
|
|
Weight
|
52Kg
|

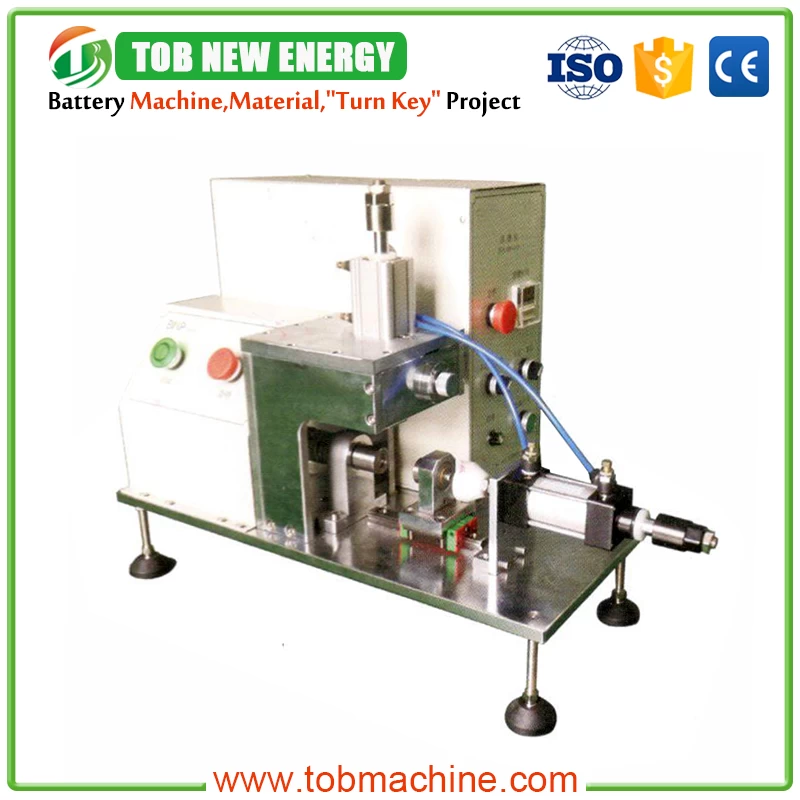

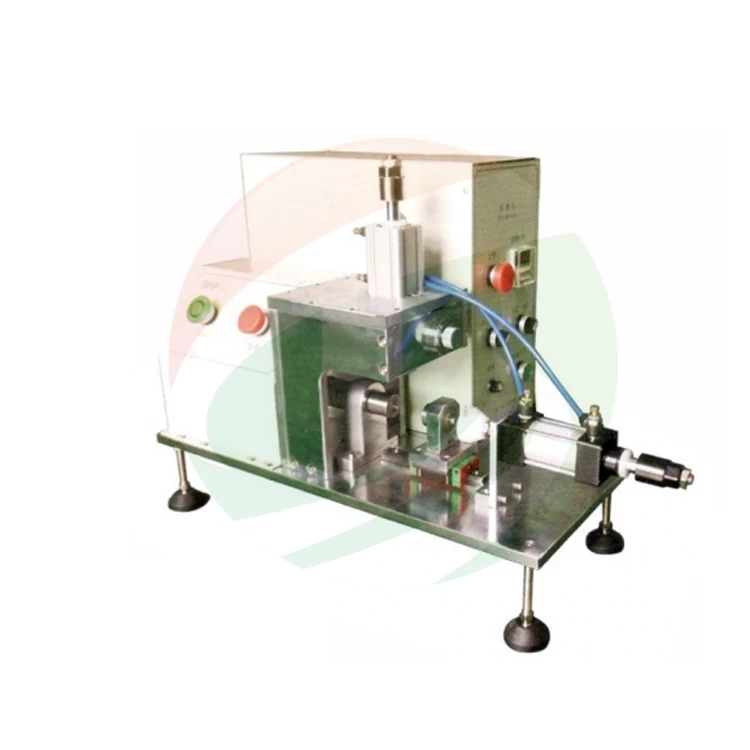

PRODUCT DISPLAY
