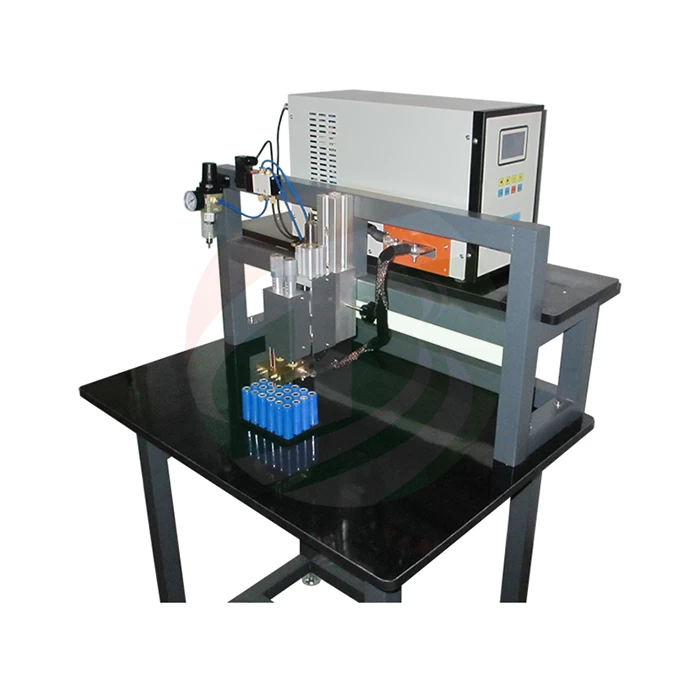

Cylindrical Lithium Ion Battery Pack Welding Machine
SPECIFICATIONS
l DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .
2 High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
3 LCD display.
4 High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
5 Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.
6 The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.
7 Double pulse can reduce welding spatter, effectively improve the quality of welding.
8 Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.
9 Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.
|
Model
|
TOB-HDP-3000
|
|
Transformer maximum output power
|
25KVA
|
|
Two sides of the maximum welding current
|
6000A
|
|
DC energy storage capacity
|
6600uF
|
|
Welding pulse number
|
9 sets of pulses
|
|
Welding voltage
|
5v-330v adjustable, precision 0.5V
|
|
welding time
|
0.1ms-5.0msdjustable, precision 0.1ms
|
|
Welding mode
|
Normal / continuous
|
|
input frequency
|
AC 220V±10% 50Hz±2Hz
|
|
Maximum working pressure
|
6KG
|
|
Weight
|
65KG
|
|
Weld thickness
|
Maximum thickness of parallel welding:0.03mm~0.5mm ,Multiple welding sheet
|

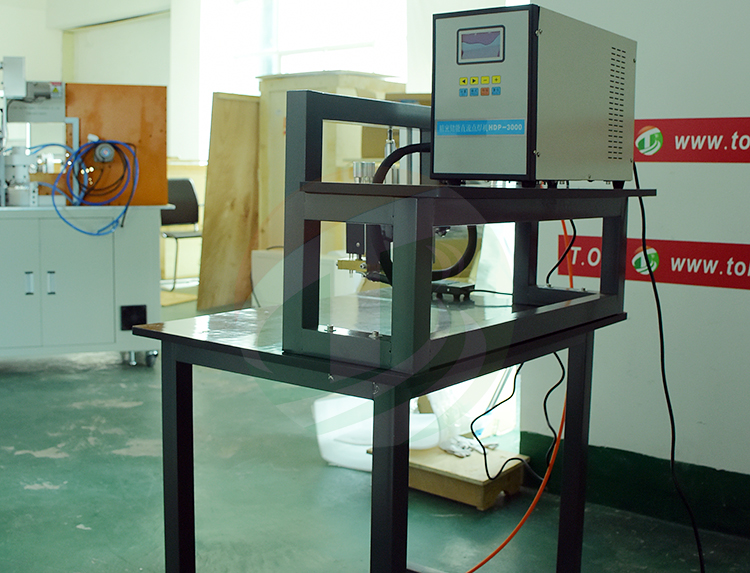

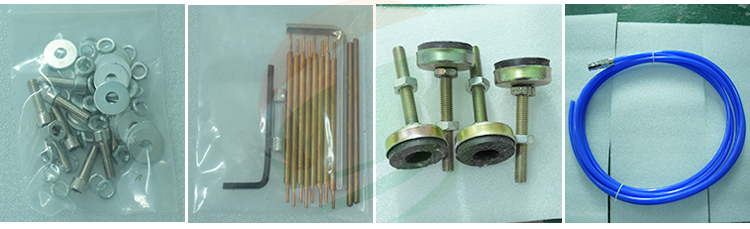

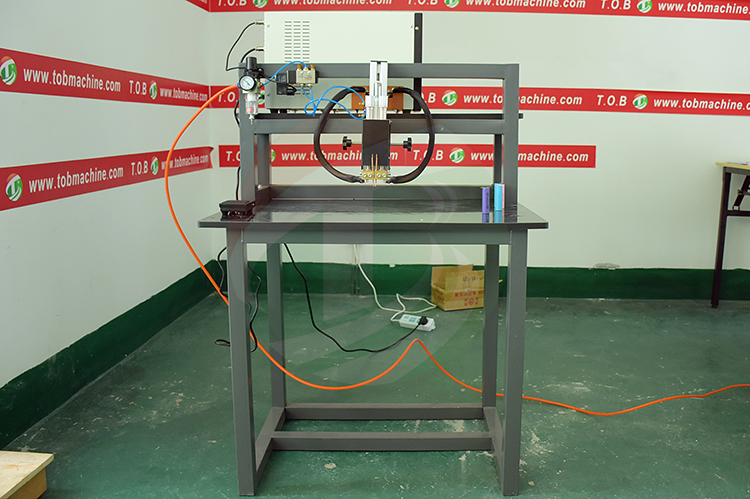

PRODUCT DISPLAY
