80-100ml Desktop Laboratory High Speed Vibrating Ball Mill
SPECIFICATIONS
TOB-GZQM-80 ball milling machine is a compact high speed vibrating ball mill for making small quantity of powder samples at easy and fast with improved vibration design.
It can be used for both dry and wet mill method to mill different material of solid, suspended liquid, and paste in laboratory.
It has higher impact energy created by three dimensional movement, e.g. rotation, vibration and oscillation with frequency up to 1200 cycles per minute.
|
Model
|
TOB-GZQM-80 High Speed Vibrating Ball Mill
|
|
Voltage Supply
|
110V/220V, 50/60HZ Customized
|
|
Power
|
180W
|
|
Oscillation Frequency
|
1,200 rounds/min
|
|
Timing Range
|
0 to 120 minutes for built in mechanical timer
|
|
Volume
|
Stainless steel tank 80ml
|
|
Maximum Feeding Capacity
|
1/3 of the capacity of the ball milling tank
|
|
Feeding Granularity
|
<1mm
|
|
Discharging Granularity
|
0.1 micron minimum
|
|
Overall Dimensions
|
405mm(L) x 365mm(W) x 260mm(H)
|
|
Net Weight
|
40 kg (88 lbs)
|
|
Warranty
|
one years limited warranty with life time support
|
|
Shipping Dimensions
|
26"(L) x 26"(W) x 24"(H)
|
|
Shipping Weight
|
62kg. (135 lbs)
|
Accessories List
|
TOB-GZQM-80 Ball Mill Machine
|
1 set
|
|
Power Line
|
1 Pcs
|
|
Stainless Steel Tank 80ml
|
1 pcs (Can customize to 100ml)
|
|
Stainless Steel Ball
|
1 set (Or other required materials ball)
|
|
Operating Manual (English)
|
1 book
|

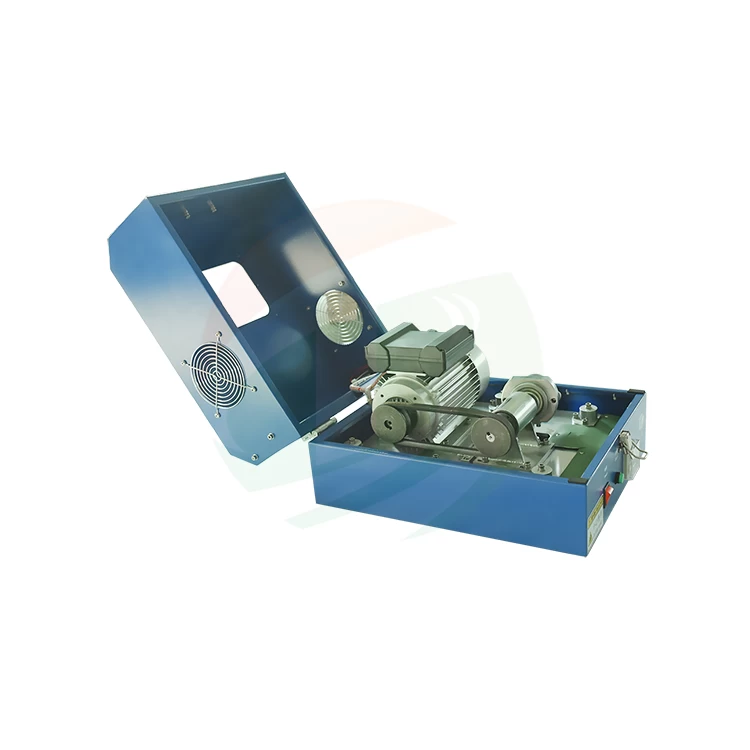

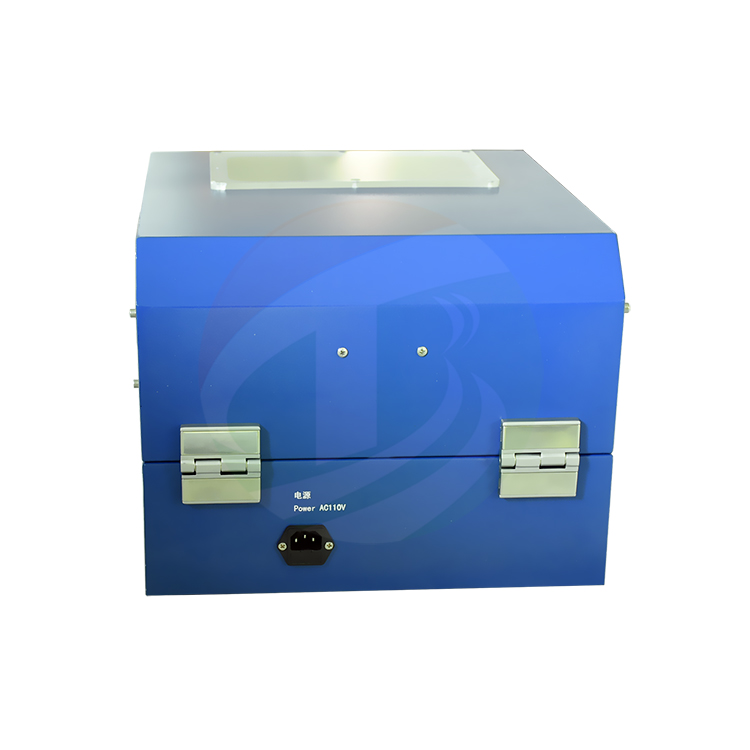

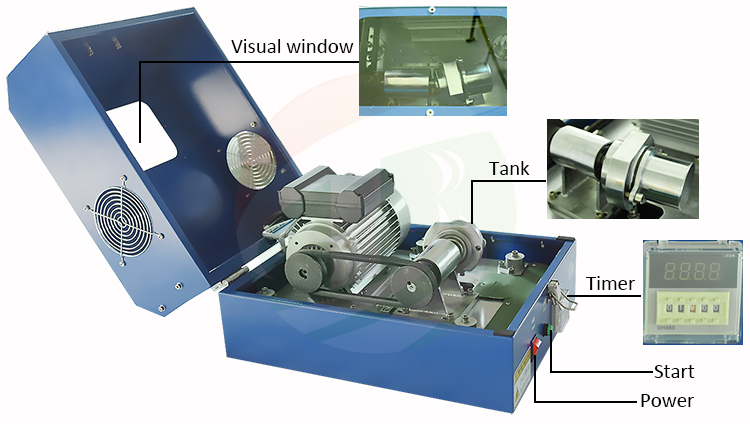

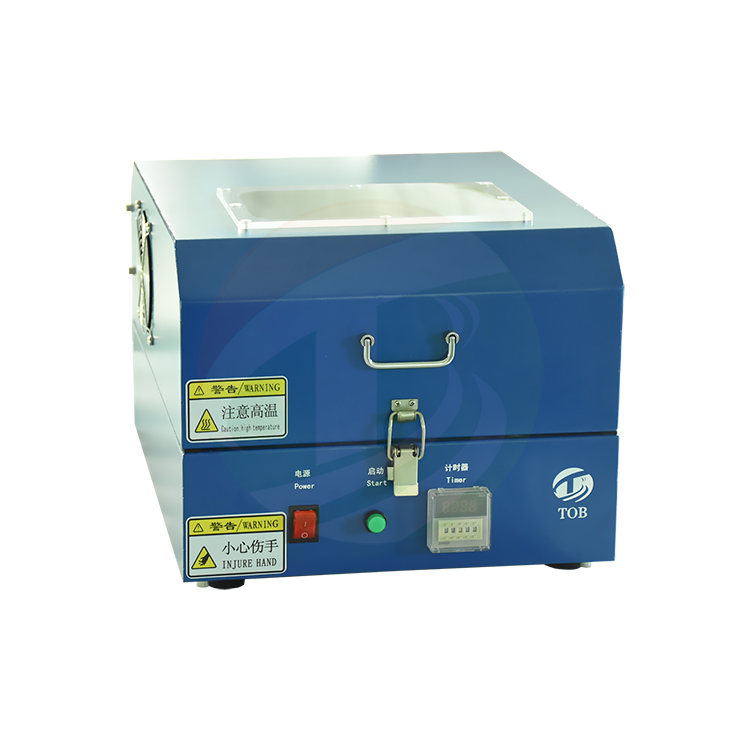

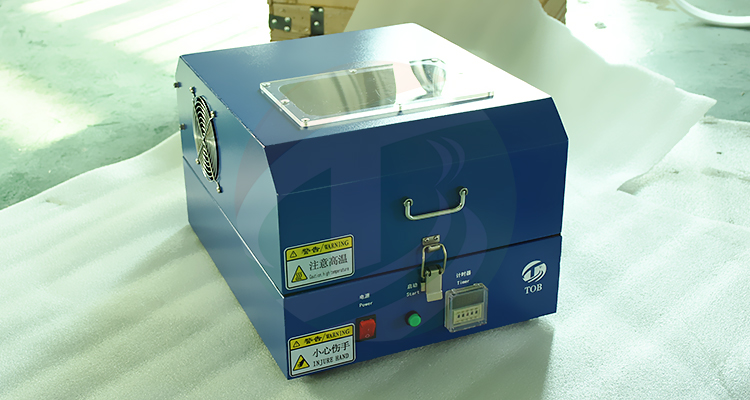

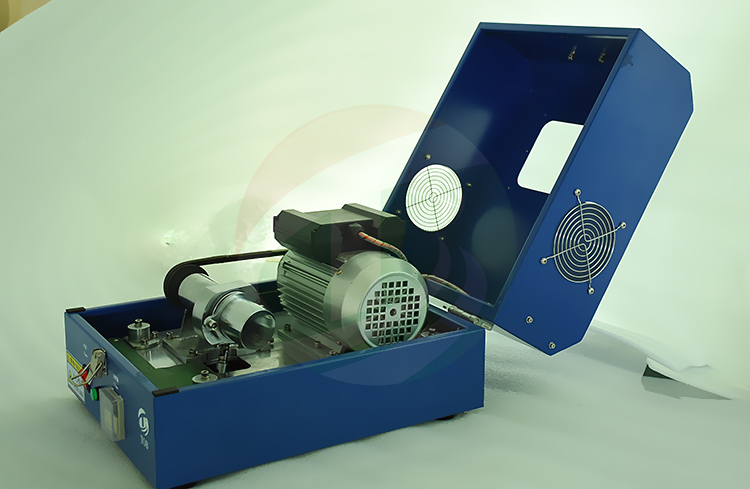

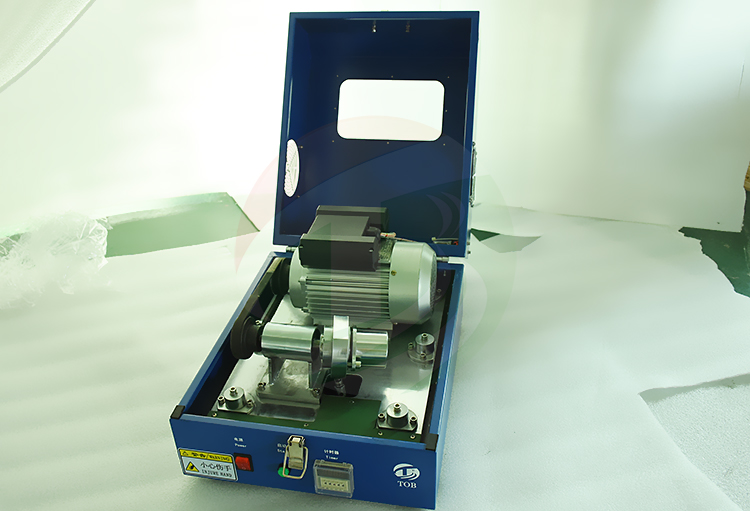

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
