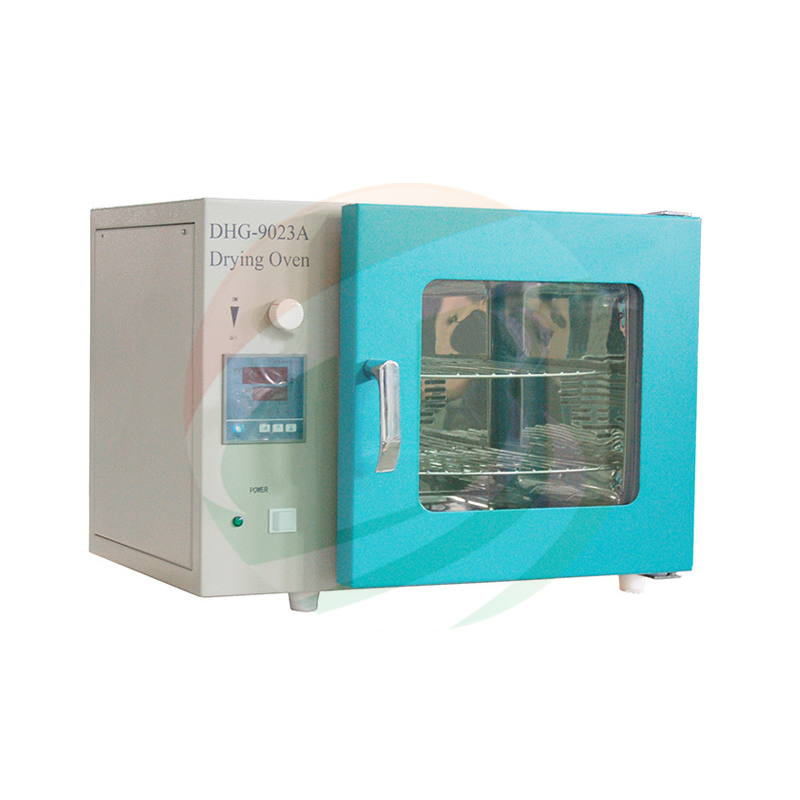

DHG-9023A Forced Air Drying Oven

The TOB-DHG-9023A Forced air drying oven is mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment.



25L Forced Air Drying Oven (300*300*270mm Chamber, 250°C) With Stainless Steel Material Inner Plate


SPECIFICATIONS



1 The TOB-DHG-9023AForced air drying ovenis mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment.

2 ThisForced air drying ovenadopts high quality cold rolled steel sheet, with strong rust resistance. The inner material is stainless steel, easy cleaning.

3 Reasonable hot air circulation channel is designed in the cabinet, so that the temperature distribution in the cabinet is more even, temperature rise faster. Equipped with adjustable air outlet, for adjusting the in and out of the air in the cabinet. And also canoutput the bad air with connecting a pipe outside work place.

4 Temperature control is microcomputer intelligent digital technology controller with PID function and LED display.


Model

Forced air drying oven  TOB-DHG-9023A

Source voltage

110V/220V 50HZ

Power

750W

Warranty

One Year limited warranty with lifetime support

Work box size

300*300*270(mm)

Oven size

500*450*440(mm)

Temperature range

RT+10~250℃

Temperature resolution

±0.1℃

Temperature fluctuation

±0.5℃

Temperature controller

Dual screen four bit digital temperature controller.

Self tuning function. The timing time can up to 9999 minutes

Inner box material

High quality mirror stainless steel plate,

round shape, smooth surface, easy to clean

Outside material

High quality cold-rolled steel plate, the surface electrostatic spray,

hard and firm coat, with strong anti rust ability

Sensor

A grade PT100 Platinum resistance

Heat pressure layer

High quality insulation system, inner box, inner shell,ultra-fine glass fiber,

Aluminum foil aluminum reflector, air - interlayer from inside to outside

Observe window

The box door are provided with double-layer tempered glass observation window,

can observe the test result easily

Heating mode

Electric heating. Nickel chromium alloy electric heater

Safety installation

With over temperature protection, grounding etc.

Wind duct

Forced air circulation channel, ensure that the studio uniform temperature;

air duct provided with a heater, temperature sensor

Adjustable air intake

The control box and outlet air quantity,the casing is provided with and exhaust,

can close or adjust discharge mouth to change wind effect.

Shelf

2pcs

Timing range

1-9999mins


PRODUCT DISPLAY

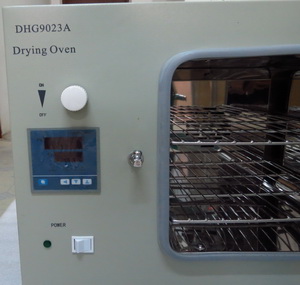

Mesh stainless steel net shelf is good for air circulation   Customized power plug Control panel for blast oven

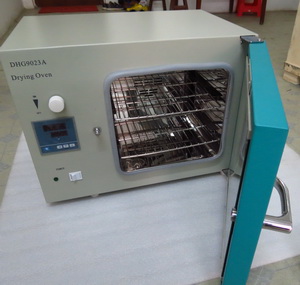

Forced air drying oven
