DZF-6050 Vacuum Drying Oven

The DZF-6050 Vacuum Drying Oven Is mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.



53L 250°C DZF-6050 Vacuum Drying Oven With Optional Vacuum Pump


SPECIFICATIONS



1 The DZF-6050Vacuum Drying OvenIs mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.

2 The DZF-6050Vacuum Drying Ovenfor lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.

3 Use DZF-6050Vacuum drying ovenfor material heating drying under vacuum states has advantages :

   3.1 Can reduce the drying temperature

   3.2 Avoid some objects heating to oxidation

   3.3 Avoid heating air to kill living cells

   3.4 No dust damage


Model

DZF-6050 Vacuum Drying Oven    TOB-DZF-6050

Source voltage

110VAC  or  220VAC +/-10% selectable

Power

1400W

Warranty

One Year Limited Manufacture Warranty with Life Time Support

Temperature range

RT+10-250℃

Temperature fluctuation

±0.5℃

Vacuum degree

-0.1MPa

Inner box size(L*W*H)

415*345*370mm

Dimension(L*W*H)

710*560*550mm

Package size

650*850*700mm

Temperature controller

1 High precision microcomputer temperature controller,

accurate temperature control

2 Working temperature can be set and working time can be set for 0-9999min.

3 When time reach, sound alarm, and when any error, also alarm. function

Inner box material

304 stainless steel

Outside shell material

High quality cold-rolled steel plate electrostatic spray

Box door

Toughened Bulletproof double glass door

Safety device

With over temperature protection, grounding etc

Shelf

2pcs

1 Solid stainless steel shelf, guarantee the oven temperature

2 Mesh stainless steel shelf can be also chosen

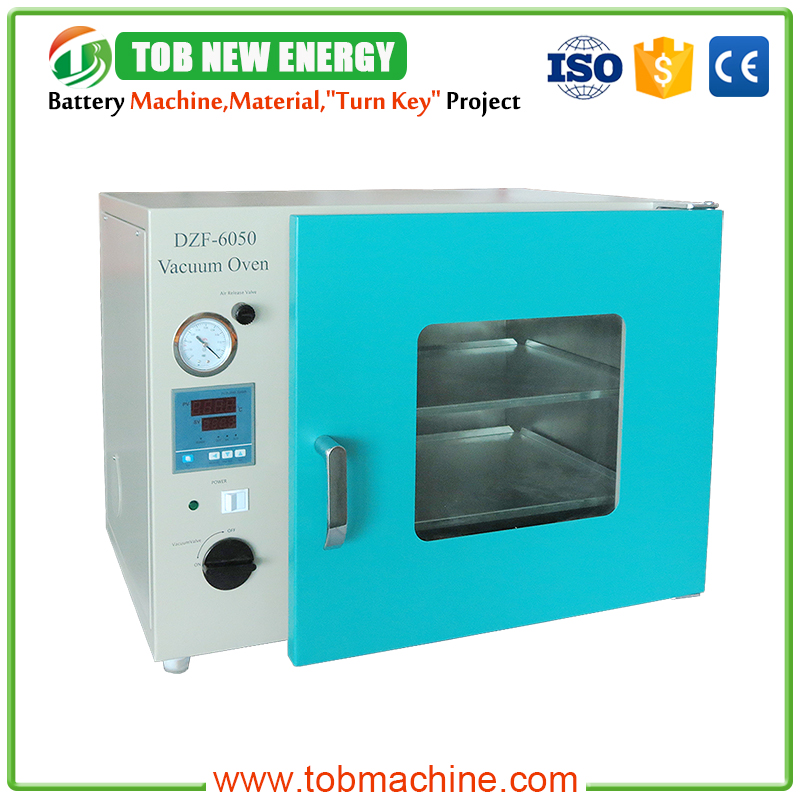

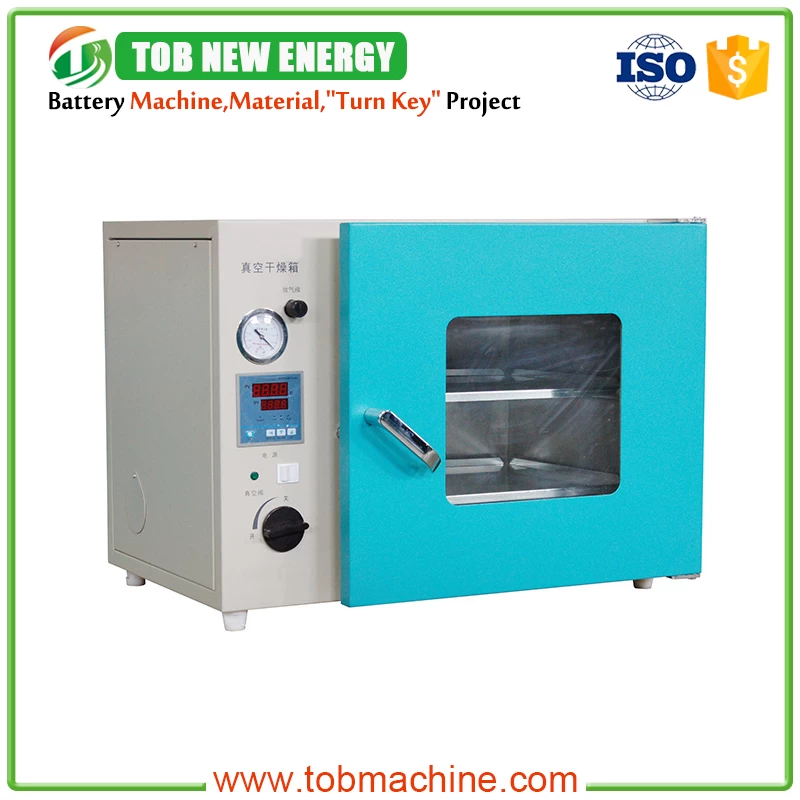

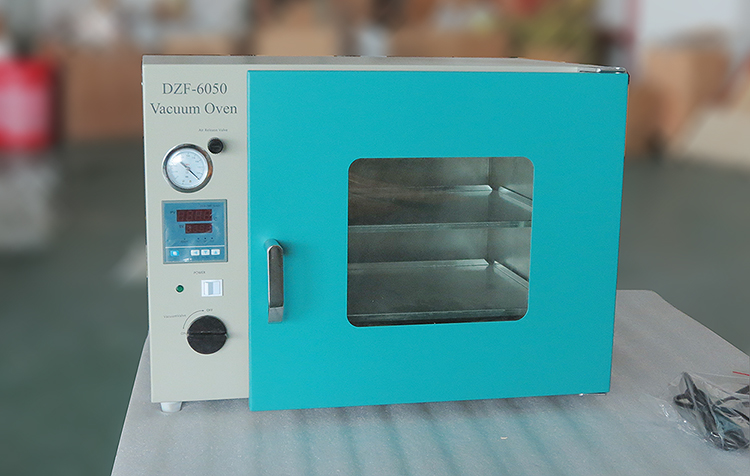

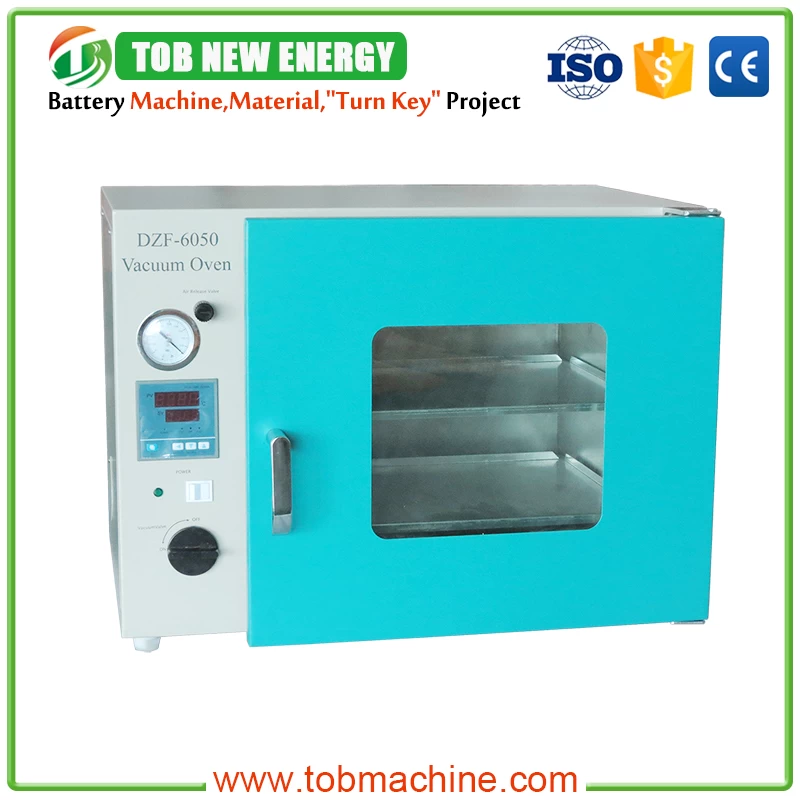

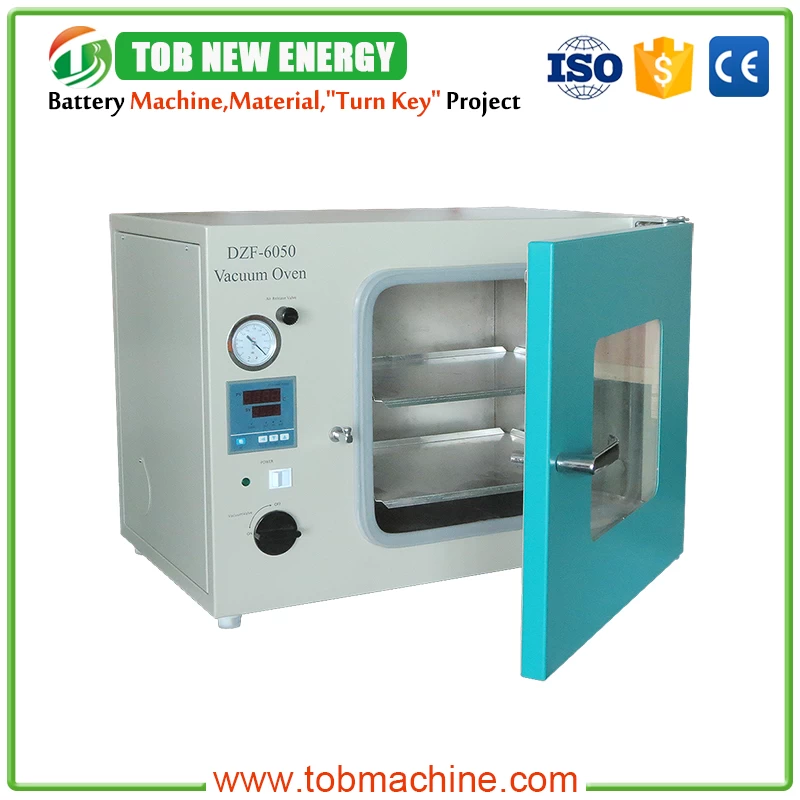

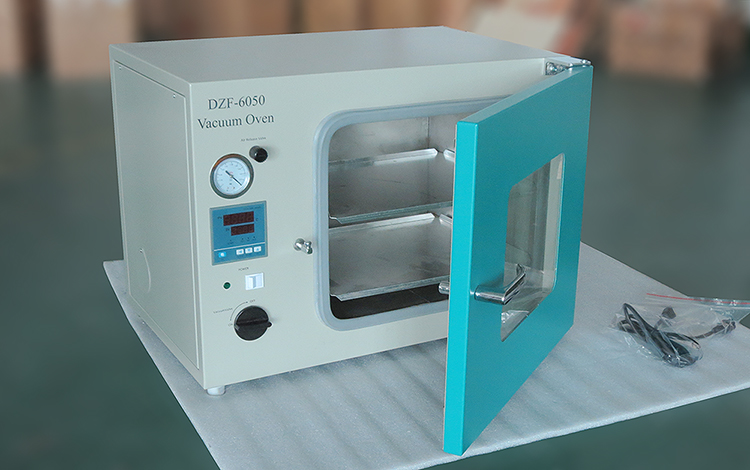

PRODUCT DISPLAY



vacuum oven

small vacuum oven

vaccuum oven with pump

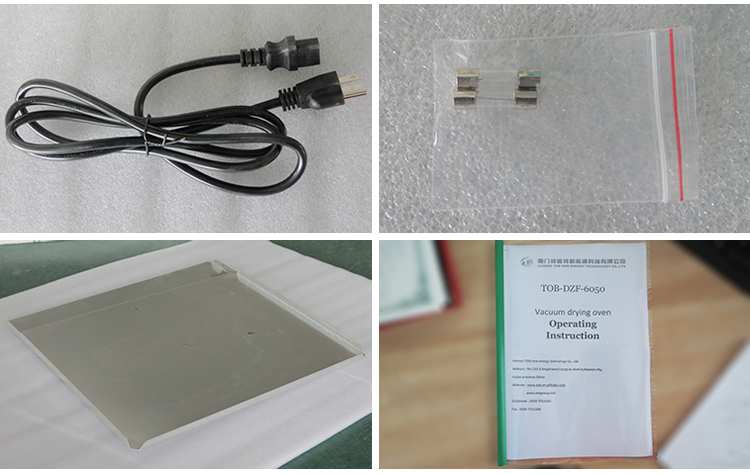

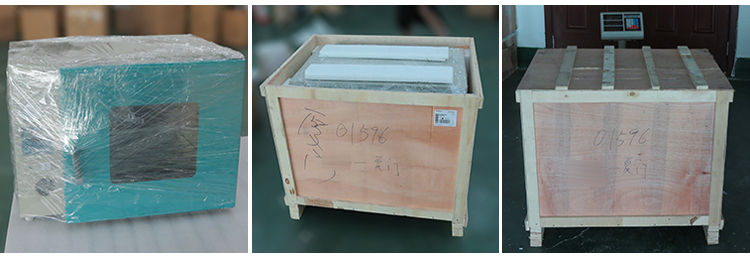

PACKAGE





oven vaccum
