EI Power Supply Encapsulated Transformer with Output Power 50.0VA to 70.0VA

PCB mount EI type encapsulated transformers with output power: 50.0 VA – 70.0 VA. Low frequency encapsulated transformer. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features.  Self-extinguishing cast housing and sealing material. Per item tested quality with certificate.



MCT specialized in manufacturing various electronic encapsulated transformers, custom made and OEM also available!


Quick Details

Part No: EI78 50.0 VA – 70.0 VA

Brand name: MCT

Output Power up to 70.0 VA

Custom made: Available

Temperature class ta 70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name:  EI Power Supply Encapsulated Transformer with Output Power 50.0VA to 70.0VA

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

Encapsulated Transformer with EE, EI PCB Mount, Designed to Meet Different Requirements.EE/EI Encapsulated Transformer, Encapsulated Transformer EI78 seriesHigh voltage resistance EI Electric Encapsulated Transformer


Product Part Number

Frame size/Core height

Output Power Ta 70°C/B

Height(h)

Weight

MCT EI 781/27.5mm

50.0V/A

59.0±0.5mm

1.250kg

MCT EI 782/36.5mm

60.0 V/A

68.0±0.5mm

1.500kg

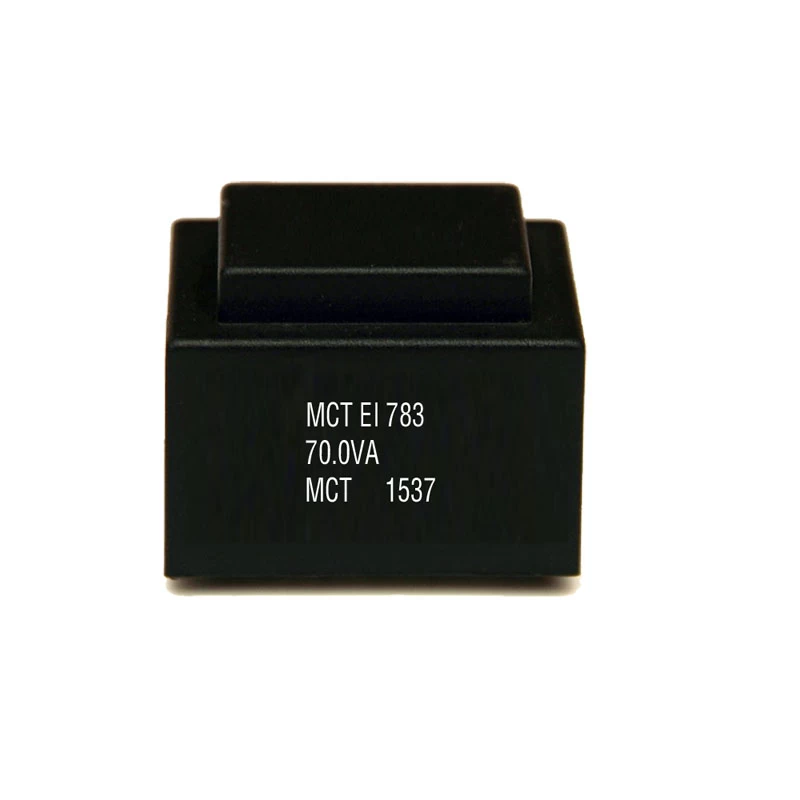

MCT EI 783/40.5mm

70.0V/A

72.0±0.5mm

1.700kg
