Hefei Mycoil Technology Co.,LTD is professional electronic encapsulated transformers manufacturer. All materials we used are environmental protected and UL certified. We accept custom made and design service.
Quick Details
|

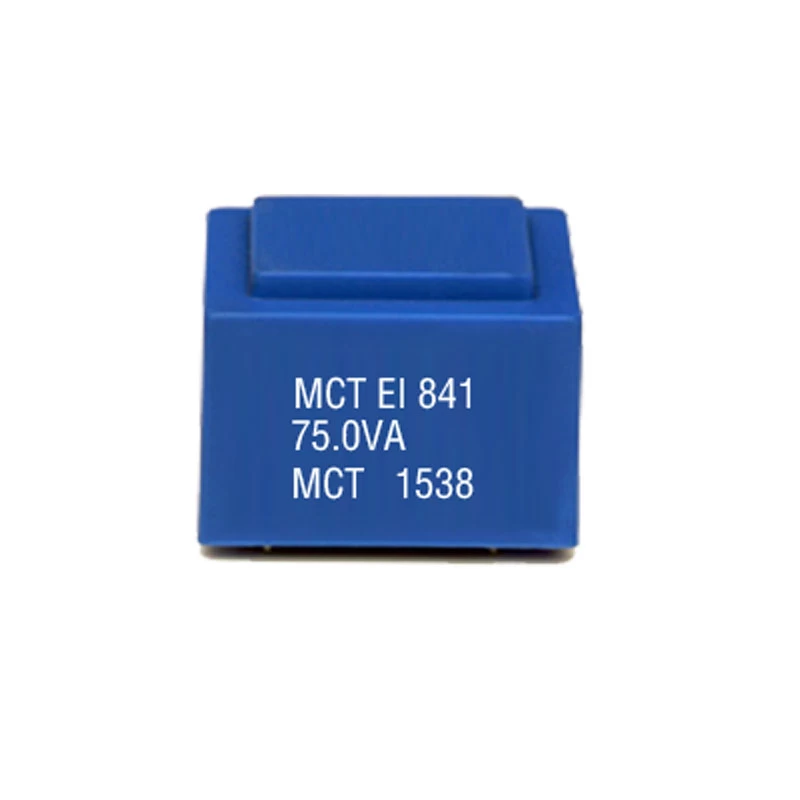

Part No: EI84 75.0 VA – 100.0 VA
|
Brand name: MCT
|
|
Output Power up to 100.0 VA
|
Custom made: Available
|
|
Temperature class ta 70 °C/B
|
Logo: Can be customized
|
|
High voltage resistance
|
Packing: Carton, can custom
|
|
Bobbin: Dual chamber windings
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: EI Type Encapsulated Power Transformers for Printed Circuit Boards
Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.
Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Part Number
|
Frame size/Core height
|
Output Power Ta 70°C/B
|
Height(h)
|
Weight
|
|
BV EI 841.../29.5mm
|
75.0V/A
|
38.5±0.5mm
|
1.600kg
|
|
BV EI 842.../43.5mm
|
100.0 V/A
|
44.5±0.5mm
|
2.100kg
|

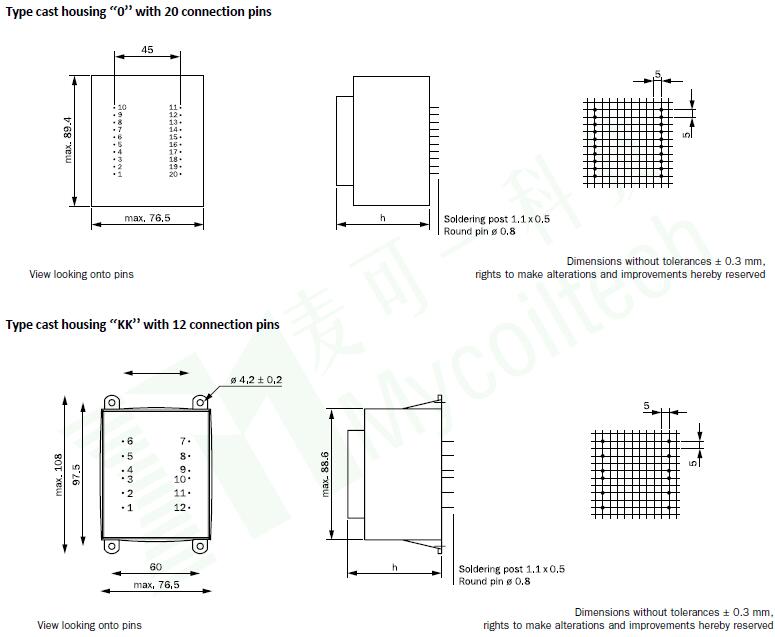

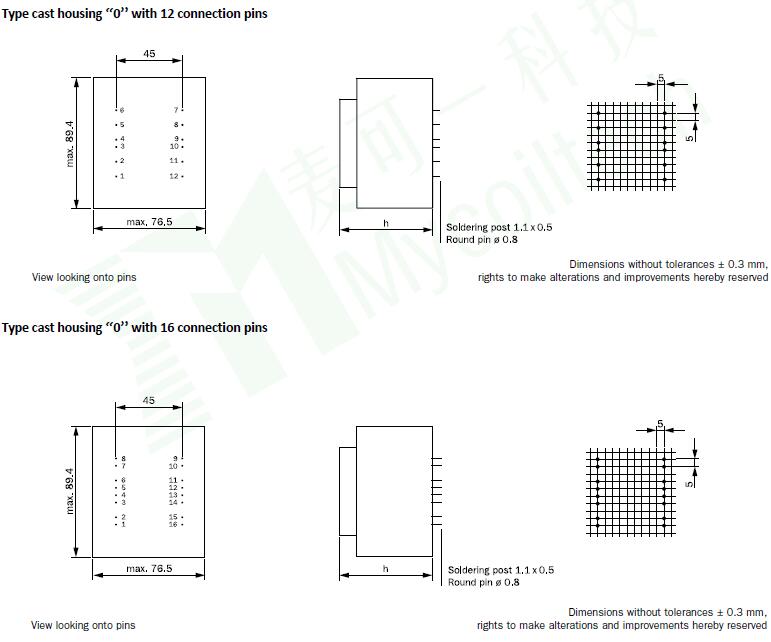

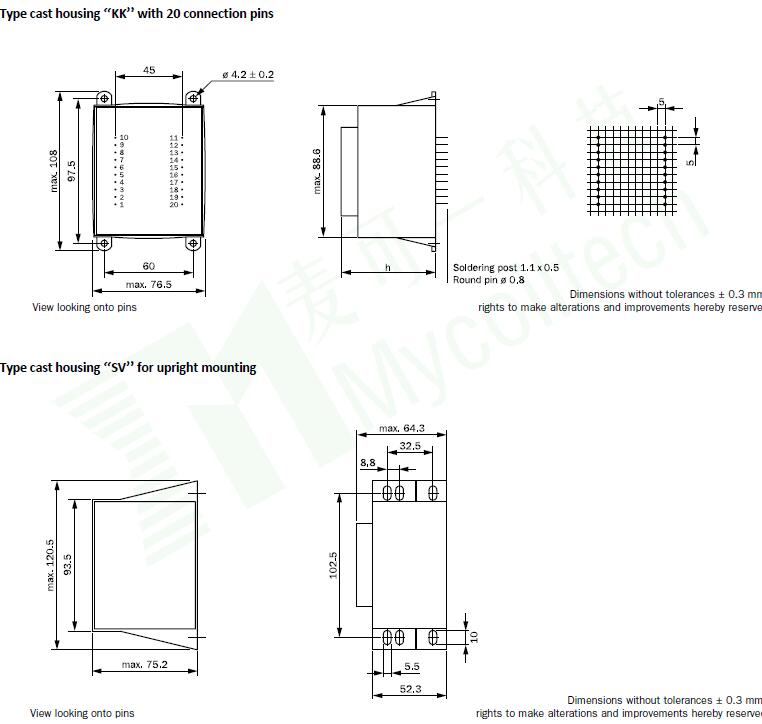

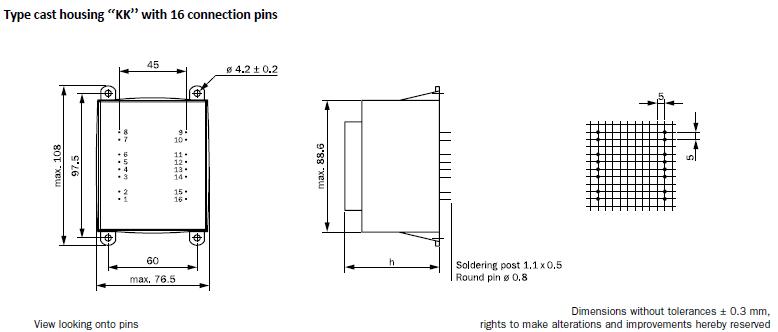

Product Specification
If you have any request, please contact us, we will give you fast reply.
