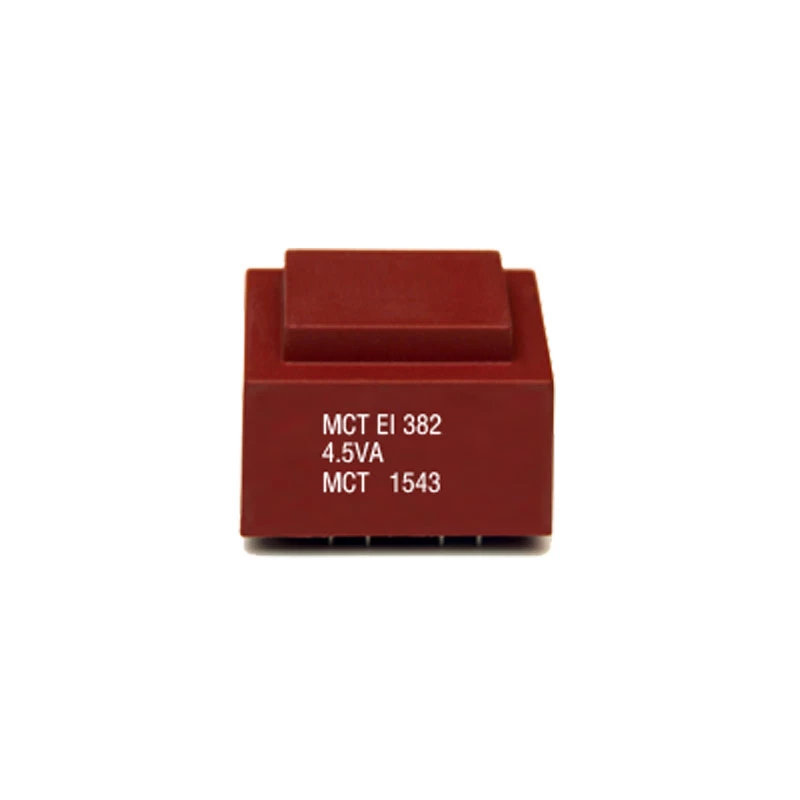

EI38 Encapsulated Electronic Transformer with 4.5VA Output Power

EI38 Printed-Circuit-Board encapsulated electronic transformer. Inherently short-circuit proof, no load power loss. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.




We are ISO9001 certification factory, we are skilled at manufacturing various encapsulated electronic transformers, such as EE encapsulated electronic transformers, EI encapsulated electronic transformers, etc. All encapsulated electronic transformers accept custom design and OEM service.


Quick Details

Part No: EI38 4.5VA

Brand name: MCT

Primary voltages from 12 V to 250 V

Custom made: Available

Output Power up to 4.5VA

Logo: Can be customized

Temperature class ta 70 °C/B

Packing: Carton, can custom

Bobbin type: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: EI38 Encapsulated Electronic Transformer with 4.5VA Output Power

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

Electronic encapsulated transformer with 4.5VA output power


Product Part Number

Frame size/Core height

Output Power

Ta 70°C/B

Height(h)

Weight

Packaging unit

MCT EI 382/13.6 mm

4.5V/A

28.1mm

0.150g

32/40 pieces*


1.6 VA ta 70 °C. Frame size/Core height: MCT EI 382 /13.6 mm Inherently short-circuit proof, no load power loss, type. 1.5 W

Order No.

Primary

Voltage V

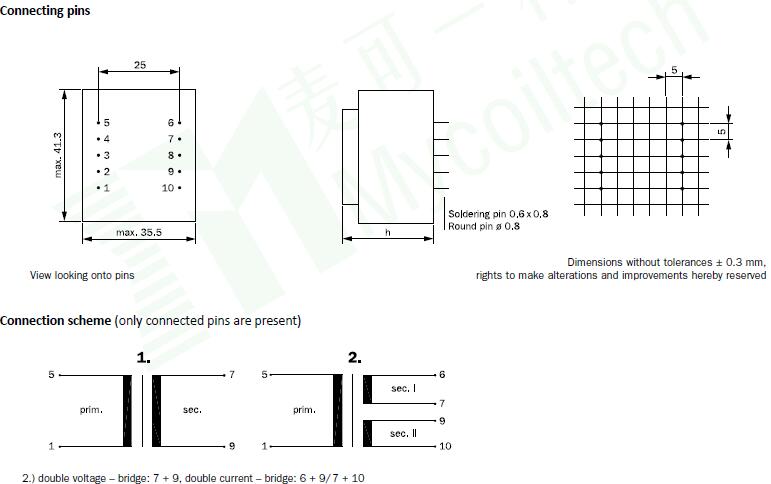

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 382 1185

230

1-5

1×6

750

7-9

1×9.7

1

MCT EI 382 1186

230

1-5

2×6

375

6-7/9-10

2×9.2

2

MCT EI 382 1187

230

1-5

1×7.5

600

7-9

1×10.6

1

MCT EI 382 1188

230

1-5

2×7.5

300

6-7/9-10

2×11.0

2

MCT EI 382 1189

230

1-5

1×9

500

7-9

1×13.0

1

MCT EI 382 1190

230

1-5

2×9

250

6-7/9-10

2×13.0

2

MCT EI 382 1191

230

1-5

1×12

375

7-9

1×17.0

1

MCT EI 382 1192

230

1-5

2×12

187

6-7/9-10

2×18.4

2

MCT EI 382 1193

230

1-5

1×15

300

7-9

1×20.8

1

MCT EI 382 1194

230

1-5

2×15

150

6-7/9-10

2×21.2

2

MCT EI 382 1195

230

1-5

1×18

250

7-9

1×24.4

1

MCT EI 382 1196

230

1-5

2×18

125

6-7/9-10

2×24.9

2

MCT EI 382 1267

230

1-5

1×21

215

7-9

1×29.0

1

MCT EI 382 1197

230

1-5

1×24

187

7-9

1×33.5

1
