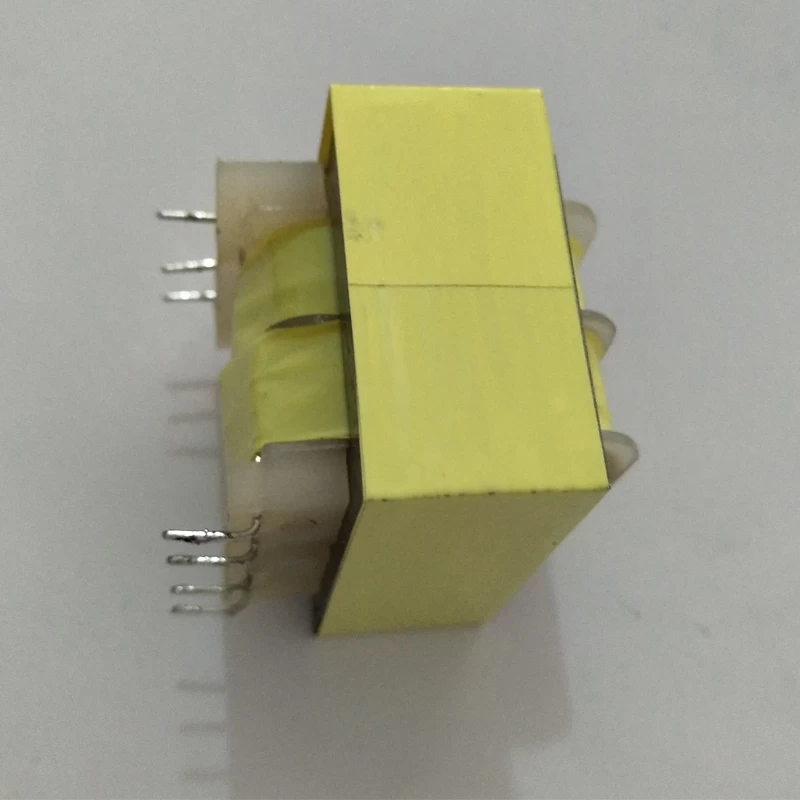

EI41 PCB Mounting Current Voltage Low Frequency Transformer 6.0VA

Split bobbin laminated transformer EI41 6VA. EI low frequency power transformers are widely used in small type electronic appliances,such as air-conditioner, VCD,UPS power supply, etc. No crossover between primary/secondary winding leads. Vacuum impregnated - withstands board washing.



We produce and design various low frequency transformers, EI41 laminated transformer 6.0VA series, our engineers are very good at designing the transformer products according to customer's need., if you need samples for testing, we can provide for you.


Quick Details

Part No: EI41 Laminated transformers 6.0VA Series

Brand name: MCT

High (2500V) isolation2500VRMS HIPOT

Custom made: Available

Non-concentric design - eliminates ESS

Logo: Can be customized

High insulation performance

Packing: Carton,can custom

Available in single or dual primary

OEM: Available

Certification: ISO9001,ROHS,CE

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: EI41 PCB Mounting Current Voltage Low Frequency Transformer 6.0VA

Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.

Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specifications

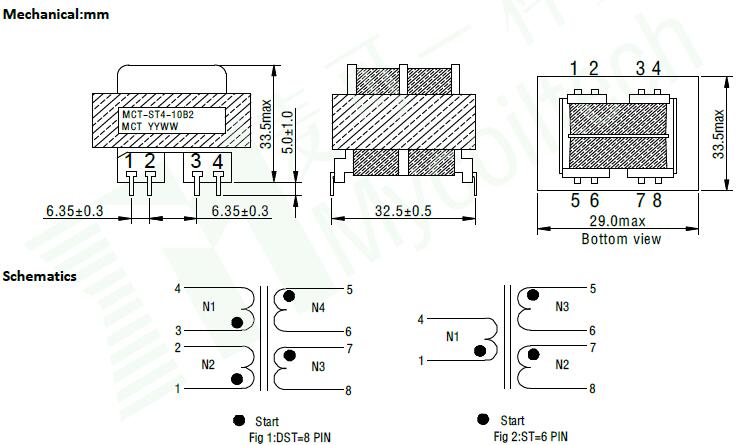

EI41 PCB mount transformer laminated core transformer

MCT Part No.

115V-6Pin

MCT Part No.

115V/230V-8Pin

Secondary RMS Rating

Series

Parallel

MCT-ST3-10B1

MCT-DST3-10B1

10V C.T. @ 0.25A

5V @ 0.5A

MCT-ST3-12B5

MCT-DST3-12B5

12.6V C.T. @ 0.2A

6.3V @ 0.4A

MCT-ST3-16B9

MCT-DST3-16B9

16V C.T.@ 0.15A

8V @ 0.3A

MCT-ST3-20B13

MCT-DST3-20B13

20V C.T. @ 0.12A

10V @ 0.24A

MCT-ST3-24B17

MCT-DST3-24B17

24V C.T. @ 0.1A

12V @ 0.2A

MCT-ST3-28B21

MCT-DST3-28B21

28V C.T. @ 0.085A

14V @ 0.17A

MCT-ST3-36B25

MCT-DST3-36B25

36V C.T. @ 0.065A

18V @ 0.13A

MCT-ST3-48B29

MCT-DST3-48B29

48V C.T. @ 0.05A

24V @ 0.1A

MCT-ST3-56B33

MCT-DST3-56B33

56V C.T. @ 0.045A

28V @ 0.09A

MCT-ST3-120B37

MCT-DST3-120B37

120V C.T. @ 0.02A

60V @ 0.04A
