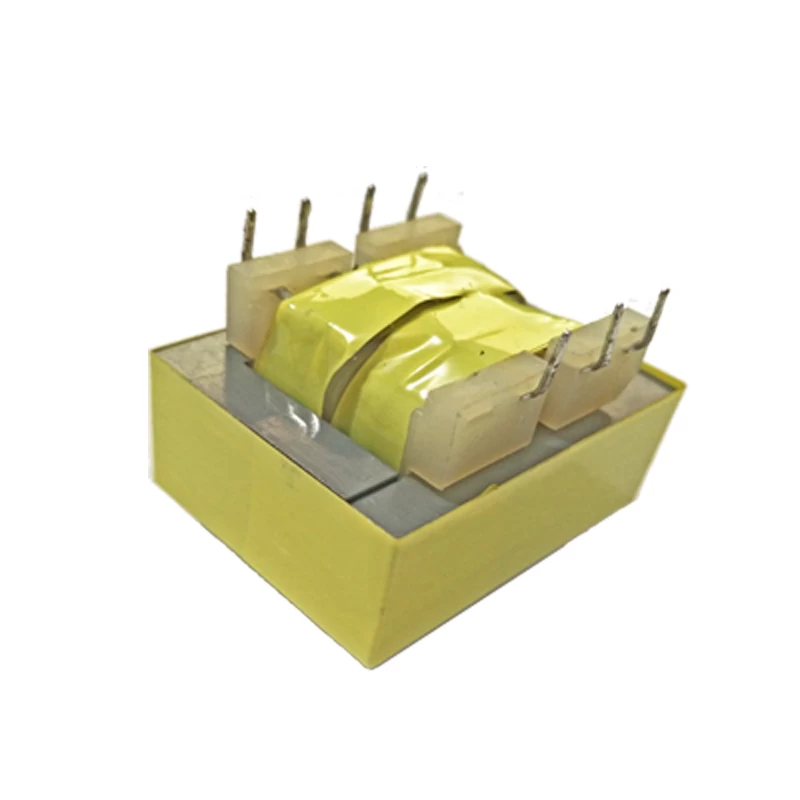

EI47 Open-Style Laminated Core Low Frequency Transformer 12.0VA

EI47 laminated core transformer 12.0VA. Low frequency transformer. Rugged construction - no additional mounting hardware, universal design, fits industry-standard footprints. Low Frequency, open-style laminated, split bobbin,  horizontal plug-in series.



Good safety and reliability EI47 laminated transformer for PCB mounting, universal design, fits industry-standard footprints. Available in single or dual primary, if you are interested in our products, welcome to contact us.


Quick Details

Part No: EI47 Laminated transformers 12.0VA Series

Brand name: MCT

High (2500V) isolation2500VRMS HIPOT

Custom made: Available

Non-concentric design - eliminates ESS

Logo: Can be customized

High insulation performance

Packing: Carton,can custom

Available in single or dual primary

OEM: Available

Certification: ISO9001,ROHS,CE

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: EI47 Open-Style Laminated Core Low Frequency Transformer 12.0VA

Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.

Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

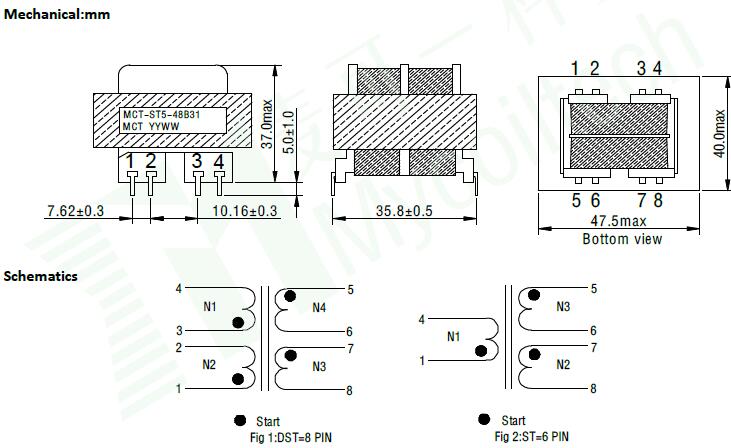

Product Specifications

PCB mounting EI type lamination transformer

MCT Part No.

115V-6Pin

MCT Part No.

115V/230V-8Pin

Secondary RMS Rating

Series

Parallel

MCT-ST5-10B3

MCT-DST5-10B3

10V C.T. @ 1.2A

5V @ 2.4A

MCT-ST5-12B7

MCT-DST5-12B7

12.6V C.T. @ 1.0A

6.3V @ 2.0A

MCT-ST5-16B11

MCT-DST5-16B11

16V C.T.@ 0.8A

8V @ 1.6A

MCT-ST5-20B15

MCT-DST5-20B15

20V C.T. @ 0.6A

10V @ 1.2A

MCT-ST5-24B19

MCT-DST5-24B19

24V C.T. @ 0.5A

12V @ 1.0A

MCT-ST5-28B23

MCT-DST5-28B23

28V C.T. @ 0.42A

14V @ 0.84A

MCT-ST5-36B27

MCT-DST5-36B27

36V C.T. @ 0.35A

18V @ 0.7A

MCT-ST5-48B31

MCT-DST5-48B31

48V C.T. @ 0.25A

24V @ 0.5A

MCT-ST5-56B35

MCT-DST5-56B35

56V C.T. @ 0.22A

28V @ 0.44A

MCT-ST5-120B39

MCT-DST5-120B39

120V C.T. @ 0.1A

60V @ 0.2A
