Best selling EI laminated low frequency transformer, high quality and competitive price, fast delivery time and no MOQ limited, we have quality control department, all transformers we produced are double tested, if you have any requests, welcome to contact us.
Quick Details
|
Part No: EI57 Laminated transformers 20.0VA Series
|
Brand name: MCT
|
|
High (2500V) isolation; 2500VRMS HIPOT
|
Custom made: Available
|
|
Non-concentric design - eliminates ESS
|
Logo: Can be customized
|
|
High insulation performance
|
Packing: Carton,can custom
|
|
Available in single or dual primary
|
OEM: Available
|
|
Certification: ISO9001,ROHS,CE
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
MOQ: Any quantity
|
Part Information

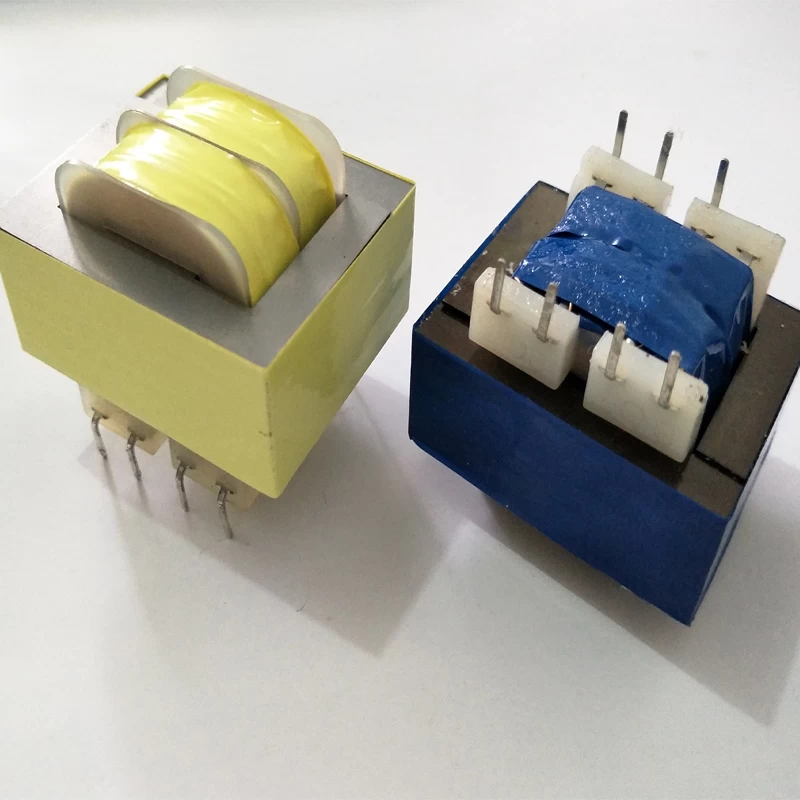

Product Name: EI57 PCB Mount Low Frequency Laminated Transformer Output Power 20.0VA
Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.
Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

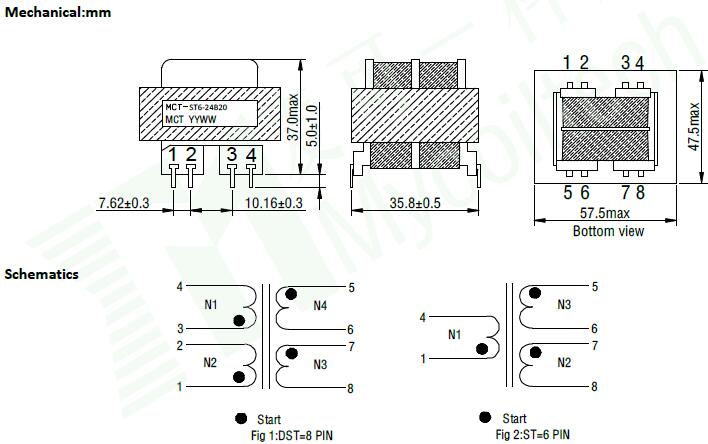

Product Specifications
|
MCT Part No.
115V-6Pin
|
MCT Part No.
115V/230V-8Pin
|
Secondary RMS Rating
|
|
Series
|
Parallel
|
|
MCT-ST6-10B4
|
MCT-DST6-10B4
|
10V C.T. @ 2A
|
5V @ 4A
|
|
MCT-ST6-12B8
|
MCT-DST6-12B8
|
12.6V C.T. @ 1.6A
|
6.3V @ 3.2A
|
|
MCT-ST6-16B12
|
MCT-DST6-16B12
|
16V C.T.@ 1.25A
|
8V @ 2.5A
|
|
MCT-ST6-20B16
|
MCT-DST6-20B16
|
20V C.T. @ 1A
|
10V @ 2A
|
|
MCT-ST6-24B20
|
MCT-DST6-24B20
|
24V C.T. @ 0.8A
|
12V @ 1.6A
|
|
MCT-ST6-28B24
|
MCT-DST6-28B24
|
28V C.T. @ 0.7A
|
14V @ 1.4A
|
|
MCT-ST6-36B28
|
MCT-DST6-36B28
|
36V C.T. @ 0.55A
|
18V @ 1.1A
|
|
MCT-ST6-48B32
|
MCT-DST6-48B32
|
48V C.T. @ 0.4A
|
24V @ 0.8A
|
|
MCT-ST6-56B36
|
MCT-DST6-56B36
|
56V C.T. @ 0.35A
|
28V @ 0.7A
|
|
MCT-ST6-120B40
|
MCT-DST6-120B40
|
120V C.T. @ 0.16A
|
60V @ 0.32A
|
