Electric Coin Cell Crimping And Disassembling Tool For Button Battery 20xx System
SPECIFICATIONS
TOB-MSK-160D is a CE Certified electric coin cell crimper and disassembling tool for the CR20XX series coin cells such as CR2016, CR2025, and CR2032. It is an ideal tool designed for operating both within and outside of a glove box.
|
Model
|
Electric Crimping and Disassemble Machine for Coin Cell
TOB-MSK-160D
|
|
Voltage
|
110 - 240V AC 50/60Hz
|
|
Power
|
DC 24V motor,15W
|
|
Die Set & Compatibility
|
1.Assembling and disassembling dies for CR2032, CR2025, & CR2016
coin cells.
2. Please read operation manual to see how to replace die from
crimping to disassembling.
|
|
Structure
|
Heavy Duty Steel Platform
|
|
Product Dimensions
|
220mm(L) x 130mm(W) x 430mm(H)
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Maintenance Notes
|
Electrolytes are highly corrosive materials, and therefore the
die set must be cleaned with alcohol after each use to
avoid corrosion and to maintain the equipment's integrity.
|
|
Optional
|
Protection shield/enclosure with the implementation of
the safety interlock
|
|
Net Weight
|
28 kg
|

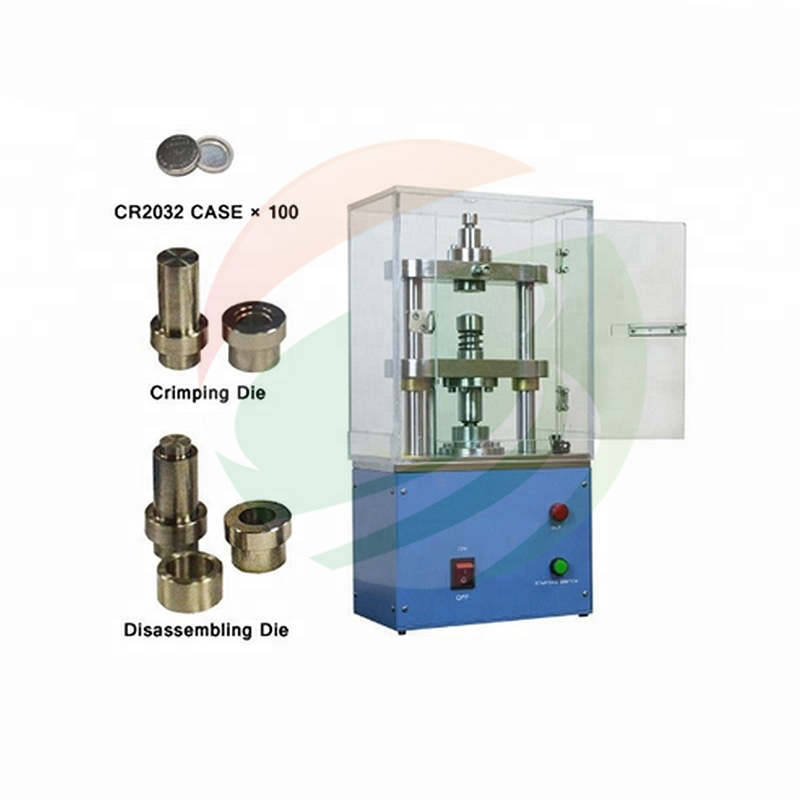

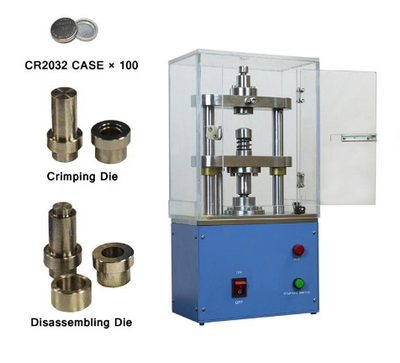

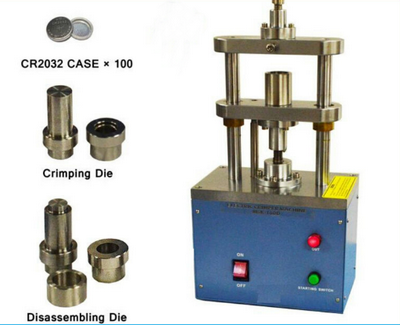

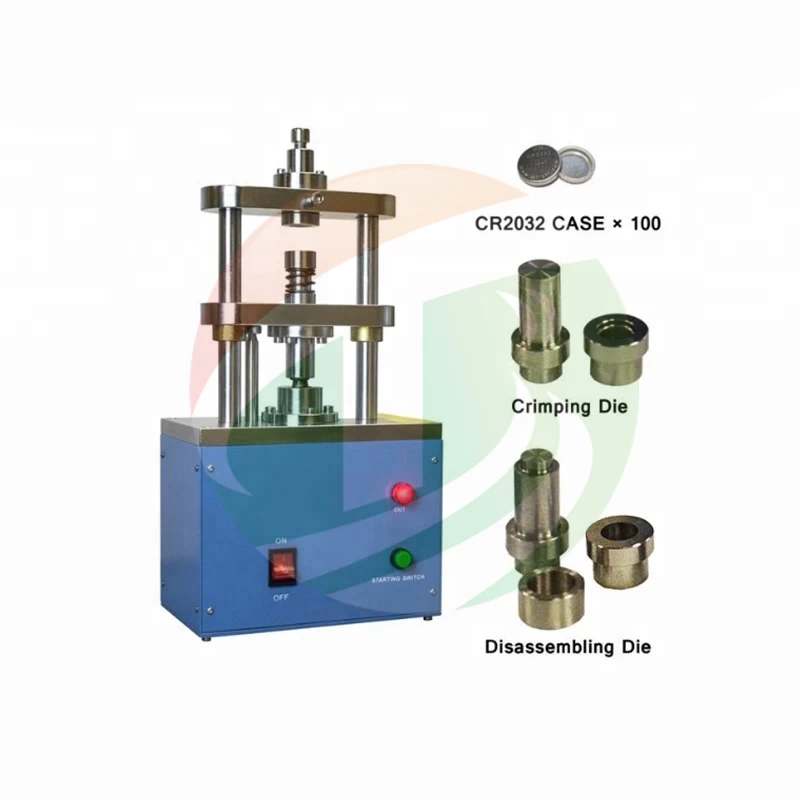

PRODUCT DISPLAY
