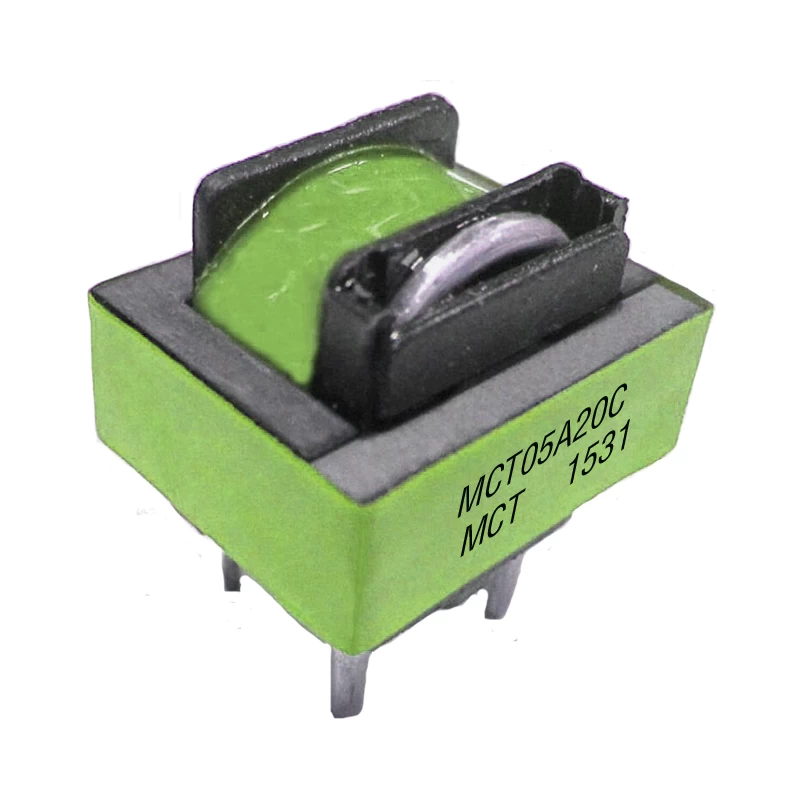

High Precision Current Transformers Current Ratio 1000:1 for PCB Mount

20A precision current transformer. High temperature and corrosion for 50/60Hz. Epoxy risen-perfect isolation and resistance to strong impact. Offer a plug in solution for PCB mounting. High permeability permalloy core.



Professional electronic components manufacture, our factory is made up of 500 people, huge output can be finished every day. If you have any requests of precision current transformers, welcome contact us! We accept small order, we can make tooling to meet customer's different specifications.

High precision current transformers are our new designing and hot selling products, 2OA precision current transformer has excellent linear performance, well-insulation, isolated withstand voltage: 3000V. Mainly used in current measurements, power meter, current control circuit. all materials are environmental protected.



Quick Details

Part No: MCT05A20 Precision Current Transformer



Brand name: MCT

Operating temperature-40°C~50°C



Custom made: Available

Storage temperature:-40°C~70°C



Logo: Can be customized

Relative humidity:10~95%



Packing: Carton, can custom

Rated input current:20A Materials UL94V-0.



MOQ: Any quantity

Certification: ISO9001,ROHS,CE



OEM: Available

Lead time: 25 days after payment



Shipping: Air, Ship, etc



Part Information

Product Name: High Precision Current Transformers Current Ratio 1000:1 for PCB Mount

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Power Systems. Measuring instruments. Relay protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected and UL certified. We accept custom made and design service.



Product Specification

MCT PN

Current ratio

Accuracy

Linearity

Max output Voltage(60Hz)

MCT05A20A

680:1

±2%

1%

2.2Vrms

MCT05A20B

1000:1

±2%

1%

3.2Vrms

MCT05A20C

1500:1

±2%

1%

4.7Vrms

MCT05A20D

2500:1

±2%

1%

7.9Vrms

MCT05A20E

680:1

±5%

5%

2.2Vrms

MCT05A20F

1000:1

±5%

5%

3.2Vrms

MCT05A20G

1500:1

±5%

5%

4.7Vrms

MCT05A20H

2500:1

±5%

5%

7.9Vrms

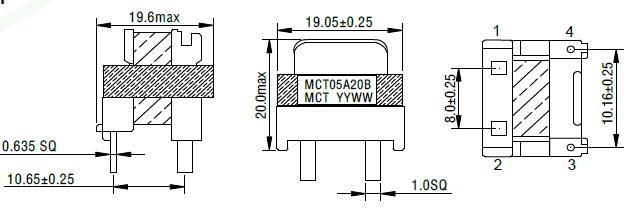

Dimension:mm

Current transformer CT series high precision well insulation

Notification

Power supply is needed when operational amplifier is added to the transformer. ±15V,±12V or according to the actual operation.

OP07 series of operational amplifier is recommended.

The fixed temperature coefficient of resistance in the circuit must be over 50PPM.

Welcome customized type requirements.


If you have any questions, please contact us or leaving your comments, we will give you fast reply.
