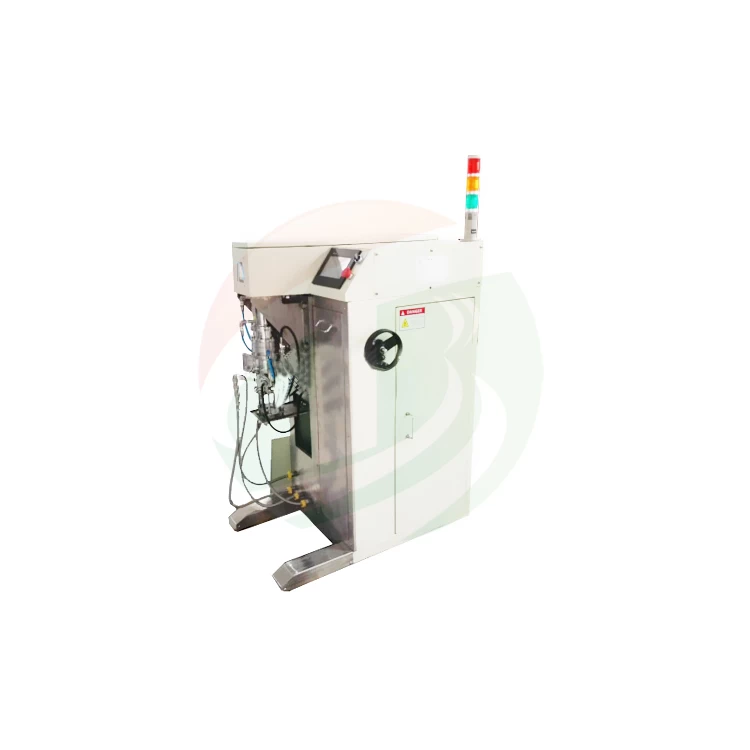

High Speed Mixer For Lab Nano Materials Mixing with Speed 13000-18400rpm
SPECIFICATIONS
High speed mixing machine used for lithium battery producing, not only reduce cost for large battery factory, and it can also get more better mixing performance for improve battery quality.
1 Evenly dispersed nano materials, eliminate the reunion
2 High viscosity reproducibility and consistency
3 High viscosity stability and settlement of layered, 10 hours without change
4 The stability of high solid content
5 High electrical conductivity, conductive agent dispersed evenly
|
Model
|
TOB-SS-56-12
|
|
Source voltage
|
AC 380v, 3 phase, 75kw
|
|
Machine capacity
|
120ml
|
|
Single batch processing
quantity
|
100ml
|
|
Continuous processing
quantity
|
200ml/min
|
|
Mixing mode
|
Stator high shear mode
|
|
Turnover number
|
13000-18400rpm,Frequency converter speed control
|
|
Mixing linear velocity
|
50m/sec
|
|
Lifting and turning
|
The handwheel manual lifting, travel 200mm*2
|
|
Mixer container
|
Down incoming container :
Flat cylinder, Inner diameter 56mm* outside diameter 77mm * height 63mm,
SUS304 Material
Upper discharging container :
Opening barrel, Inner diameter 56mm* outside diameter 77mm * height 50mm,
SUS304 Material
|
|
Warranty
|
One year limited and lifetime support
|
|
Dimension (H*W*D)
|
1370*580*950mm
|
REFERENCE PICTURES
Carbon nanotubes mixed by common mixer with reunion
Carbon nanotubes mixed by high speed mixer with good Conductive network
Mixing part
