Hydraulic Manual Coin Cell Crimping Machine

The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with adjust the sealing line and without changing the die.



Hydraulic  Coin Cell Crimping Machine : One for All Button Cells of CR2016, CR2025, & CR2032 (Optional Die CR1220, CR2325 or CR2450,AG3, AG5)



SPECIFICATIONS



1 TOB-MR-120coin cell crimperis a newly designedcoin-cell sealing machinewith lighter weight.

The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with adjust the sealing line and without changing the die.It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.

2 In addition,customers can easily replace the original die for disassembling purpose.

3 It can also be worked in glove box with smaller volume.


Machine model

Hydraulic Crimping Machine TOB-MR-120

Standard

Crimping Die

1 One set of crimping die for CR2032,CR2025,and CR2016

2 Optional die available from product option for crimping CR2325,CR2450,AG3,AG5

3 PTFE Anti-Corrosion Core prevents coin cells from being short circuited

Advantages

1 The lower die with high precision positioning ring spacing, control batteryseal height

2 The upper die is provided with a sealing cup inner screw spring mechanism,ensure in case the battery sealing clamp can not be removed,only the top screw clockwise and the button battery out.

3 By using aluminum alloy and high strength steel,

surface after the environmental protection electroplating processing will never  rust

Rocker Pressure

<6kg

Max Pressure

200kg/cm2

(The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)

Working Pressure

80-100kg/cm2

Dimension(L*W*H)

232*170*330mm

Weight

28kg

Shipping Weight

35kg

Warranty

One Year limited warranty with lifetime support



Reference Pictures

1. Adjusted sealing die for CR2016,2015,2032 coin cell

2. Optional die for other model battery and PTFE Anti-Corrosion Core


PRODUCT DISPLAY



crimping machine die

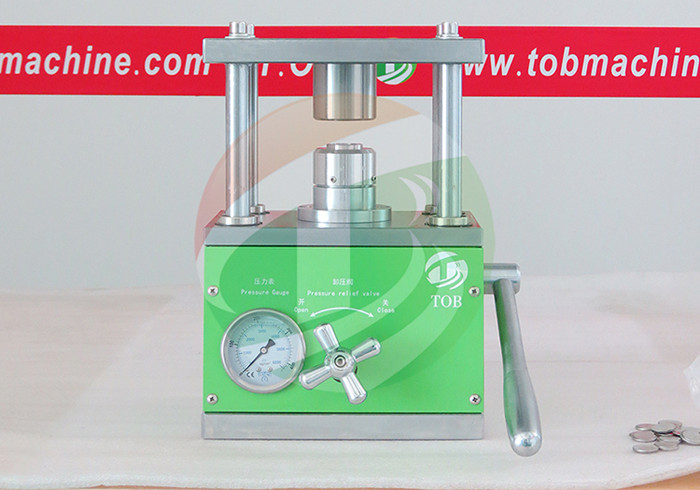

Coin cell crimping machine


PACKAGE

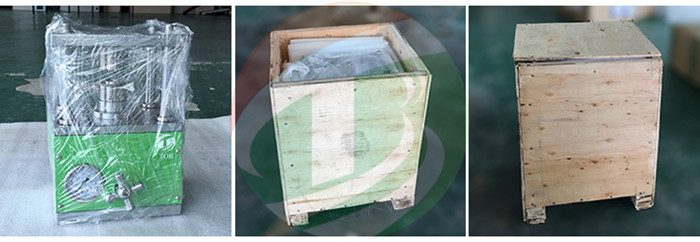

crimping machine Packing


PACKAGE LIST



Item

Qty

Hydraulic Crimping Machine TOB-MR-120

1 set

CR20XX coin cell crimping die or disassemble die

1 set

English Operating Manual

1 book

SocketHeadWrench

1 set
