Hydraulic Crimping Machine for Cylindrical Cases (Optional:32650, 26650, 18650, CR123, AA, AAA etc)
SPECIFICATIONS

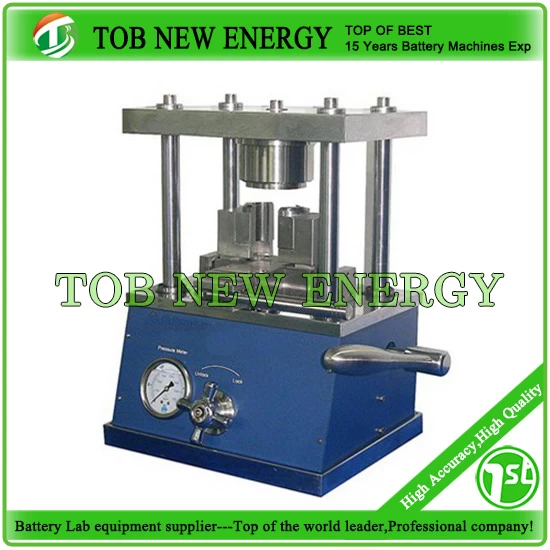

TOB-MSK-510M is acompact hydraulic crimperfor sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
|
Model
|
Hydraulic Sealing Machine TOB-MSK-510M
|
|
Driving Force
|
Manual hydraulic pressing up to 5T
|
|
Pressure Gauge
|
0-3500 psi (0-250 kg/cm^2)
|
|
Body
|
Stainless Steel
|
|
Crimping Dies
|
Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
|
|
Warranty
|
One year limited with lifetime support
|
|
Product Dimensions
|
330mm(L) x 240mm(W) x 400mm(H)
|
|
Application Notes
|
Customized die for other cylindrical cell types is available upon request
It is necessary to groove the opening end of the cylindrical case by using
the TOB-GC650 grooving machine before sealing the cap
Each type of cylinder cell can only be sealed specifically by certain model of equipment.
Please select the type of cylinder cell in the Product Options drop box to check the model
number and price for the corresponding crimping die of each cylinder cell type
|
|
Net Weight
|
26 kg (58 lbs)
|

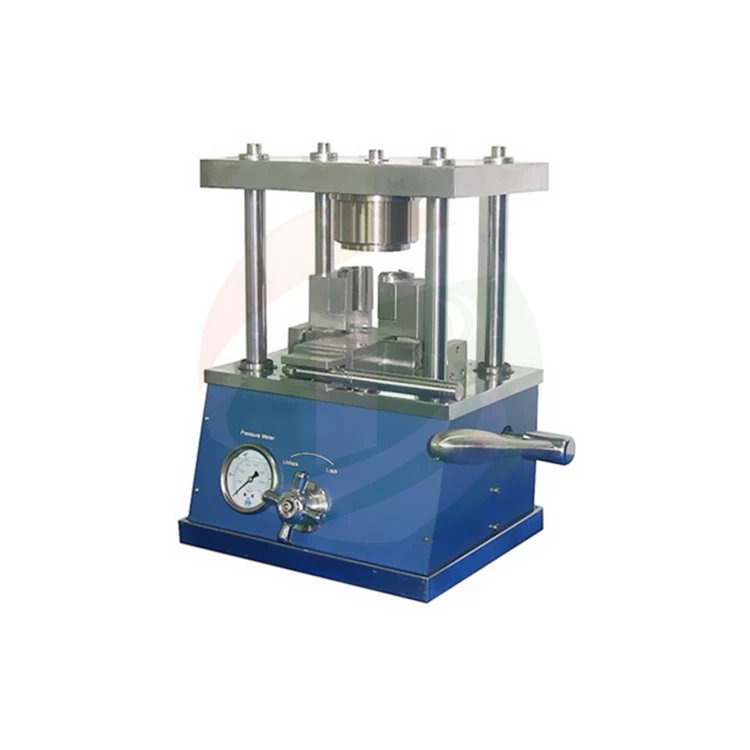

PRODUCT DISPLAY
