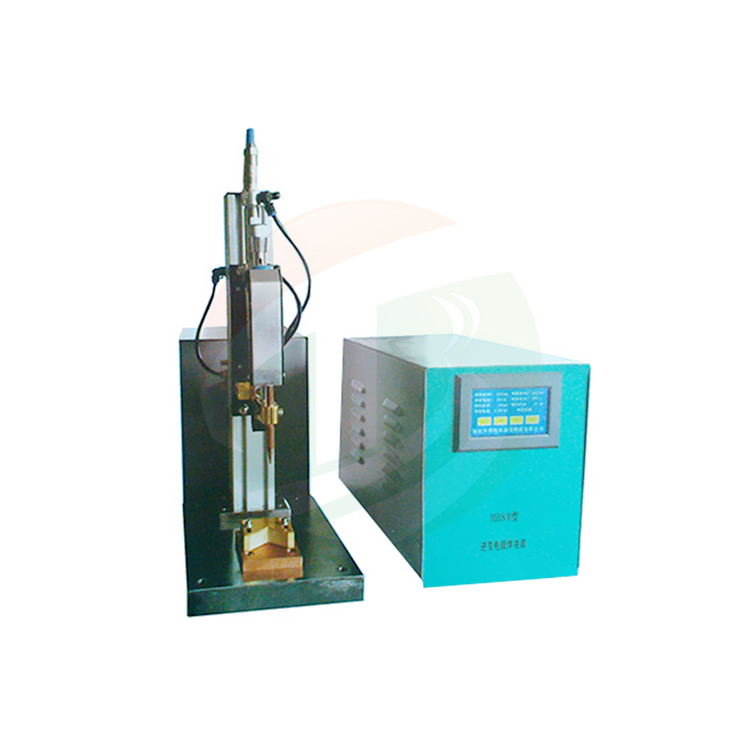

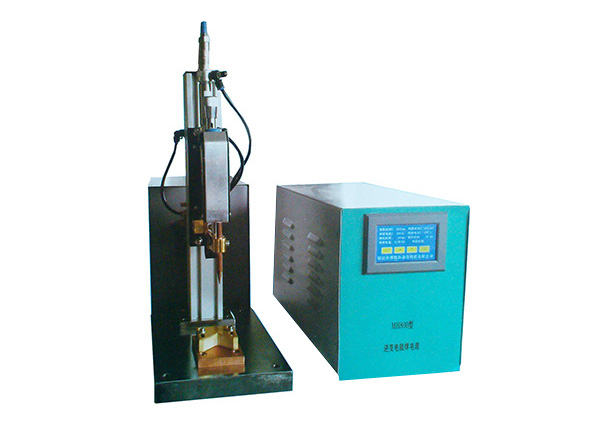

Model

TOB-BR320

Source voltage

AC110/220V, 50/60HZ

Welding current

3000A

Welding time

5-1000ms adjustable

Warranty

One year limited and lifetime support

Power

35KW

Air supply

0.5-0.7MPa

Welding ability

Single/multi-layers Ni strap or copper strap welding with

stainless steel shell bottom. Single/multi-layers Al strap welding with aluminum can bottom.

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
