Automatic laser particle size analyzer for non-metallic powder, metal powder and other kinds powder
SPECIFICATIONS
Thislaser particle size analyzer is a full automatic particle size testing instrument, with automatic testing,automatic optical calibration, automatic water (built in suction pump), automatic drainage,automatic elimination of bubbles and automatic cleaning functions.
|
Model
|
Laser particle size analyzer TOB-BT-9300ST
|
|
Power Supply
|
110V-240V selectable, Single Phase 50/60Hz
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Measuring range
|
0.1-1000um
|
|
Sampling mode
|
Built-in automatic circulating dispersing system
|
|
Repeatability error
|
<1%, (standard sample D50 error)
|
|
Accuracy error
|
<1%, (standard sample D50 error)
|
|
Measuring principle
|
Mie scattering theory
|
|
Software running environment
|
Win97
|
|
Interface mode
|
USB / RS232
|
|
Photoelectric detector
|
86EA
|
|
Ultrasonic power
|
50W
|
|
Circulating tank volume
|
500ml
|
|
Flow
|
500-2500ml/min
|
|
Source voltage
|
220V, 50/60HZ
|
|
Dimension (L*W-H)
|
640*420*400mm
|
|
Testing objects
|
Varies kinds of non-metallic powder
All kinds of metal powder
Other kinds powder
|

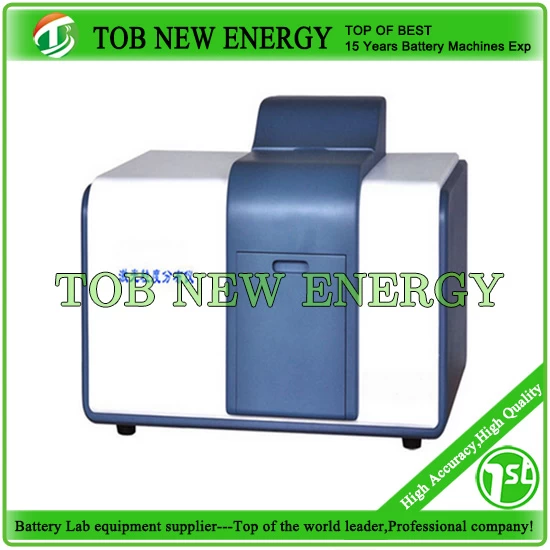

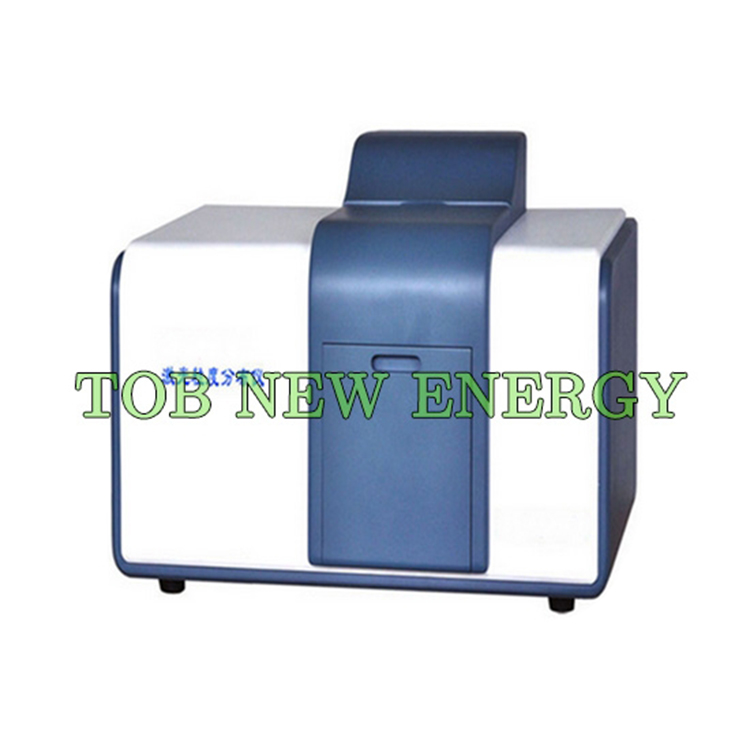

Reference Pictures
