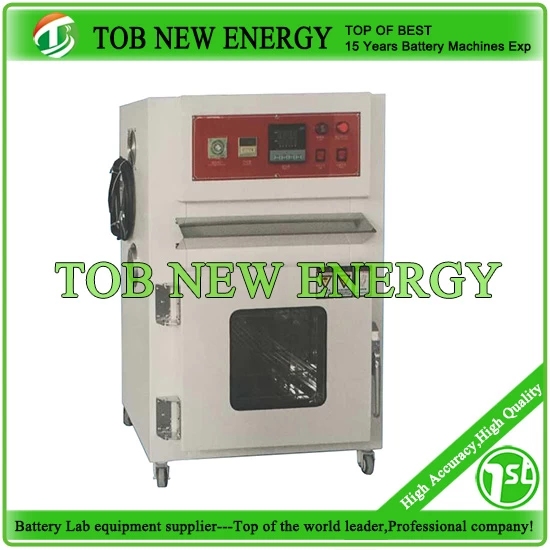

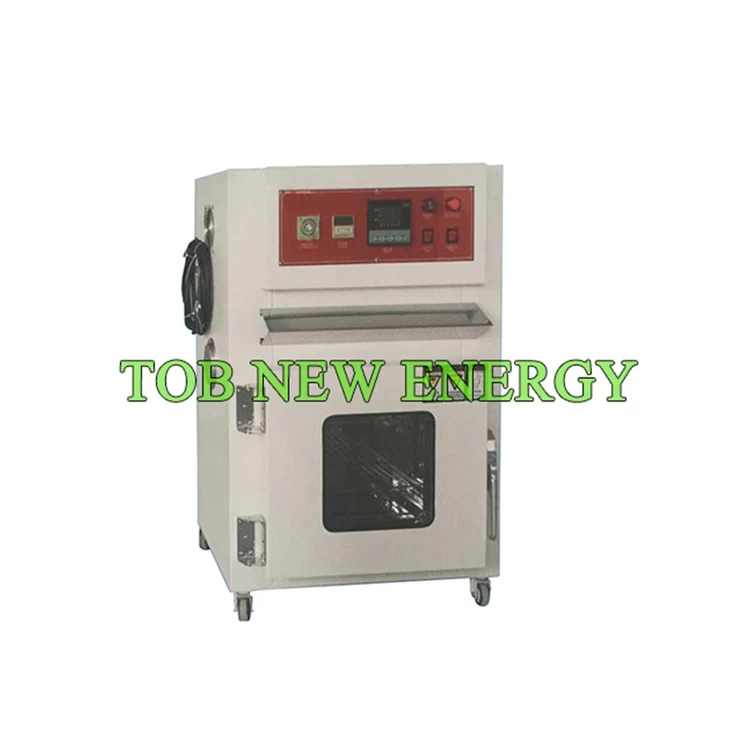

Lithium Battery Thermal Shock Chambers For lithium battery safety performance testing
SPECIFICATIONS
|
Type
|
TOB-BE-101-1A
|
TOB-BE-101-2A
|
TOB-BE-101-3A
|
TOB-BE-101-4A
|
|
Box size within
|
W450*D400*H400mm
|
W500*D500*H600mm
|
W600*D500*H900mm
|
W800*D600*H1000mm
|
|
Box size outside
|
W700*D540*H840
|
W700*D700*H1050
|
W800*D700*H1350
|
W1000*D800*H1600
|
|
Power
|
3.0KW
|
4.0KW
|
5.0KW
|
7.0KW
|
|
Power supply
|
AC 220V 50/60HZ
|
|
Box material within
|
SUS 304 Stainless steel，Corrosion resistance
|
|
Box material outside
|
SECC Steel sheet，Thickness：1.5mm
|
|
Insulation material
|
Imports of high-density glass rock wool
|
|
Temperature range
|
RT+10~200℃ Adjustable
|
|
Accuracy
|
±0.5℃
|
|
Temperature distribution
|
±2.0℃（No load）
|
|
Temperature rising rate
|
RT+10~200℃（Average 5±2℃）
|
|
Cooling way
|
Natural cooling
|
|
Current controller
|
SSR no contact Relay，Maintaining current high stability
|
|
Heating material
|
Cellular stainless steel heat pipe
|
