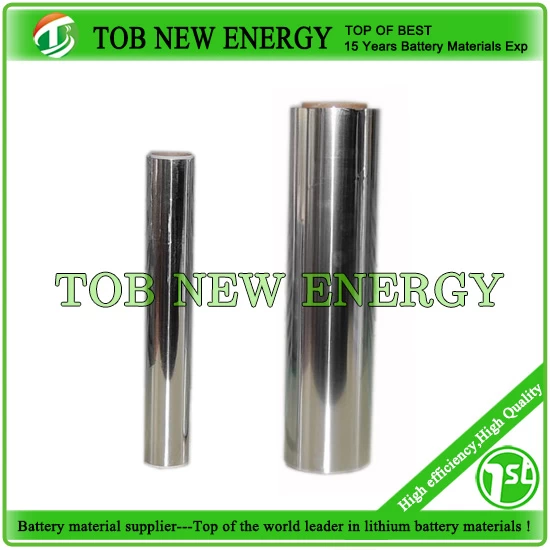

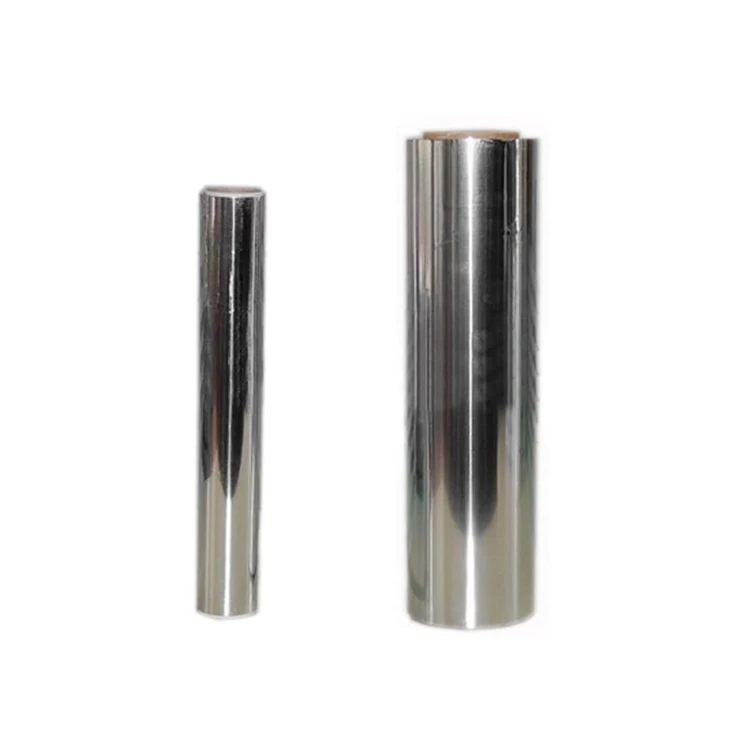

Lithium Ion Battery Aluminum Foil 16um

Aluminum Foil Paper For Lithium Battery Cathode Current Collector.



Aluminum Foil Paper For Lithium Battery Cathode Current Collector


SPECIFICATIONS



Width:300mm  Lenght: 170m Thicness:16um Mode:T-A16

Aluminum foil application for lithium ion battery cathode current collector

Width

300mm

Thickness

16±1 um

Areal density

42~46g/ m2

With transverse surface density uniformity

≤0.003 g/ 40×40 mm

The same volume of vertical surface density uniformity

≤0.03 g/ 400×40 mm

High temperature oxidation resistance (200°C*30min)

No oxidation

Connect no

<2

Chemistry content(Al)

>99.45%

Extensibility

<0.5%

Normal temperature Tensile strength

 kgf /mm2

>180

After 1200C baking 1h, Tensile strength kgf/mm2

>160
