LiMn2o4 powder for lithium ion battery TOB-130
SPECIFICATIONS
LiMn2O4 powder characteristic:
(1) High safety performance, Suitable for large capacity battery
(2) Excellent power characteristics, suitable for high power battery
(3) With abundant resources of manganese as main raw materials, the cost advantage

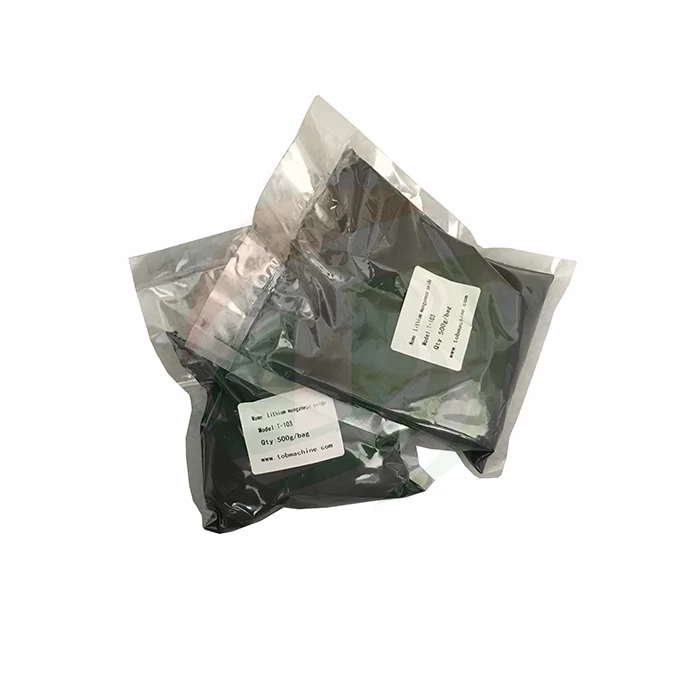

Packing:500g/bag
|
Name:
|
LiMn2O4
|
Type:
|
TOB-130
|
|
Applications
|
Suitable for high capacity square aluminum, polymer,
cylindrical lithium ion battery.
|
|
1. Chemical property
|
|
Appearance
|
Dark brown powder: Atmospheric stability
|
|
Mn (%)
|
58.0~60.0
|
Volumetry
|
|
Li (%)
|
3.5~4.5
|
ICP
|
|
Na (%)
|
≦0.3
|
ICP
|
|
Fe (%)
|
≦ 0.02
|
ICP
|
|
Gu (%)
|
≦ 0.01
|
ICP
|
|
H2O (%)
|
≦ 0.05
|
Coulometric KF Titrator
|
|
2. Physical Property
|
|
D10(um)
|
>3.0
|
Laser particle size analyzer
|
|
D50(um)
|
12.0~16.0
|
|
D90(um)
|
<40.0
|
|
PH
|
7.0~9.0
|
PH Meter
|
|
Tap density(g/m3)
|
>2.0
|
Tap density Meter
|
|
Specific area(m2/g)
|
0.50~1.00
|
Specific Area and Porosity
|
|
3. Electric Property
|
|
The first charge capacity(mAh/g)
|
>115
|
0.2C 3.0v~4.3v
|
|
The first discharge efficiency(%)
|
>85
|
|
4.Others
|
|
Packing
|
20kg/pack
|
