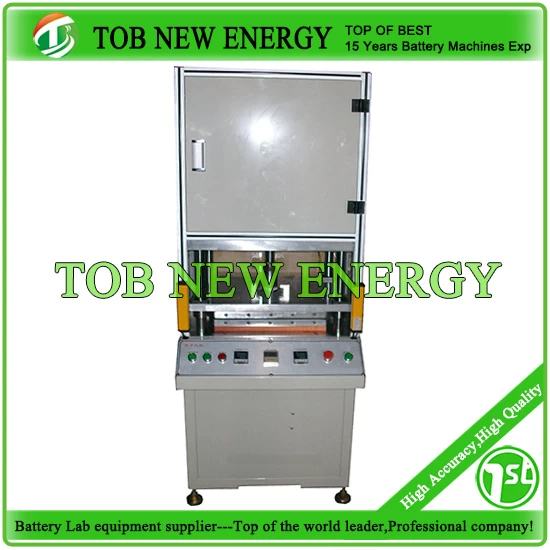

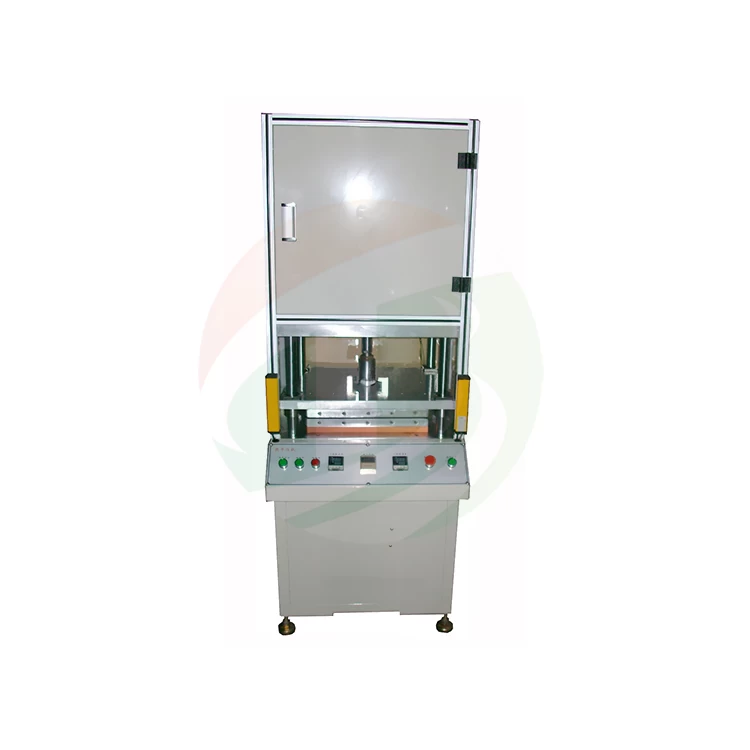

Manual Hot Press Molding Machine For Lithium Polymer Battery (LIP) Shaping
SPECIFICATIONS
1.Applicable to polymer battery core hot press.
2.Can pre-set the hot press temperature and holding time.
3.Max pressure is 5 T, adjustable
4.Import temperature controller, abnormal alarming , within error±2℃.
5.Total machine operation is safe, stable, reliable and convenient.
|
Model
|
TOB-JD-RY300
|
|
Press plate size
|
300*300mm
|
|
Pressing holding time
|
0-999s adjustable
|
|
Max press pressure
|
5T
|
|
Air supply
|
0.6-0.7MPa 20L/S
|
|
Source voltage
|
AC220V 50HZ
|
|
Control temperature
|
RT-400℃
|
|
Power
|
5.5KW
|
|
Dimension(L*W*H)
|
800*760*1900mm
|
|
Weight
|
1200kg
|
