Copper/Aluminum Mesh Metal Expanding And Flattening Machine
SPECIFICATIONS

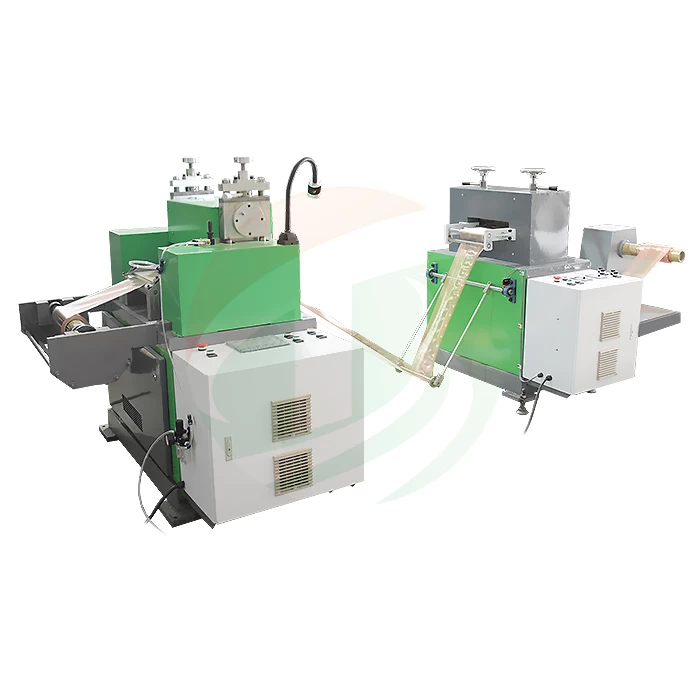

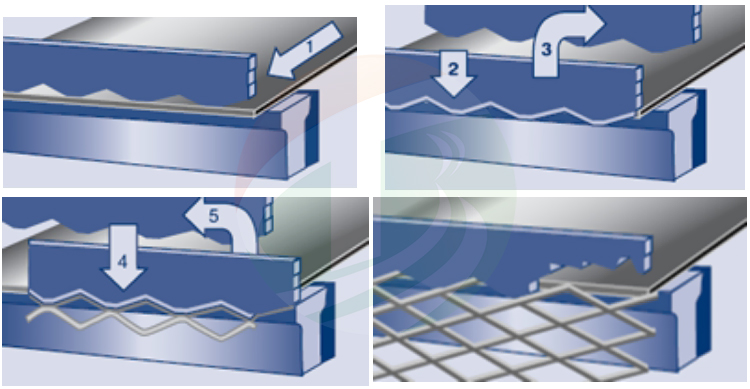

High-speed expansion mesh production line
It is mainly used for punching and expanding the 0.03-0.2mm thick copper foil into a metal mesh, and then flattening it to a thickness of 0.03-0.2mm by a high-precision flattening machine.

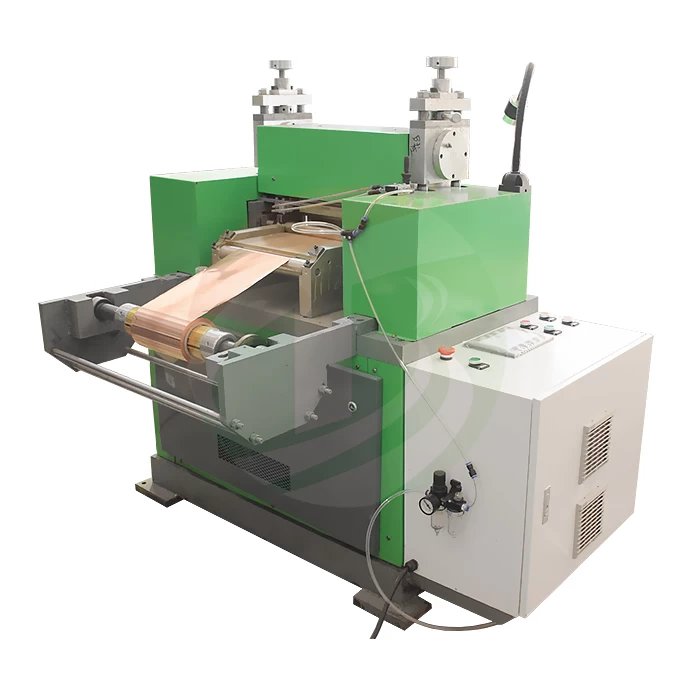

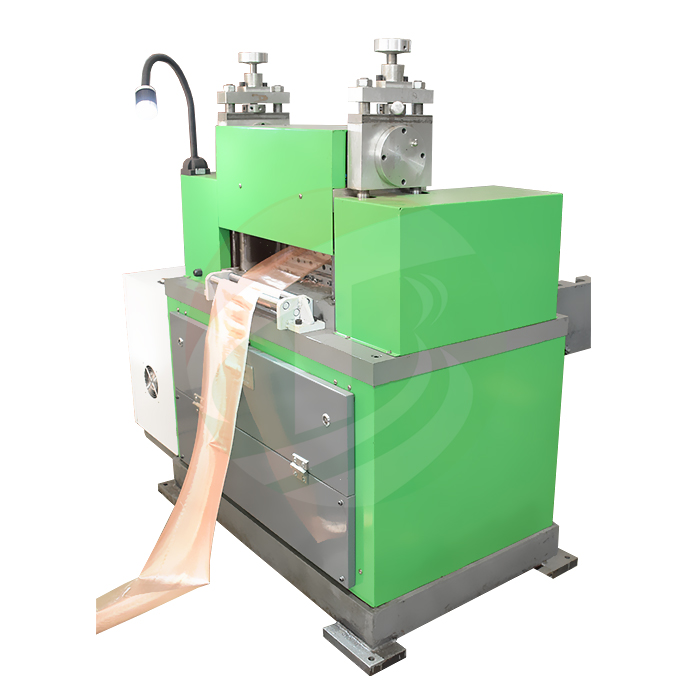

Mesh machine：
The raw material 0.03-0.2mm copper foil is processed into a micro-mesh semi-finished product with a thickness of 0.1mm through a mesh machine.
Adjustment method:
feeding should be convenient to feed, simple parameter adjustment, personal safety protection;
The device has high precision and easy adjustment. It adopts an electronic connection system and can be connected to the micro-machine to the entire production line. It can also be operated separately.
Receiving machine：
Auxiliary discharge and receiving system, the receiving system can coordinate the entire production line operation, equipped with a discharge system device, it can independent operation.
High precision metal expanding machine.
|
Test item
|
Technical requirement
|
Test data
|
Test result
|
|
Impact times
|
1200/min
|
1200/min
|
Qualified
|
|
Feed width
|
0-0.3mm
|
0-0.3mm
|
Qualified
|
|
Mesh long intercept
|
1-2mm
|
1-2mm
|
Qualified
|
|
Dimension
|
800×600×1250 mm
|
800×600×1250 mm
|
Qualified
|
|
Punching material thickness
|
0.03-0.5mm
|
0.03-0.5mm
|
Qualified
|
|
Max punching width
|
260mm
|
300mm
|
Qualified
|
|
Power
|
3.0KW
|
3.0KW
|
Qualified
|
|
Weight
|
1T
|
1T
|
Qualified
|

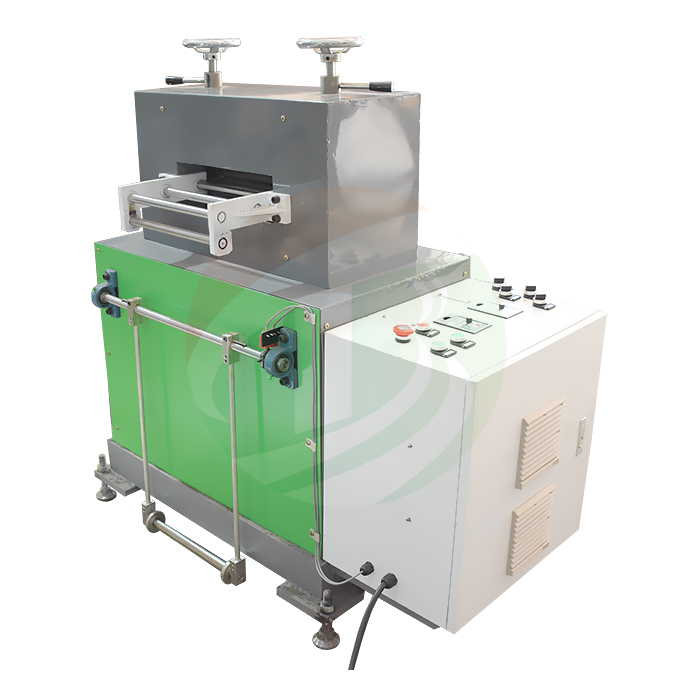

High precision flattening machine
|
Test item
|
Technical requirement
|
Test data
|
Test result
|
|
Speed
|
10meter/min
|
11meter/min
|
Qualified
|
|
Feed width
|
260mm
|
300mm
|
Qualified
|
|
Max product width
|
＜1mm
|
＜1mm
|
Qualified
|
|
Dimension
|
500×500×1200 mm
|
500×500×1200 mm
|
Qualified
|
|
Roller diameter
|
140mm
|
140mm
|
Qualified
|
|
Power
|
2.0KW
|
2.0KW
|
Qualified
|
|
Weight
|
0.6T
|
0.62T
|
Qualified
|
|
Roller material
|
GR12
|
GR12
|
Qualified
|
|
Roller hardness
|
62 degree
|
62 degree
|
Qualified
|
