Optical Material,Optical Lens,Optical Prisms,Optical Windows,Optical Mirrors

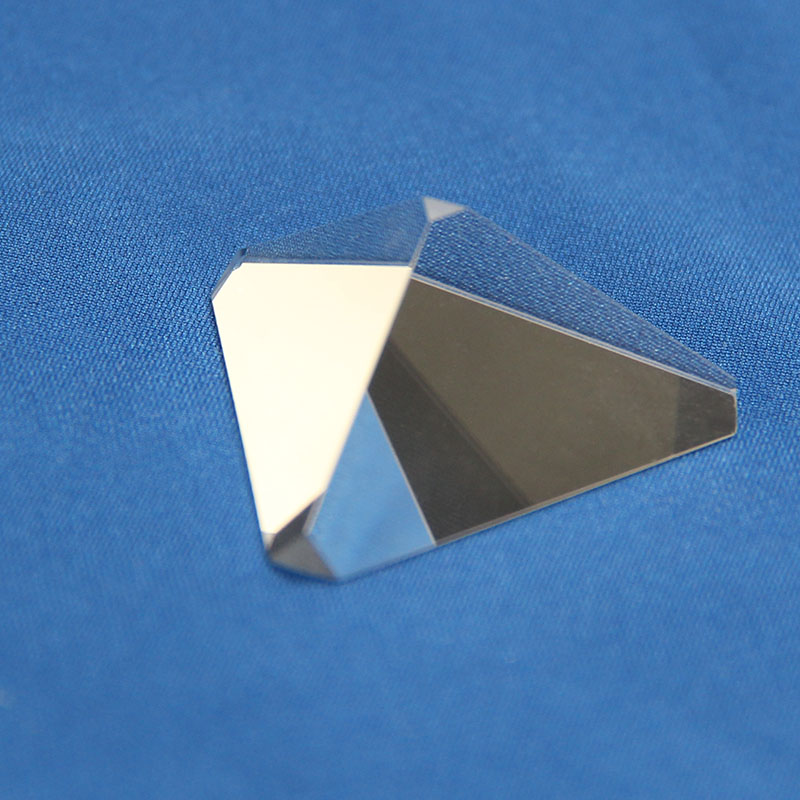

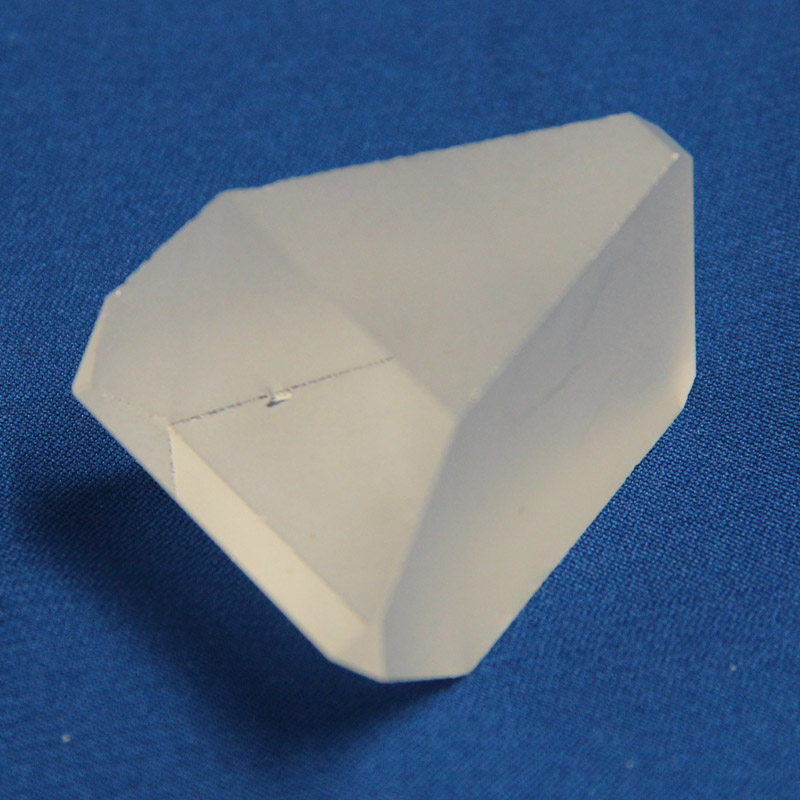

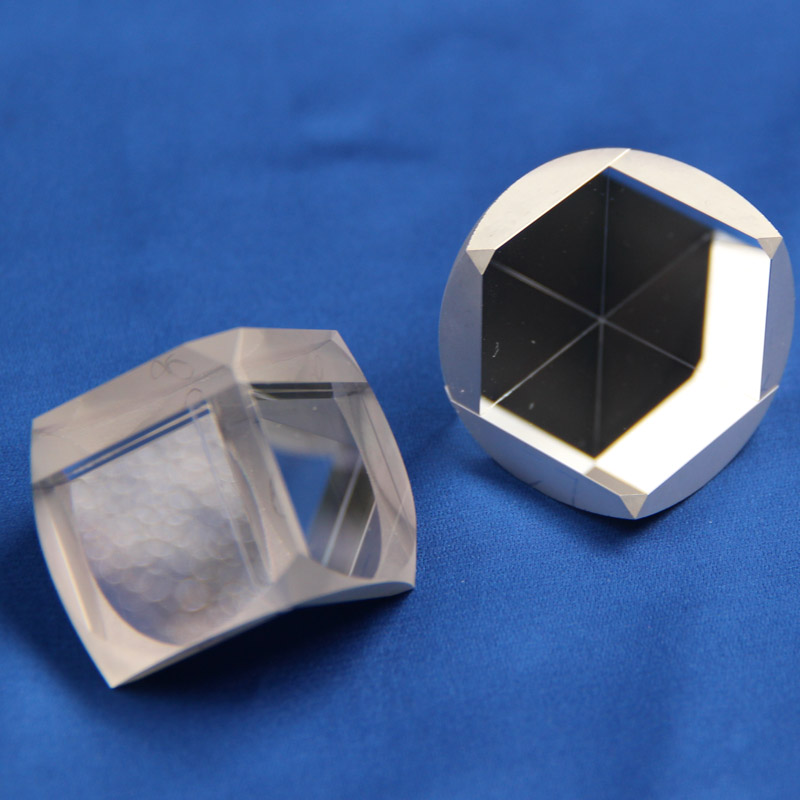

Retroreflector Optics Corner Cube

Corner Cube Retroreflector has three mutually perpendicular surfaces and a hypotenuse face.

Optical precision glass aspheric lenses

Precision Aspheric Lenses Collimate or Focus Light with a Single Element Reduce spherical aberration Reduce overall system weight

IR Windows Calcium Fluoride CaF2 Windows

Calcium Fluoride windows and lenses for UV and IR spectrum. Custom made CaF2 windows, CaF2 lenses and wedges according customer's specifications. CaF2 windows up to 220mm diameter; CaF2 wedges, prisms and CaF2 mirrors; Excimer CaF2 optics, Raman grade CaF2 optics and etc.

CaF2 crystal Calcium Fluoride windows

CaF2 or Calcium Fluoride is a cubic crystal with an excellent transmission from 130 nm to 10 μm and has widespread applications as transparent windows in the ultraviolet and infrared spectra.

Plano-concave Cylindrical Lenses

Cylindrical lenses are mainly used to change the size of imaging per design requirements. Plano concave cylindrical lenses are mostly used in laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and other optical applications.

Lenses assemblies in monitoring and Medical and machine vision

Lens Assemblies, Mounted Lenses include: 1. Mega Pixels CCTV Lenses Assemblies 2. Road Monitoring Lenes Assemblies 3. Machine Vision Lenses Assemblies 4. Automotive Vision Lenses Assemblies 5. Endoscope Lenses Assemblies 6. Micro objective Lenses Assemblies

Magnesium Fluoride (MgF2) Windows

Magnesium Fluoride Windows applicable for wide range spectrum, transmits well into the VUV region at the hydroge Lymanalpha line and beyond and it is particularly useful for Excimer laser application. It is resistant to mechanical and thermal shock, to radiation, and is chemically stable.

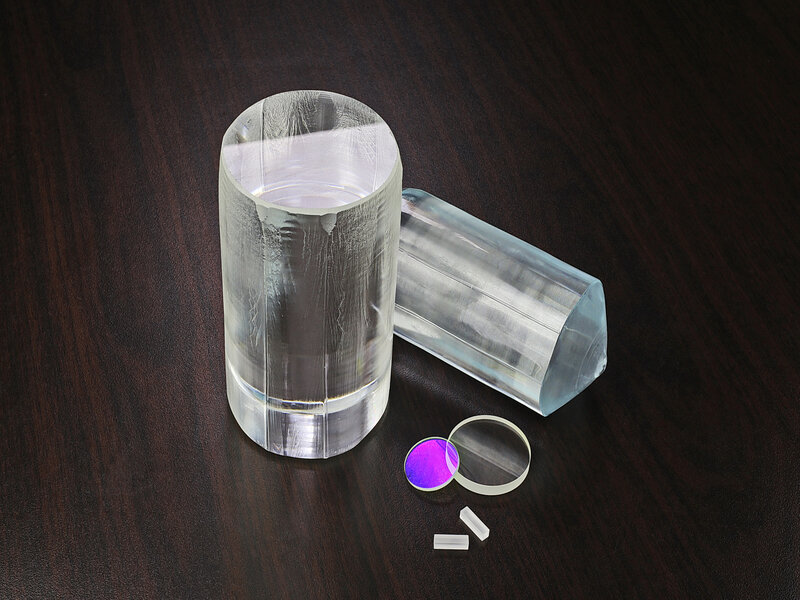

LiF crystal lithium fluoride

HGO grows LiF crystals in house using Czochralski technology. LiF crystal or lithium fluoride crystal is an optical material with outstanding transmittance in VUV region. It is also used for windows, prisms, and lenses in the visible and infrared in 0.104µm-7µm. LiF single crystal is sensitive to thermal shock and would be attacked by atmospheric moisture at 400°C. When working at a high temperature of 600°C, the LiF crystal softens and is slightly plastic, so it can be bent into radius plates. In addition irradiation produces color centers. Hence, users should take measures to protect LiF crystals from moisture and high energy radiation damages. What is more LiF can be cleaved along (100) plane and less commonly (110) plane. The optical characteristics are good and yet the structure is not perfect and cleavage is difficult.

Plano-convex Cylindrical Lenses

Cylindrical lenses are mainly used to change the size of imaging per design requirements. Plano convex cylindrical lenses are used to focus light to a thin line in the applications like laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and etc.

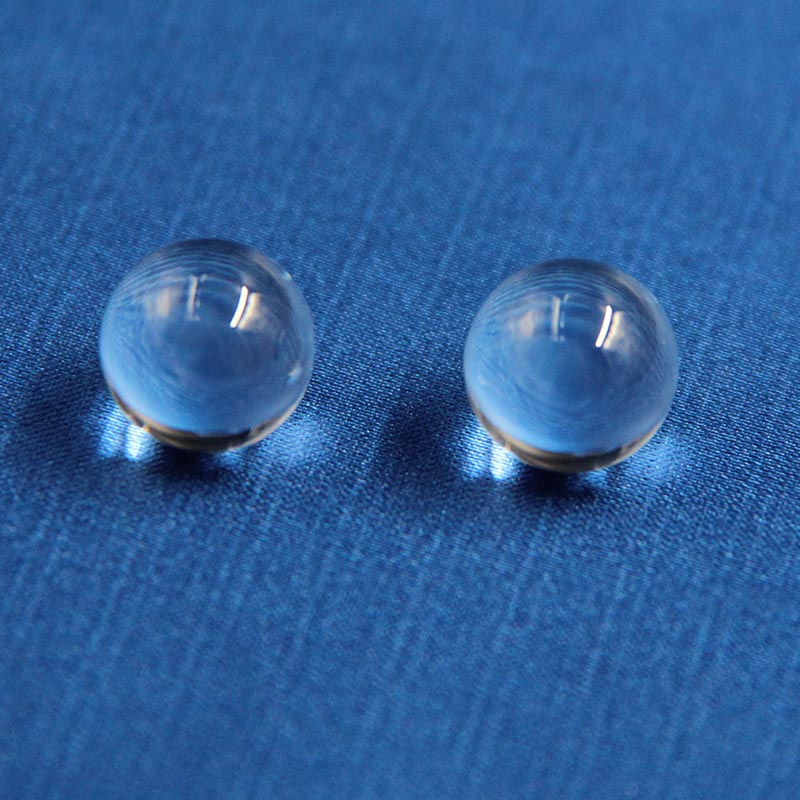

Optical Glass Ball Lenses and Half ball lenses

Optical glass ball lenses are commonly used 1. Laser collimating and focusing 2. Laser-to-fiber coupling 3. Fiber-to-fiber coupling 4. Fiber-to-detector coupling

IR Windows Germanium Windows

Germanium (Ge) is the preferred lens and window material for high performance infrared imaging systems in the 8–12 um wavelength band.

YAG window crystals Yttrium Aluminum Garnet

Pure YAG Yttrium Aluminum Garnet is a new substrate and window material that can be used for both UV and IR optics. It is particularly useful for high-temperature and high-energy applications. The mechanical and chemical stability of YAG is comparable to sapphire crystal, but YAG is unique with no birefringence which is extremely important for some optical applications.

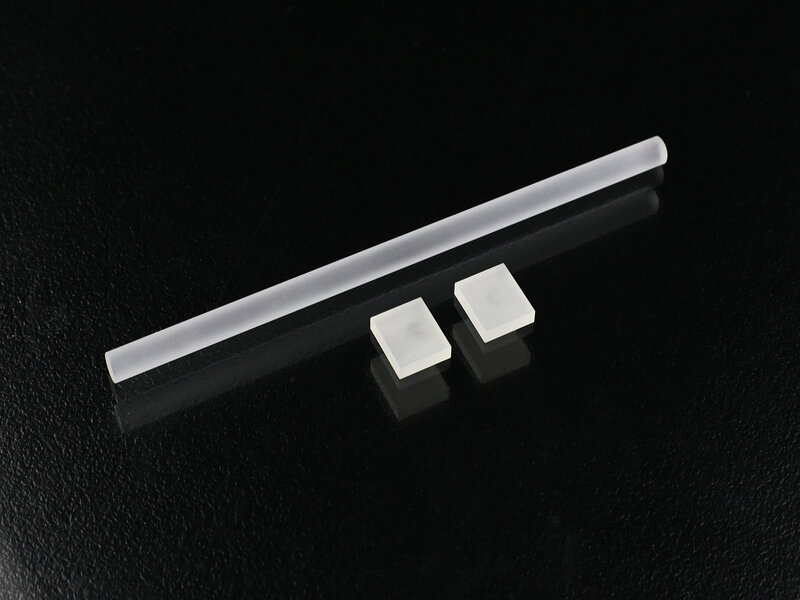

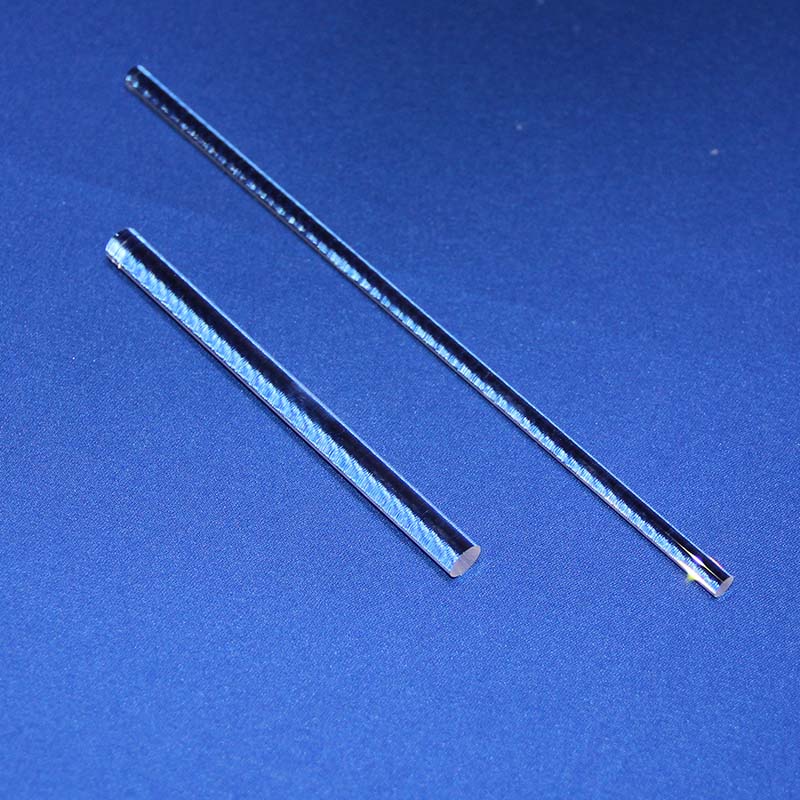

Rods Lenses and Light pipes

Rod lenses Light pipes is used in the fields of medical, electronic, information, agriculture, communication and etc. 1.All surfaces (end-faces and cylinder)polished; 2.Only end-faces polished; 3.Only Cylinder polished.

Plano-Convex Lenses for optical systems

Plano-convex Lenses present a curvecd interface and a planar interface. Thay are for instance the microlenses situated on top of a wafer, and also encountered in macroscopic optical systems.

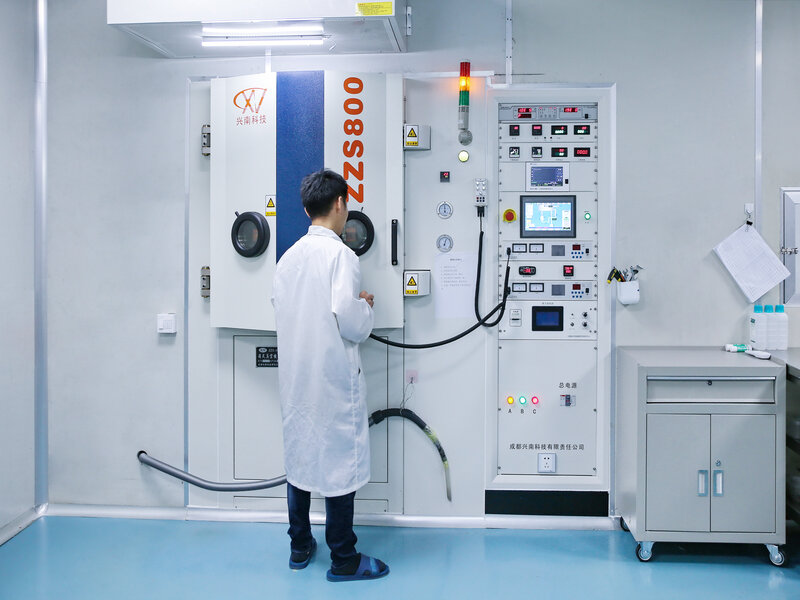

Crystals and Optics coating service

HGO have advanced coating machines which can meet endusers’different application requirement. We can very high laser induced damaged threshold coating with IAD, EB and IBS coating techniques , also Cr-Au, Aluminum and silver mental coating can also be available in HGO. Customers are very welcome to contact with us for further information.

Expand lights Plano-Concave Lenses

Plano-concave Lenses have one concave surface. It has negative focal length. It is often used to expand light or to increase focal length in existing systems.

Zinc Selenide Lenses and Windows

Infrared Zinc Selenide Lenses, windows is for High-Power CO2 Lasers Primary candidate for high-power CO2 Lasers windows For windows, domes and lenses for full infrared region devices, especially for high resolution FLIR systems 1. Broadband AR Coating for the 7 - 12 μm Range 2. Compatible with Visible Alignment Lasers

IR Windows Zinc Selenide(ZnSe) Windows

ZnSe is used widely for IR components, windows and lenses, and applied for Thermal Imaging, FLIR, Medical systems and Co2 Laser

Crystals and optics processing services

HGO is a company has skillful workers with wide processing experiences and skillful processing technique. Thus we also offer processing service such as oriented, cutting, grinding, polishing ,repolishing, coating ,recoating and diffusion bonding etc. Customers are very welcome to contact with us for further information.

Positive Focal Length Double-Convex Lenses

Double-convex Lenses are manufactured with an identical convex surface on both sides of the lens. This kind of lenses has positive focal length and form both real and vitrual images.

Germanium Infrared Lenses

Germanium lenses are perfect for Mid-Infrared(IR) applications 1. Excellent for Security, Military, and Imaging Applications 2. AR Coating Optimized for the 7 - 12 µm Range

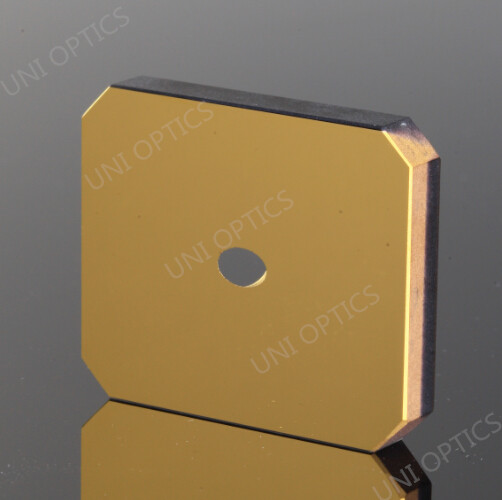

High power grade laser mirror

Laser Line Mirrors are used for beam-steering in demanding laser applications.Laser Line Mirrors are Optical Mirrors that have been designed for specific lasertypes or wavelengths.

Optical glass micro lenses and small size lenses

Optics Glass Micro Lenses Optics Glass micro lenses size are smaller than 3mm, which use for fibter, medical and laser etc. speciification. The shape could be achromatc lenses, plano-convex, meniscus etc. as micro lenses

For diverging light Double-Concave Lenses

Double concave lens is the most common form of Negative lens. Negative lens is most suited to producing diverging light or a virtual image, where the input light is converging.

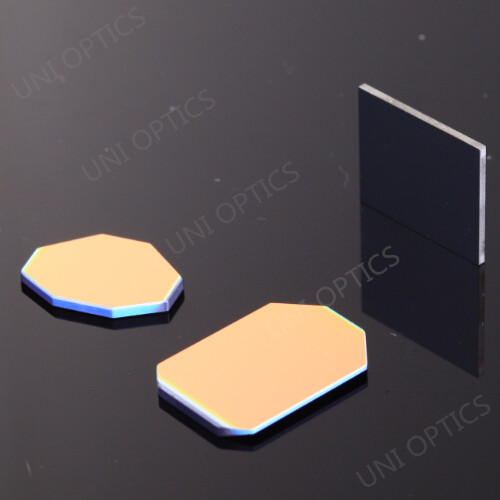

High Reflective Broadband Dichroic Mirrors

The dichroic mirror is a mirror with significantly different reflection or transmission properties at two different wavelengths, it’s characterized by almost complete transmission of light at certain wavelengths and almost complete reflection of light at other wavelengths. It can be widely used in Laser technology application.

High Precision Positive-Meniscus Lenses

Positive meniscus lenses may be used to increase the numerical aperture of apositive lens assembly, without an undue increase in the aberrations.

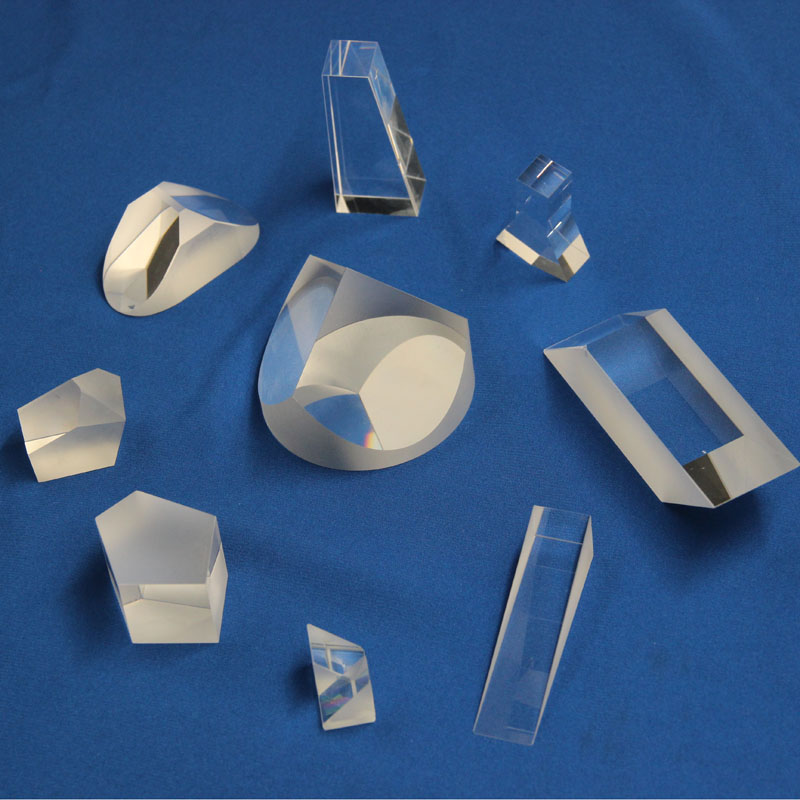

Glued Prisms and Special Customized Prisms

Glued prisms are glued by different shape prisms. WTS offer Special Prisms like Half Penta Prisms, Pellin-Broca Prisms, Pechan Prisms etc. prisms

N-BK7 metallic coated mirror

No brief introduction

Achromatic Negative-Meniscus Lenses

Negative meniscus lens is a convex-concave lens and is with thinner at the center than at the edges.

BK7 and Fused Silica Glass Schmidt Prisms

Schmidt Prisms Schmidt prisms are used to invert and revert an image to angle of 45°. The 45° deviation makes Schmidt prisms useful in eyepiece assemblies and imaging systems requiring a path bend. 1. Ray Deviation of 45° 2. Right Handed Image 3. Combine with Half-Penta Prism to Create Pechan Prism

Fused Silica IPL Filter for Hair Removal

IPL Filter is key optical element for IPL (intense Pulsed Light) machine , which blocks the UV wave and transmit the useful wave from 400nm to 1200nm for laser equipment, such as photo-rejuvenation hair removal, vascular and acne treatment, skin rejuvenation.

Infrared reflectors and windows' material Silicon (Si)

Silicon (Si) is grown by Czochralski pulling techniques (CZ) and contains some oxygen that causes an absorption band at 9 microns. To avoid this, material can be prepared by a Float-Zone (FZ) process.

BK7 and Fused Silica Glass Amici Roof Prisms

Amici Roof Prisms 1. 90° Deviation of Beam or Image 2. Produces Inverted Image 3. 6 Arcsecond Resolution

Machine Vision Bandpass Filters

A band pass filter is a device that passes frequencies within a certain range and rejects (attenuates) frequencies outside that range, and it’s used to selectively transmit a portion of the spectrum while rejecting all other wavelengths.

High Accuracy Coated Hollow Retroreflectors

Hollow Retroreflectors are constructed of three first-surface mirrors assembled by a proprietary process into a mutually-orthogonal inside corner. Incident Light is Reflected Back to the Source Hollow Lightweight Design

For high performance infrared imaging systems Germanium(Ge)

Germanium (Ge) is the preferred lens and window material for high performance infrared imaging systems in the 8–12 μm wavelength bands.

Longpass Filters for Vision inspection Apllication

Long wavepass filters are ideal for a variety of applications, such as gas monitoring, temperature, sensing, thermal imaging and motion sensing etc. Long wavepass filters block shorter wavelengths and transmit longer wavelengths. Blocking can be from reflectance, absorption or a combination. Transmission in the pass band can be enhanced with an antireflection coating on the second surface.
