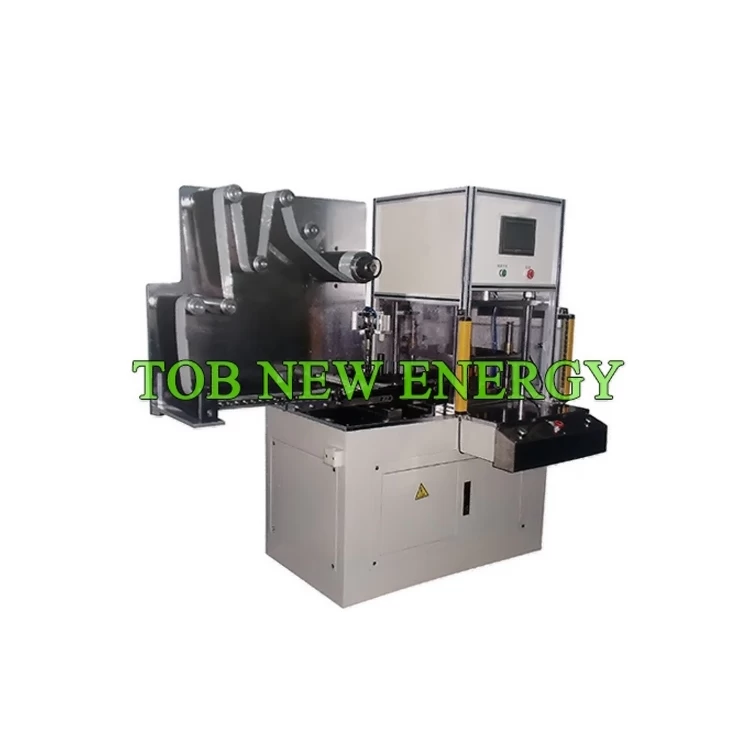

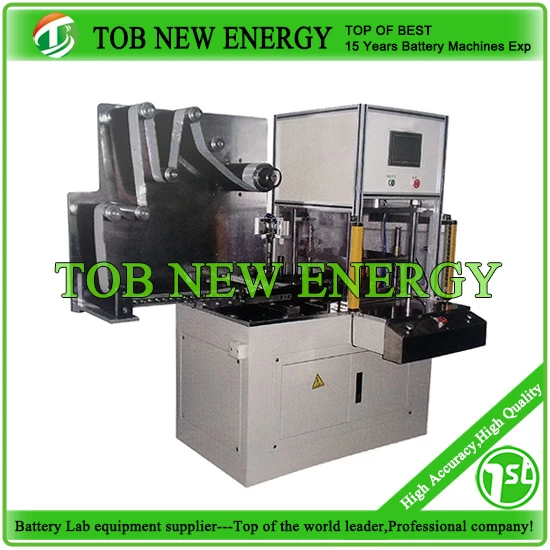

Pole Piece Punching and Cutting Machine for punching and cutting of supercapacitor and lithium-ion power battery
SPECIFICATIONS
Functional overview
Suitable for punching and cutting of supercapacitor and lithium ion power battery' s positive and negative pole pieces.
Functional characteristics
1.Adopt PLC control system to ensure stable and reliable system operation, and simple operation.
2.Colorful touch screen displays operation. Equipment parameter setting and browsing are concise and visualized.
3.Rack is welded by high-quality steel forgings, with firm welding and smooth polishing.
4.Equipped with safety light grid and protective door, with safe and reliable equipment operation.
Technical parameters
|
Punching accuracy
|
±0.1mm
|
|
Punching speed
|
30pcs/min
|
|
Burr
|
<0.01mm
|
|
Power source
|
AC220V/50Hz
|
|
Air source
|
≥0.6MPa
|
|
Overall dimensions (LxWxH)
|
1650x900x 1600mm
|
