Microcomputer Control High Frequency Precision Portable Spot Welding Machine For 18650 Battery Power Bank Pack (0.03-0.1mm Tab)
SPECIFICATIONS
1 TOB-PWM-3KVAbattery spot welding machineis a simpleportable spot welding machineused for NiMH. NiCd, Li-Ion/LiMnNi. LifePO4 batteries small pack.
2 Thissimple portable welding machineis with lower output 3kva power, it can just weld Ni or Ni-steel tab about0.03-0.1mm, it is mainly used for 18650 small pack, such as power bank pack. It can be for lab use and small scale producing use with simple operation.
|
Model
|
Portable Spot Welding Machine TOB-PWM-3KVA
|
|
Source voltage
|
AC 110V/220V, 50/60HZ
|
|
Max Power
|
3KVA
|
|
Warranty
|
One year limited and lifetime support
|
|
Advantages
|
1 Beautiful shape, lighter weight, smaller volume, simple operation
2 Good welding result with small spark, no black, and steady welding current.
3 Digital display setting, Flash storage technology
4 Microcomputer control High frequency precision spot welding machine
|
|
Welding current
|
00-99%
|
|
Applicable scope
|

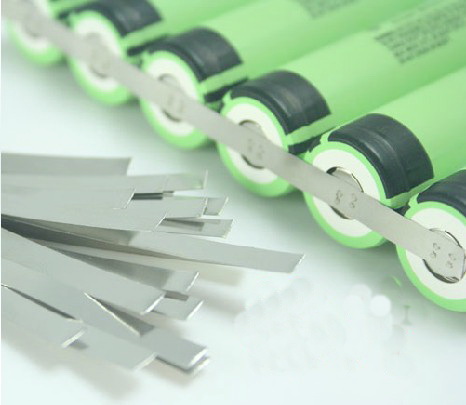

Used for NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 cylindrical battery Ni tab 0.03 to 0.1mm welding
|
|
Net weight
|
4.5kg
|
|
Package weight
|
About 6kg
|
|
Dimension(L*W*H)
|
250*180*200mm
|
|
Packing size(L*W*H)
|
330*240*300MM
|

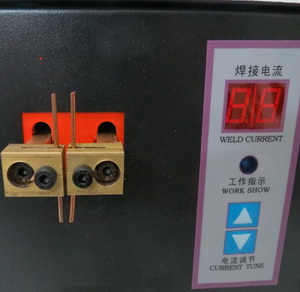

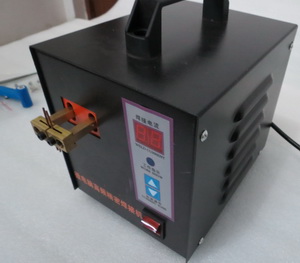

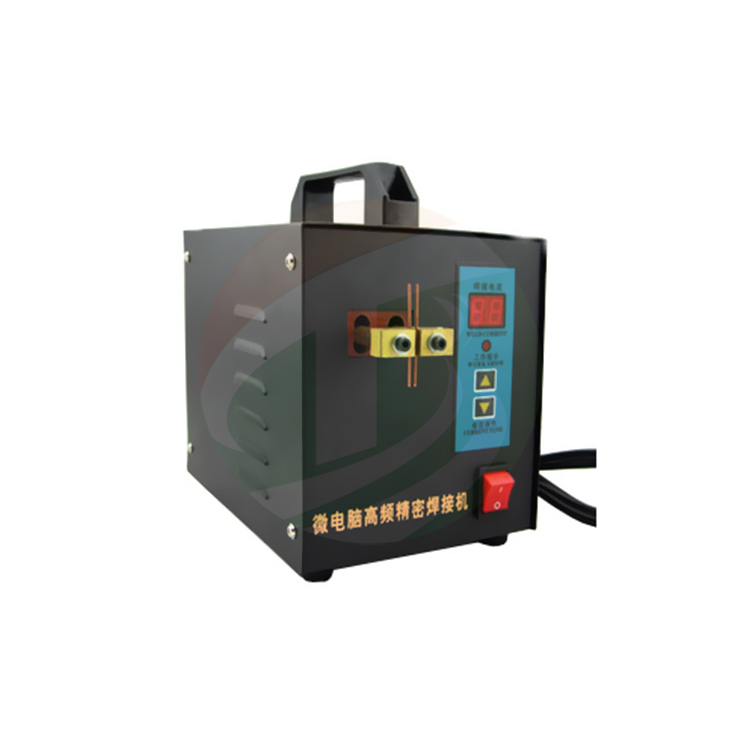

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
