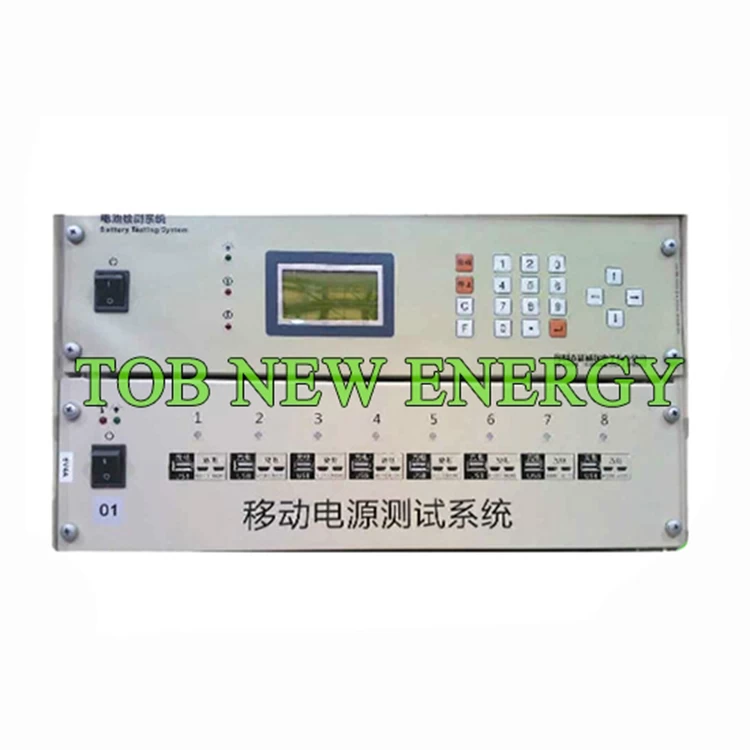

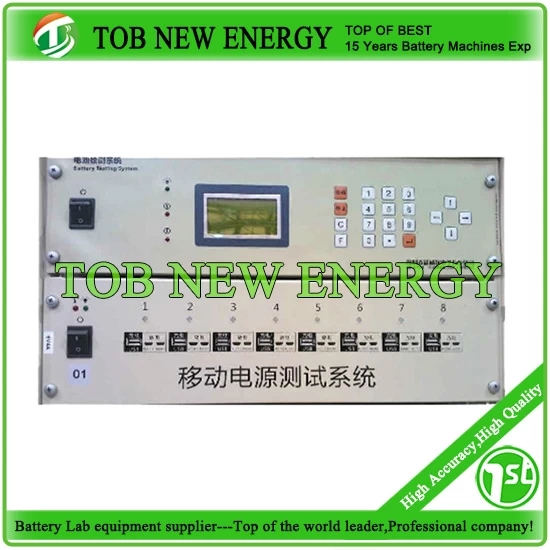

Power Bank Tester Used For Power Bank Capacity,Voltage And Cycle Testing
SPECIFICATIONS
TheTOB-BTS-6V4APower bank tester is used for power bank quality detection, it can test the power bank capacity, voltage and life cycle performance with connecting computer.
|
Model
|
Power Bank Tester TOB-BTS-6V4A
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Source voltage
|
AC110V-220V±10% Customized, 50/60HZ
|
|
Input impedance
|
≥1MΩ
|
|
Input power
|
324W
|
|
Channel characteristics
|
Constant current source and voltage source adopt double closed loop independent structure
|
|
Channel control mode
|
Independent control
|
|
Voltage range per channel
|
Charge : 12mV-6V Discharge : 1.2V-6V
Accuracy : ±0.05% of FS
|
|
Current range per channel
|
Charge : 8mA-4A Discharge : 8mA-4A
Accuracy : ±0.05% of FS
|
|
Output power per channel
|
24W
|
|
Time
|
Current response time
|
0-4A : 10ms
|
|
Step time range
|
1s-365*24h,Time format : 00:00:00(H:Min:S)
|
|
Record condition
|
TimeΔt ：1-60000s VoltageΔU : 12mV-6V
CurrentΔI : 8mA-4A
|
|
Charging mode
|
Constant current charge,constant voltage charge,
constant current and voltage charge, Constant power
|
|
Discharging mode
|
Constant current discharge,constant power discharge,
constant resistance, constant voltage, constant voltage and current
|
|
Conditions of constraint
|
Time, voltage, current, capacity
|
|
Cycle
|
Cycle range
|
1-65535 times
|
|
Steps pur cycle
|
254
|
|
Protection
|
Power-down data protection,
off-line test function and Safety condition setting protection
|
|
Voice
|
≤85dB
|
|
Communication interface
|
Net ports
|
|
Channel number per unit
|
8
|
|
Dimension(L*W*H)
|
480*330*130mm
|
|
Clamp
|
USB
|
|
Working temperature/humidity
|
-10-40℃ ≤70%RH
|
