Power Bank Tester

1 Mobile power supply tester TOB-V125 is designed high precision tester instrument for mobile phone

(mobile power supply charging PO) production and research.

2 The power bank tester can test power supply load voltage, charge and discharge current, the protection

function,USB discharge end voltage etc. performance parameters to filter the power bank.

3 It is very suitable for mobile power bank supplier assembly line mass rapid detection.

4 The power bank tester can also suitable for power bank wholesaler to detect the power bank quality.



Power bank tester test voltage current capacity (External battery pack tester machine)

SPECIFICATIONS



1 Mobile power supply tester TOB-V125 is designed high precision tester instrument for mobile phone

(mobile power supply charging PO) production and research.

2 The power bank tester can test power supply load voltage, charge and discharge current, the protection

function,USB discharge end voltage etc. performance parameters to filter the power bank.

3 It is very suitable for mobile power bank supplier assembly line mass rapid detection.

4 The power bank tester can also suitable for power bank wholesaler to detect the power bank quality.

Machine model

Power bank tester test voltage current capacity TOB-V125

Open circuit voltage V1

Output voltage of the power of the no load condition. Range : 0-10V

Min load voltage V2

A voltage with a relatively small load current power supply.

Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V

Middle load voltage V3

A voltage with a relative moderate load current power supply

Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V

Max load voltage V4

A voltage with a relatively large load current power supply

Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V

Charge current

Test the charge current for the power bank on a set voltage.

Range : Current : 50-5000mA, Time : 0-9999mS, Voltage : 0-10V

Short circuit protection time

In the case of short circuit, reaction time of power bank on short circuit protection function.

Range : Time : 0-9999mS

Short circuit recovery

Power on short circuit protection within the prescribed period of time

whether to have the function of recovery voltage.

Auto test mode

Suitable for power bank can output voltage automatically

Manual test mode

Suitable for power bank power output voltage needing press switch

A B Test mode

Suitable for power bank with two output.

Over discharge current

Protect current. Range : 0-10A

Dimension

290*270*100mm

Weight

5kg

Warranty

One Year limited warranty with lifetime support

Reference Pictures

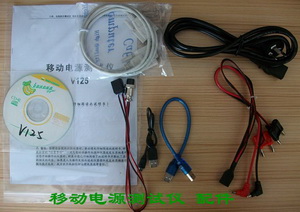

1 Power bank accessory

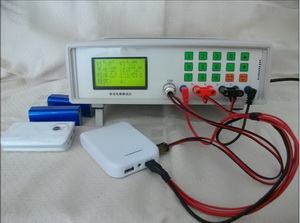

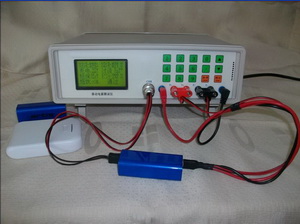

2 Power bank testing

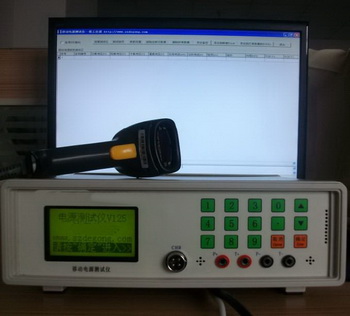

3 Machine connect with Computer



PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.
