Model

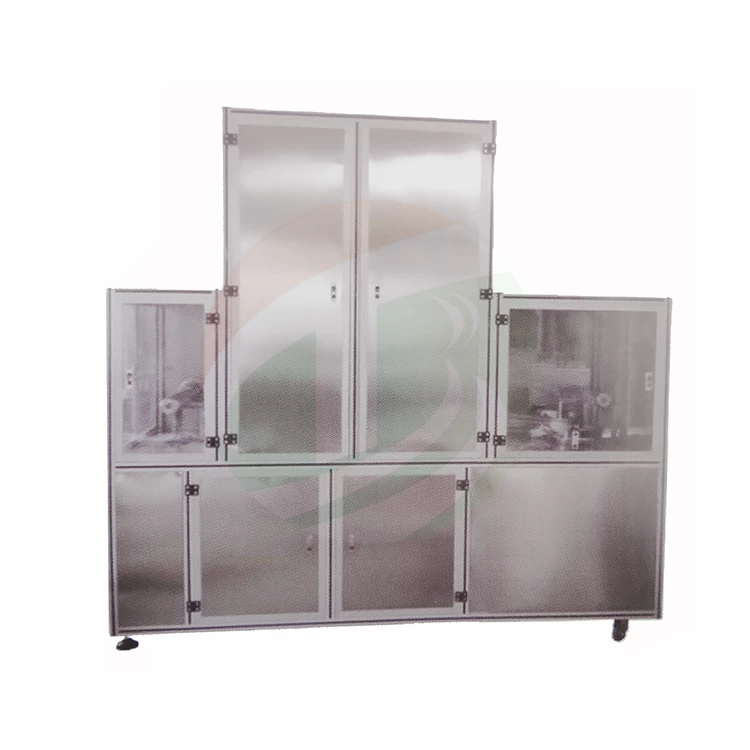

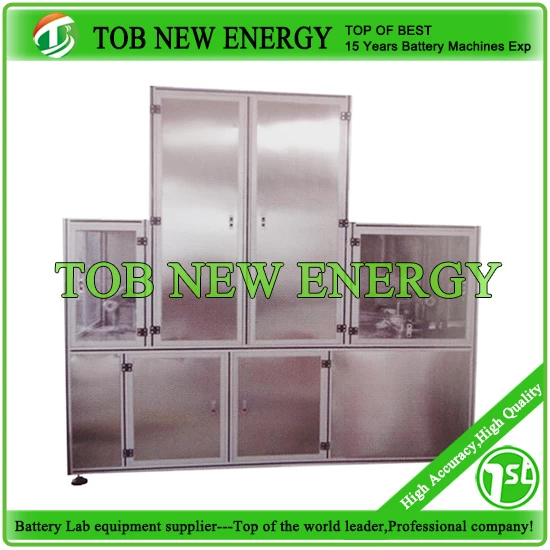

PVDF Coating Separator Machine TOB-PVDF-DC-P

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

23KW

Warranty

One year limited warranty with lifetime support

Battery separator

Width

100-600mm

Thickness

16um-40um

Biggest bear tension

1.0kg/cm

Max temperature

100℃

Equipment function

1 Easy to install and replace volumes

2 Uniform machine speed 1-8M/min adjustable

3 With heating drying fucntion

Roller inner size

Φ75mm

Heating temperature

Max 100℃, Adopts steam or heat pipes for drying the

battery separator

Auto unreel

Homemade tensioning device

Inflatable axle diameter φ75mm

Auto reel

Inflatable axle diameter φ75mm

explosion-proof motor

Coating speed

0-8m/min, adjustable

Air source

0.5-0.7MP

Struggle accuracy

±0.2mm

Struggle parallelism

±0.2mm

Dimension(L*W*H)

3000*1200*2500mm

Weight

About 680kg

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
