Rotary Vibrating Screen Used For Lithium Battery Slurry Sieving
SPECIFICATIONS
Rotary Vibrating Screen is a designed vibrating sieveused for Different size material screening. It can be worked semi-auto or automatically with simple operation.
This vibrating screen used for lithium battery industry mainly used forbattery material slurry screeningafter mixing before coating, in order to remove big Larger particles impurities, so that we can get the best slurry for electrode coating.
|
Model
|
TOB-ZD400
|
TOB-ZD600
|
TOB-ZD800
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
0.18kw
|
0.25kw
|
0.55kw
|
|
Warranty
|
One year limited with lifetime support
|
|
Function
|
For powder and slurry etc. screening,
purification and filtration
|
|
Production material
|
Carbon steel,stainless steel
|
|
Diameter(mm)
|
Φ400
|
Φ600
|
Φ800
|
|
Standard mesh
|
2～500 mesh
|
|
Vibration time(rpm)
|
1500
|
|
Effective screen surface diameter
(mm)
|
Φ350
|
Φ560
|
Φ760
|
|
Layers
|
1～5 layers can be customized
|
|
Dimension
|
580*580*560mm
|
800*800*750mm
|
900*900*750 mm
|

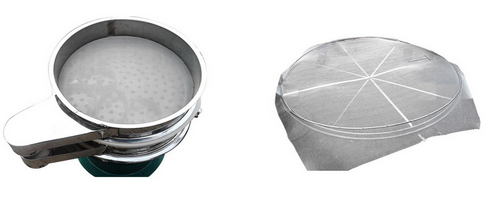

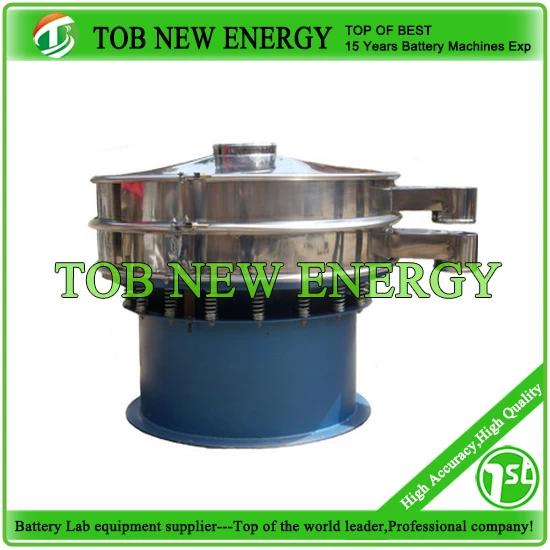

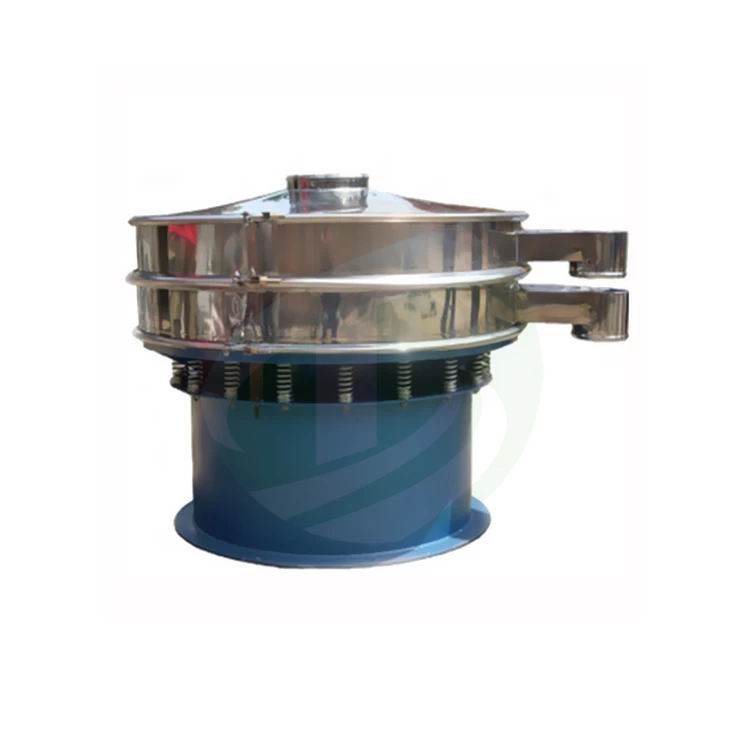

Product display
