Semi-Automatic Electrodes Die Cutter Machine For Pouch Cell
SPECIFICATIONS
TOB-MQ-400 semi-automatic electrode die
cutter is used for pouch cell electrode sheet cut for stacking pouch cell
battery. It is a necessary tool in the production line of pouch cell to produce
specific shapes of cathodes and anodes with current collector tabs.

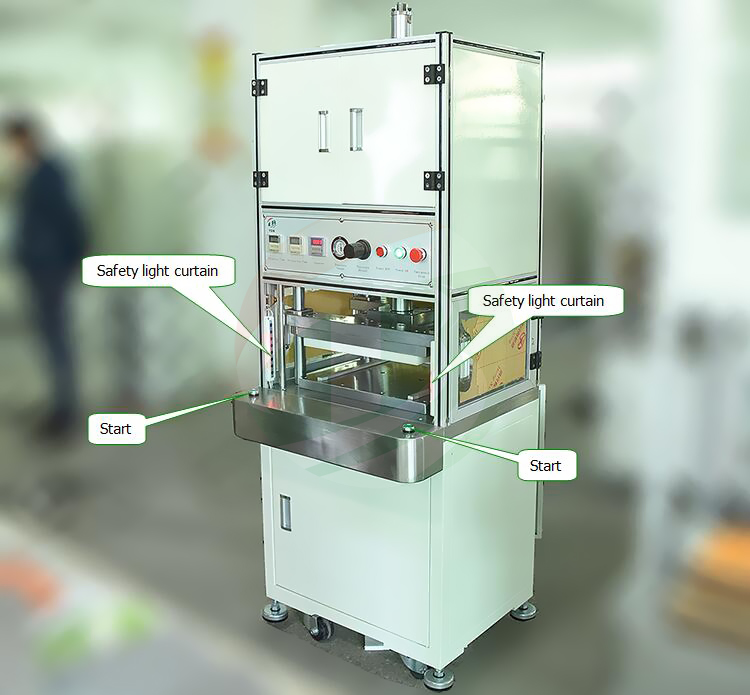

This Semi Automatic Die Cutter machine
adopts Safety Curtain built in the front of the machine and double start button
ensures operation safety when electrode sheets are fed from the front.
High speed, high accuracy,long lifetime to
make cutted electrode without burr, to get a good consistency.
This model has max die dimension with 400*300mm, It is
mainly used for producing, if we want smaller size for lab research, please
choose the TOB-MQ300 model.
|
Model
|
Battery Electrode Die Cutting Machine TOB-MQ-400
|
|
Work
voltage
|
AC110V/220V,
50/60HZ
|
|
Power
|
500W
|
|
Warranty
|
One
year limited warranty with lifetime support
|
|
Max
cutter die size
|
400mm(L)
* 300mm(W)
|
|
Die
Set Dimensions
|
One

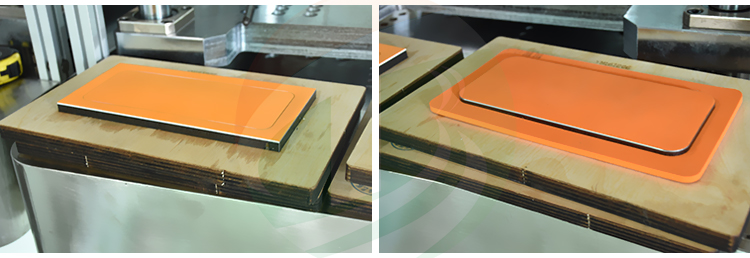

set of standard electrode die is included.
within
the dimensions:400mm(L) *300mm(W)
Customized
size die is available upon request
|
|
Safety
Protection
|
Built
in Safety Curtain to protect against hand injuires during electrode feedin
Double
start press buttong
|
|
Cutting
Accuracy
|
±0.1mm
|
|
Air
Cylinder
|
5
tons Max. pressure
|
|
Cutting
stroke
|
250mm
|
|
Feeding
|
Manually
|
|
Production
Yield
|
100-400
pieces of electrodes per hour according to battery sheet size
|
|
Air
Pressure
|
0.6-0.7Mpa,40L/S
|
|
Dimension
(L*W*H)
|
1000*760*2160mm
|
|
Net
Weight
|
1000kg
|

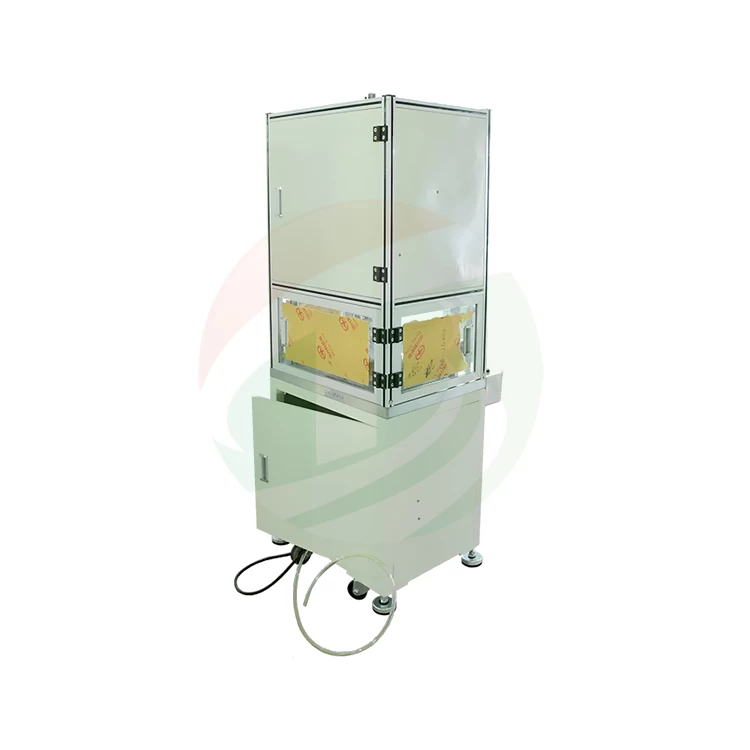

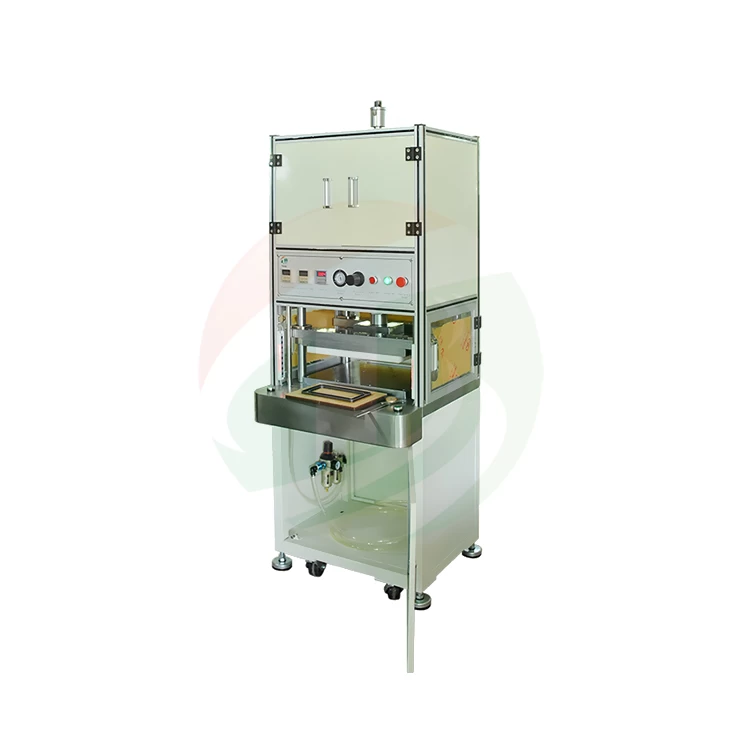

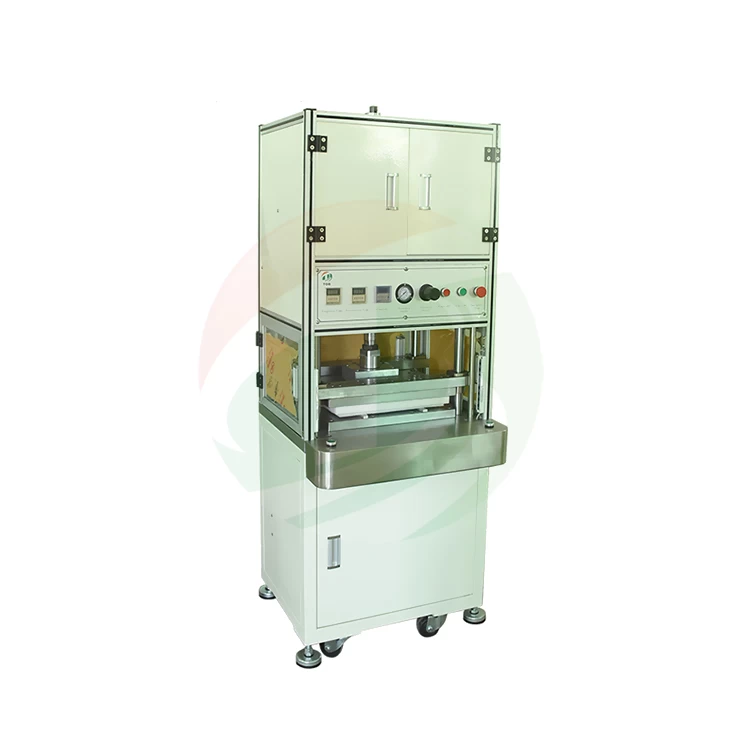

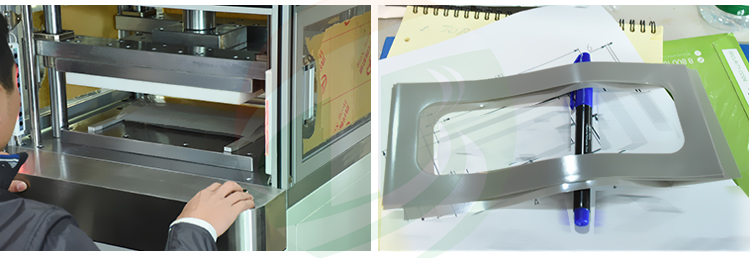

PRODUCT DISPLAY
