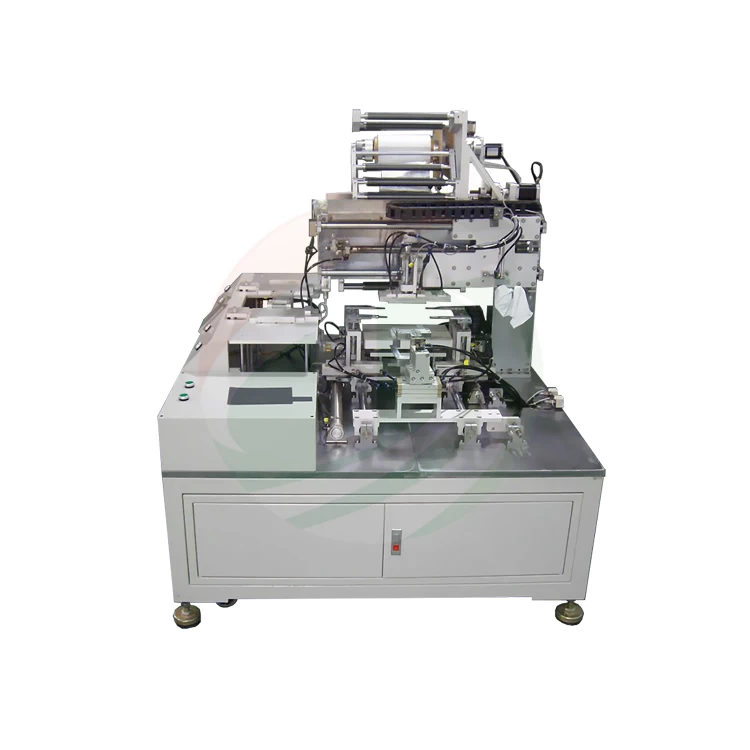

Semi-Automatic Lithium Battery Stacking Machine
SPECIFICATIONS
1 Equipment function description and technique process
1.1This Semi-Automatic Lithium Battery Stacking machine is used for the stacking of pouch cell. The working process is as follows: the separator is unwinding actively, and the separator is deflected, the ferry and the tension mechanism are introduced into the platform; the platform moves the diaphragm back and forth to reciprocate to place the pole piece; the suction cup is accurately positioned and stacked on the platform;
1.2 Battery cell diagram
1.3 Equipment features
1) The platform adopts the sliding table structure, the cylinder moves, the positioning is accurate, and the stability is high;
2) The cathode and anode plates are designed separately to avoid mutual mixing of cathode and anode materials;
3) The separator is unwinding actively, the working tension is continuously adjustable, and the correcting device is provided;
4) The cathode and anode electrode carrying mechanisms are independently arranged and can be adjusted separately;
5) There are cathode and anode plate positioning devices, and the positioning plate is made according to the size of the electrode, and the adjustment is convenient;
6) The core is blanked by manual reclaiming;
7) The device interface is friendly, easy to operate and easy to maintain.
|
Model
|
Semi-automatic stacking machineTOB-L-DP200
|
|
Dimensions
|
1450mm (L) × 1100mm (W) × 1600mm (H)
|
|
Power supply
|
220 VAC ± 5%, single phase, 0.5 KW
|
|
Gas source
|
5~7 kgf/cm2, 200 l/min
|
|
Vacuum source
|
-0.09MPa, 100 l/min
|
|
Stacking accuracy
|
1) Separator alignment error ± 0.3mm;
2) Electrode alignment error ± 0.3 mm.
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Remark
|
Non-corrosive gases, liquids, explosive gases
|
2 Material specifications and requirements for equipment
2.1 Specification of materials
|
|
Materials
|
thickness
|
Width
|
Length(Include tab)
|
Exposed Length of tab
|
|
1
|
Cathode electrode
|
0.09~0.2
|
40~160
|
40~250
|
≤30
|
|
2
|
Anode electrode
|
0.09~0.2
|
40~160
|
40~250
|
≤30
|
|
|
Materials
|
Thickness
|
Width
|
Inside diameter
|
Outside diameter
|
|
1
|
Separator
|
0.020~0.040
|
40~130
|
φ76.2
|
≤φ300
|
2.2 Requirements of materials
1) The electrode coating must be uniform, the thickness error is less than 0.005mm, the length and width dimension error is less than ±0.20 mm, and the wave edge is less than 1mm (subject to the pole piece positioning);
2) The tab must be flat and try to avoid bending;
3) The burr at the edge of the electrode and the tab is less than 1/3 of the thickness of the separator;
4) The separator must be evenly wound, the width error is less than 0.1mm, and the tower shape error is less than 0.5mm.
3 Stacking Process
Battery cell specification
Unit:mm
|
Specification
|
Dimension
|
Specific value
|
|
Length H
|
40~250
|
|
|
Width W
|
40~160
|
|
|
Thickness T
|
5~30
|
|
|
Exposed tab length P
|
≤30
|
|
Note: When the length H and width W change beyond the specification, it needs to be replaced.Corresponding specifications (standard configuration one specification).
