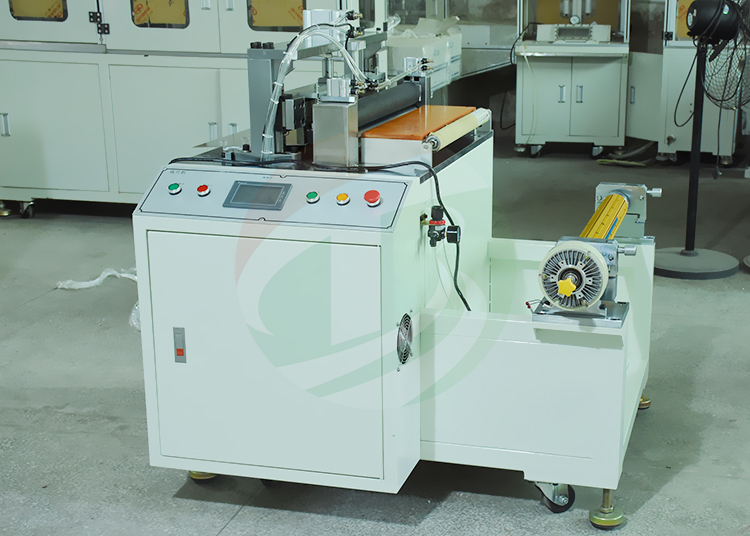

500mm Width Lithium ion Battery Electrode Cutter Machine
SPECIFICATIONS
1 The Automatic
shear cutting machine is used for lithium battery big electrode cutting after
coating process or after continuous rolling press process. Cutted big electrode
is more easy for slitting or punching to small pieces for battery making.
2
This cutter machine can also used for aluminum laminated film cutting.
3
TOB-CP-500 model battery electrode cutting machine has a 500mm cutting
width with set cutting length, it can be used for lithium battery lab research
and production line.
Model
|
Lithium ion Battery Electrode Cutter Machine
TOB-CP-500
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
Power
|
1500W
|
Warranty
|
One Year limited warranty with lifetime support
|
Max electrode width
|
500mm(The
cutting length can be arbitrarily set)
|
Cutting
length
|
0.25-10m(adjustable)
|
Cutting
quantity
|
1-99999
free settings
|
Cutting material
|
Battery continuous or clearance cathode and anode electrode
Aluminum
laminated film
|
Cutting speed
|
1-8m/min,adjustable
|
Cutting accuracy
|
±
0.25mm
|
Setting
accuracy
|
±
0.5mm
|
Trimming
precision
|
+
0.5mm
|
Dimension(L*W*H)
|
1200*1000*1100mm
|
Weight
|
About
1000kg
|

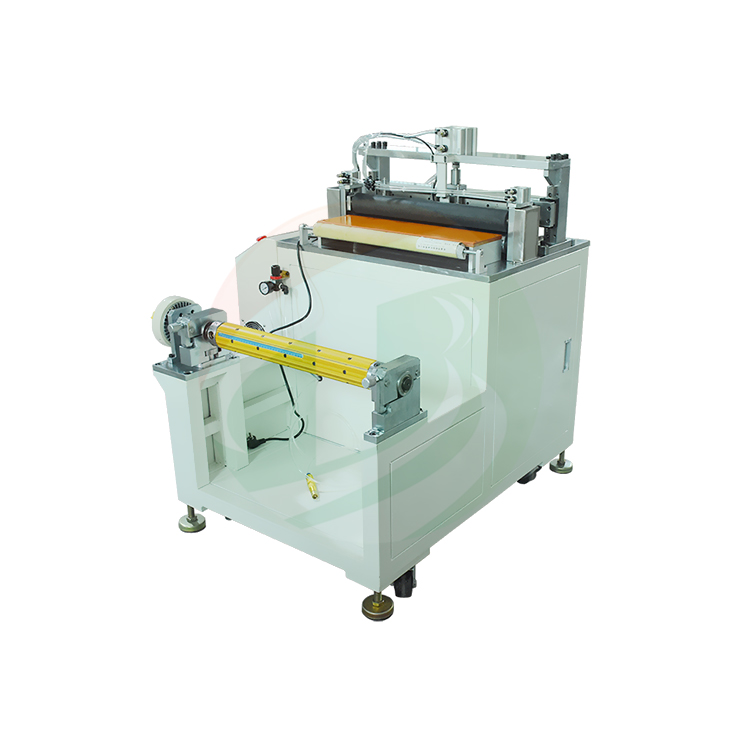

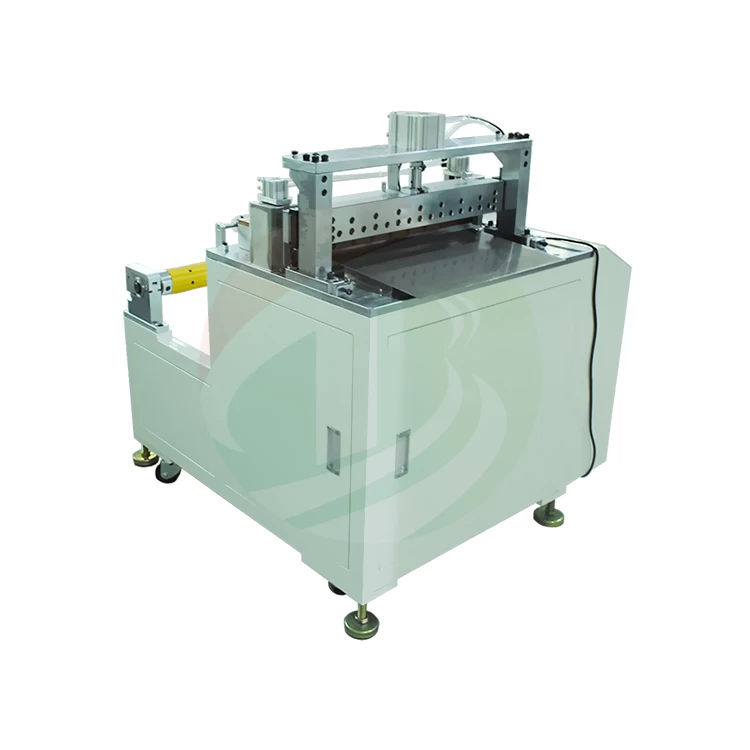

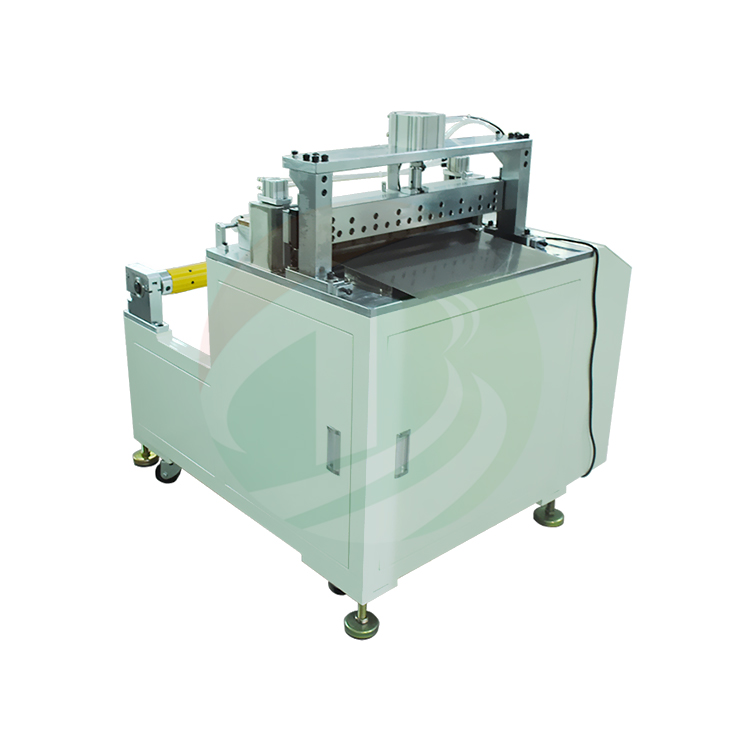

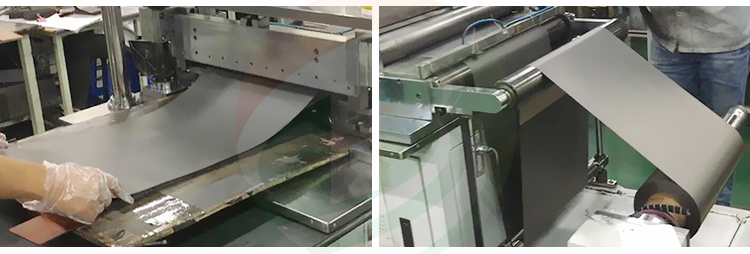

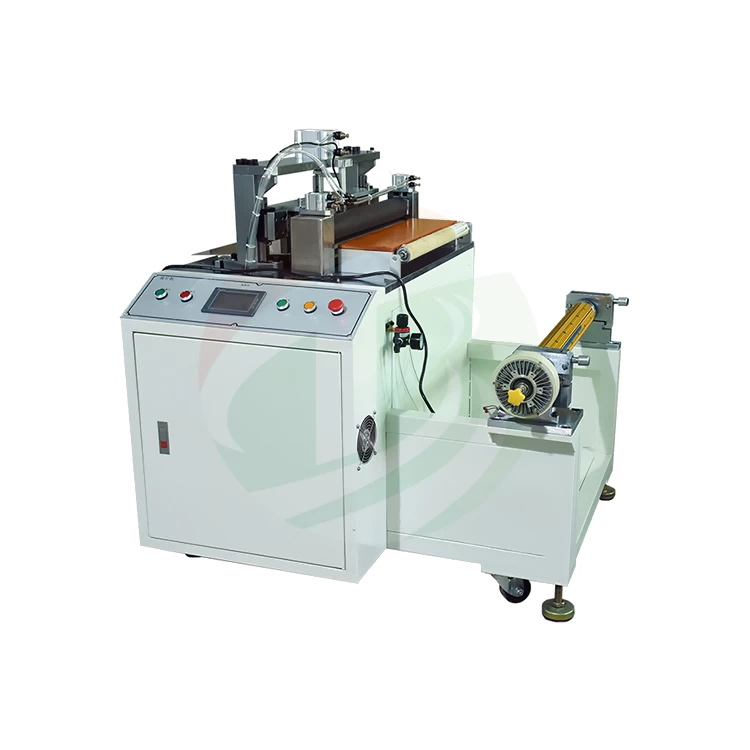

PRODUCT DISPLAY

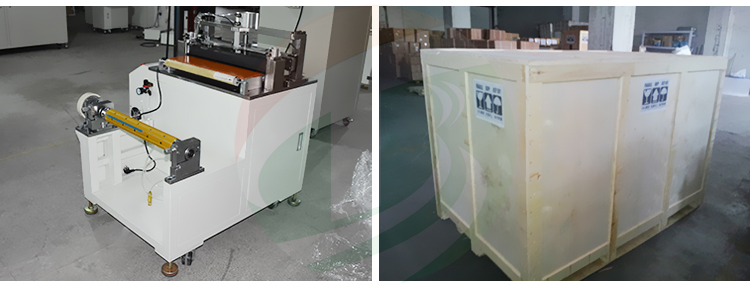

PACKAGE
