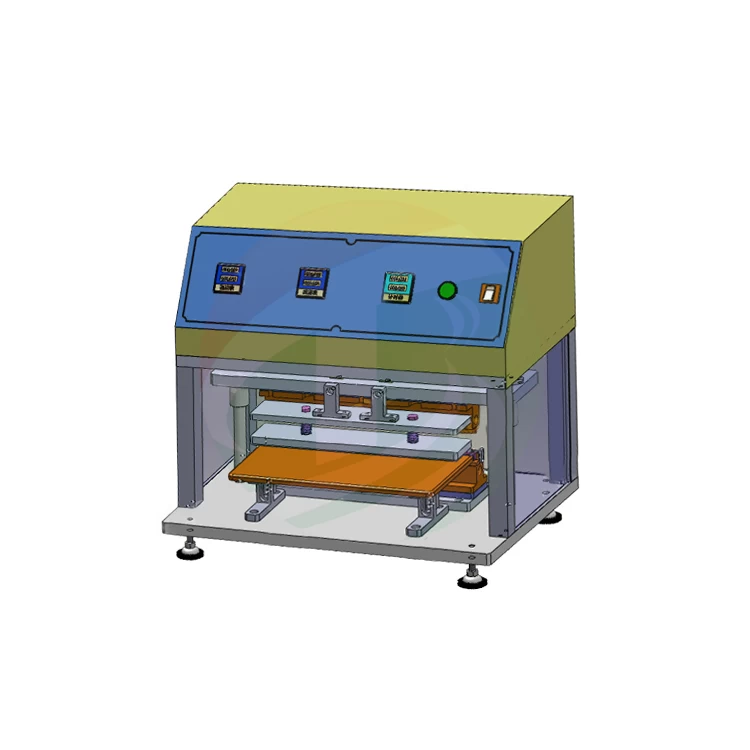

Simple edge sealing machine
SPECIFICATIONS
This device is mainly used for flexible packaging lithium batteries,manual packaging process for unilateral top and side of the battries.The upper and lower head independent heating temperature control.
|
Sealing head Length
|
200 ~ 350mm
|
|
The upper and lower sealing head parallelism
|
±0.01mm
|
|
Sealing head temperature
|
room temperature -260 ℃ adjustable,
can be set up to compensate,
control accuracy:±2℃
|
|
Equipment production capacity
|
100 ~ 350 EA / H
|
|
Equipment size (L * W * H)
|
550 * 375 * 490mm
|
|
Configuring Power
|
200V/50HZ 1.5KW
|
|
otal weight
|
about 45KG
|
PRODUCT DISPLAY
