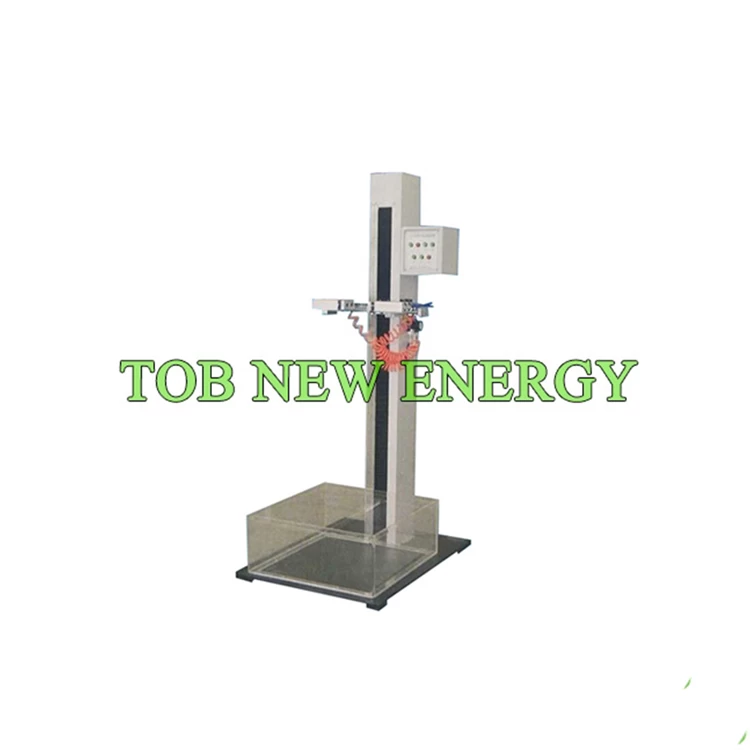

Small Battery Dropping Test Machine For Lithium Battery Safety Performance Testing
SPECIFICATIONS
|
Type
|
TOB-BE-F-315S
|
TOB-BE-F-320S
|
|
Drop height
|
300~1500mm Adjustable
|
300~2000mm Adjustable
|
|
Dimension
|
W700*D900*H1760mm
|
W700*D900*H2260mm
|
|
Weight
|
About 90kg
|
About 110kg
|
|
Max battery weight
|
2kg±100g
|
|
Max battery size
|
L150*W200
|
|
Drop height
Ruler Material
|
Stainless steel ruler，Min scale:1mm
|
|
Drop plate material
|
Steel plate(Hard wood/Marble slab/Acrylic sheet/Cement board optional)
|
|
Dropping way
|
Pneumatic Drop
|
|
Up and down way
|
Electric lift
|
|
Power supply
|
AC220V 50HZ
|
|
Power
|
0.5KW
|
|
Air pressure
|
<2MPa
|
