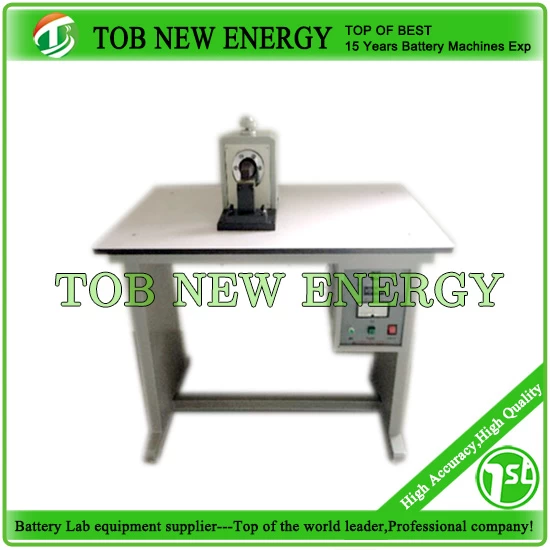

Desk-Top 1500W Ultrasonic Spot Welding Machine For Lithium Battery Cathode Electrode Aluminum Tab Welding
SPECIFICATIONS
1 TOB-USW-24KHZ Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding li ion battery cathode electrode sheets aluminum and Al tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories and production line.
2 TheUltrasonic spot welding machinecan also used for Prismatic aluminum shell battery Ni tab welding with Aluminum shell. It can weld for both aluminum shell welding or finished battery tab welding.
|
Model
|
TOB-USW-24KHZ
|
|
Source voltage
|
110V AC or 240V AC 50/60Hz
|
|
Power
|
1500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Ultrasonic spot welding machine
|
|
Frequency
|
24KHZ
|
|
Working stroke
|
15mm
|
|
Welding time
|
0.05-2s
|
|
Control mode
|
CPU Control
|
|
Air supply
|
≥0.5MPa (≥72.5psi)
|
|
Welding ability
|
1 Prismatic battery Aluminum shell 0.1mm aluminum strip welding with 1-3mm aluminum plate,
welding area 3*3mm or 3*4mm single point welding,3 * 3 mm double point 8 mm long;
2 Cathode electrode 0.02mm aluminum foil + 0.1m alumin tab 3*25mm or 3*4*25mm welding;
4 Nickel aluminum composite band and the bottom of the aluminum plate or shell two point welding,
3*3mm 3*4mm welding.
|
|
Main accessories
|
1 Ceramic chip from Germany
2 Aluminum bar from USA
3 Single chip microcomputer from Netherlands
4 Welding head Titanium alloy and 6542 type
|

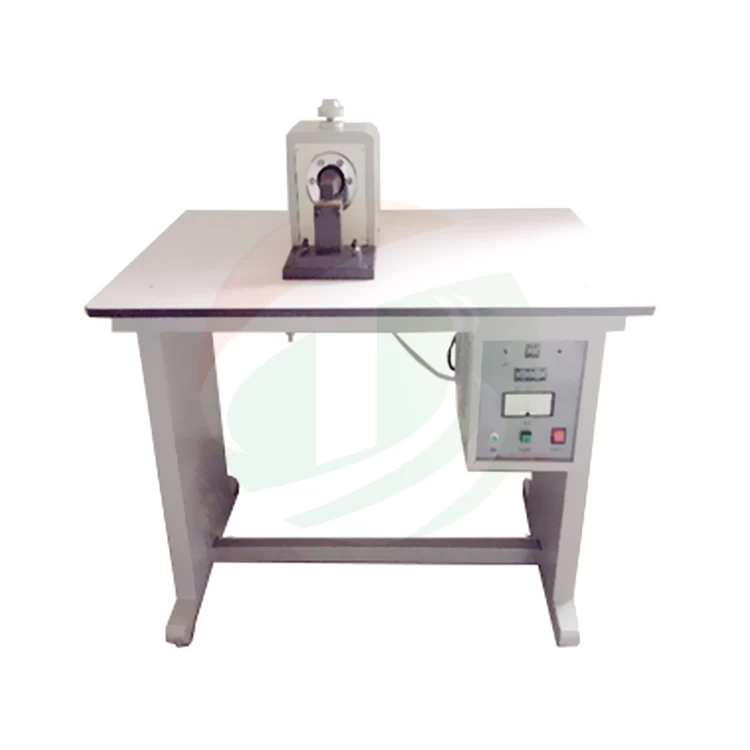

PRODUCT DISPLAY

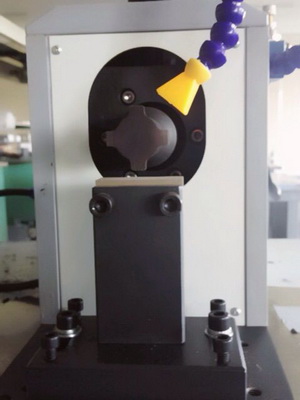

Weld head area can be customized according to customer's requirements
