1-5L Customized Volume Vacuum Mixer For Lithium Battery Slurry Laboratory Mixing Will Vacuum Pump
SPECIFICATIONS

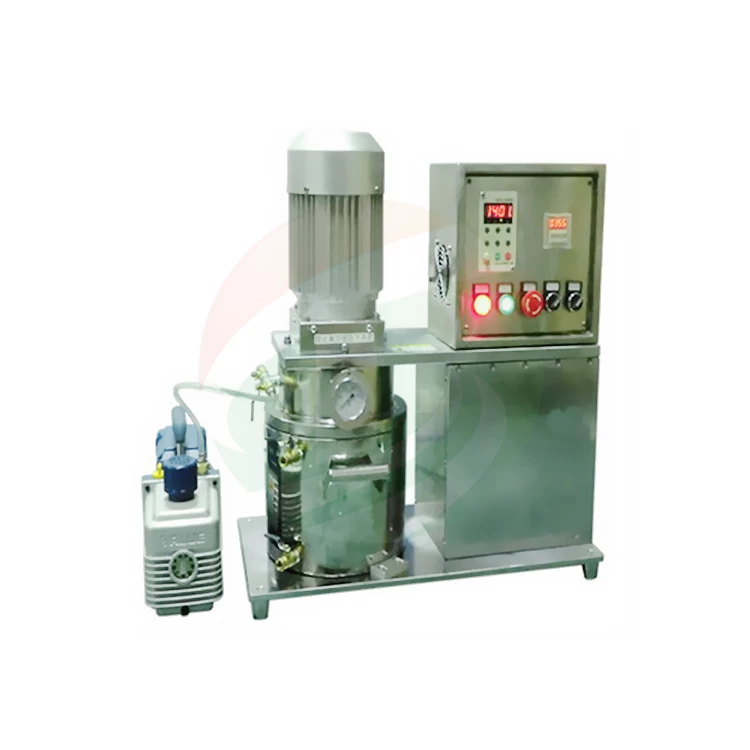

1 The TOB-VM-MRX systemvacuum mixeris a laboratory small vacuum mixing equipment, it is an efficient equipment with vacuum mixing and dispersion.
2 Thisvacuum mixerhas customized volume from 1L to 5L according to customer’s requirement.
3 Thevacuum mixeris mainly used for lithium battery experimental process, for battery anode/cathode material vacuum slurry mixing as well as powder materials, and mixture of all kinds of ceramic.
|
Model
|
Vacuum mixer TOB-VM-MRX
|
|
Source voltage
|
AC 220V/110V, Customized
|
|
Power
|
750W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1-5 liter 304 stainless steel container with double layer water cooling jacket.
Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.
Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation
Programmable controller to set time, speed, rotation direction.
|
|
Mixing speed
|
0-1400r/min, Through the inverter speed control
|
|
Vacuum degree
|
-98KPa, with Double Step Rotary Vane Vacuum Pump,
254L/m is included
|
|
Effective capacity
|
With 1L to 5L customized mixing jar
|
|
Time set
|
0-99H can be set
|
|
Dimension(H*L*W)
|
600*300*700mm
|
|
Weight
|
About 90kg
|
REFERENCE PICTURES

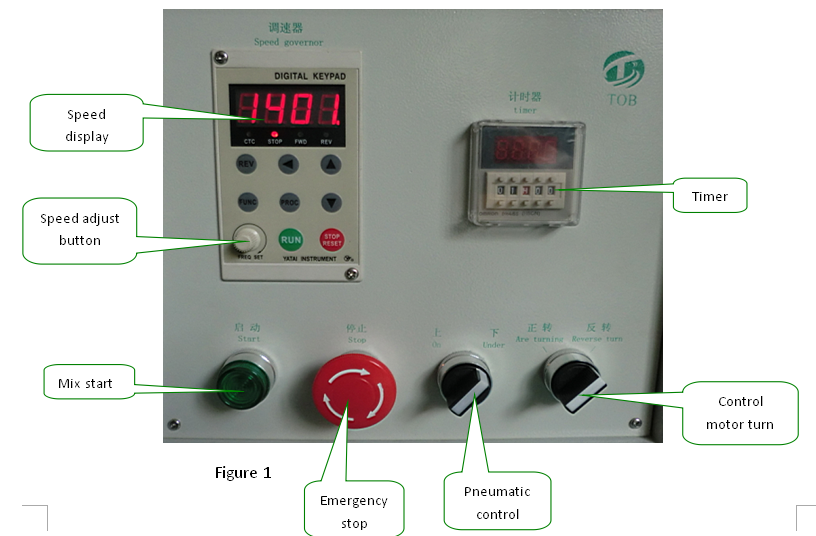

English operating panel for vacuum mixer machine
254l/min vacuum pump with the machine together
