Precision Automatic Winder for Electrode Assembly of Cylindrical Battery 18650
SPECIFICATIONS
1 The Battery Winding Machine is a semi-automatic winding machine used for lithium cylinder battery precision winding for production line.
2 The battery winding machine can suitable for different model of battery by changing winding blade, The change work is simple operation.
Advantages :
1 Adopt single needle structure, movement type to achieve drop needle and needle at same time, Feeding electrode more easily, reduce electrode out.
2 Artificial feeding electrode, automatic winding, automatic needle change, automatic termination of adhesive tape and automatic blanking.
3 Adopt Embedded controller to realize the battery winding tension control, Using MATLAB to analyzer battery separator diameter and roller core change, to generate the best fitting curve control winding process.
4 With electrode dust removal system
|
Materials
|
Length (mm)
|
Width (mm)
|
Thickness (um)
|
Max outside diameter
(mm)
|
Inner diameter
(mm)
|
|
Cathode electrode
|
200-1300
|
28-58
|
100-200
|
-------
|
-------
|
|
Anode electrode
|
200-1300
|
28-58
|
100-200
|
-------
|
-------
|
|
Separator
|
In roll
|
30-60
|
16-45
|
250
|
76.2
|
|
Termination tape
|
In roll
|
8-15
|
10-35
|
150
|
76.2
|
|
Model
|
TOB-YH-SW-C
|
|
Technology parameter
|
Winding needle width
|
∮3.5mm, can be customized
|
|
Separator width
|
30-60mm
|
|
Electrode width
|
28-58mm
|
|
Electrode length
|
200-1300mm
|
|
Termination tape width
|
8-15mm
|
|
Capacity
|
10-15ppm, according to electrode length and man operating
|
|
Voltage supply
|
AC220V，1.5KVA，50HZ
|
|
Compressed air
|
0.4-0.6 MPa
|
|
Weight
|
About 800kg
|
|
Dimension (L*W*H)
|
1660*1300*1570mm
|

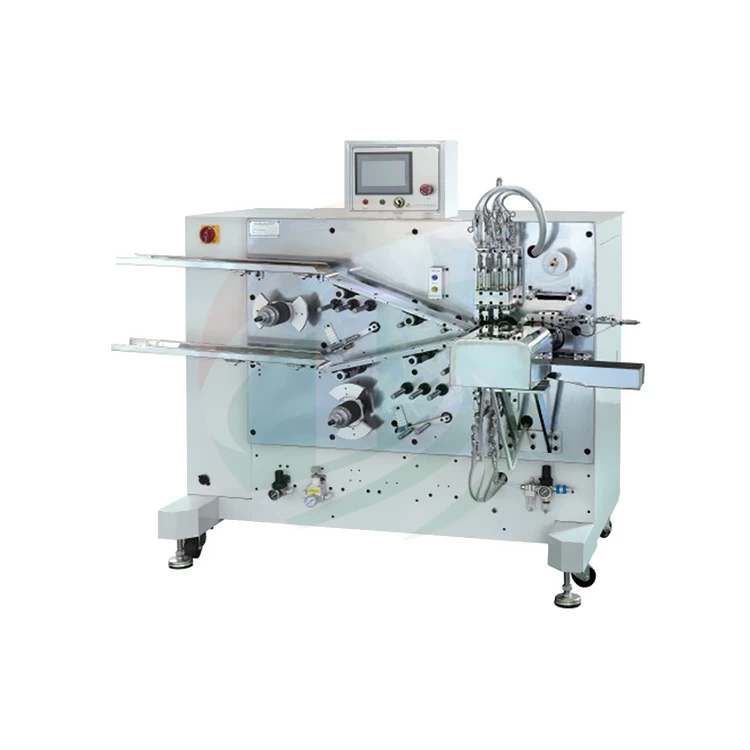

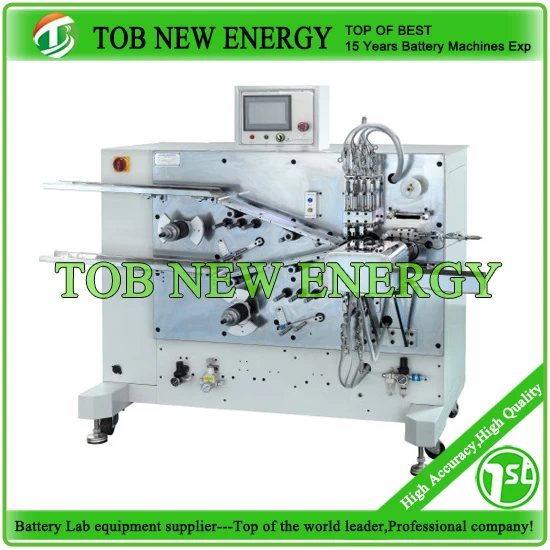

Product Display
