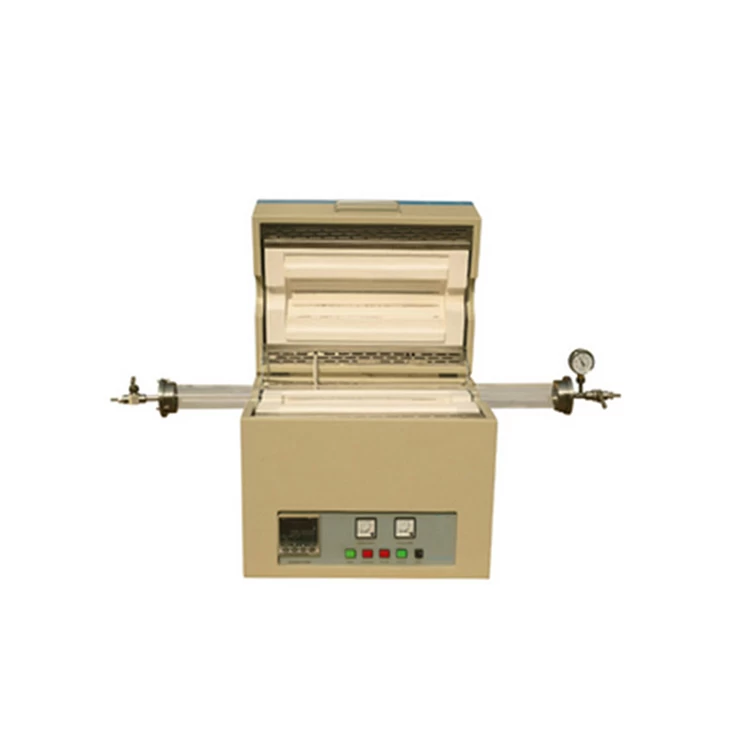

1200°C Single Zone Tube Furnace with Vacuum Flanges and Quartz Tube
SPECIFICATIONS
1 The TOB-OTL1200 Modeltube furnaceis a single zonequartz tube furnacewhich can achieve faster heating up to 1200c. It adopts electric resistance wire as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.
2 It is the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do High temperature atmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealing such as for preparing nano materials and film.
|
Model
|
Tube Size
|
Power
|
Voltage
|
Heating Zone Length
|
Max Heating Temperature
|
|
TOB-OTL1200-I
|
Φ60×1000mm
|
2.5kw
|
AC110V/220V
|
420mm
|
1200℃
|
|
TOB-OTL1200-II
|
Φ80×1000mm
|
2.5kw
|
|
TOB-OTL1200-III
|
Φ100×1000mm
|
3.5kw
|
|
TOB-OTL1200-IV
|
Φ120×1000mm
|
4kw
|
|
Heating element
|
Electric resistance wire
|
|
Temperature controller
|
40 program temperature control system,
With over temperature, broken accidentally protection function,
6 groups of PID adjustment
Control precision of + / - 1 ℃
|
|
Furnace chamber
|
Polycrystal alumina fiber
|
|
Tube material
|
Gas refining quartz tube
|
|
Vacuum Flange & Fitting Ports
|
Stainless steel flange with Gas nozzle, valve, pressure gauge
|
|
Pressure measure system
|
Pressure gauge (Resistance vacuum gauge can be chosen according requirements)
|
|
Air intake control
|
Flow meter (Protons flow controller can be chosen according requirements )
|
|
Vacuum system
|
Vacuum pump can be chosen
|
|
Warranty
|
One year limited warranty with lifetime support
|
