150℃ Four Drums Electric Round Oven For Roller Battery Production Line Electrode Baking
SPECIFICATIONS
TheRound Vacuum Ovenis dedicated to theLi ion battery electrode dryingprocesses for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 400 kg.

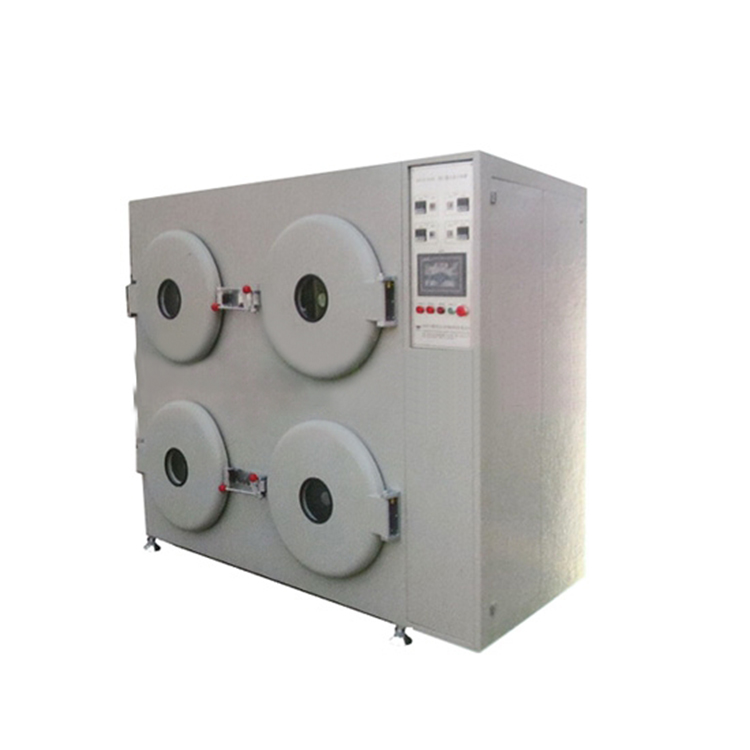

The TOB-JK-ZKHX-AR4 Round vacuum ovenis equipped with four drums, you can also choose single drum, double drum, three drum or four drum according the battery production line output.
|
Model
|
Four Drum Round Vacuum Oven TOB-JK-ZKHX-AR4
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Max. Power Consumption
|
4.5KW*4
|
|
Temperature range
|
RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃
|
|
Vacuum degree
|
-98Kpa, Can maintain limited vacuum degree up to 24hours
|
|
Working chamber size
|
Dia 550*600, can customized according request
|
|
Product Dimensions
(H*W*D)
|
1850*2180*1100mm
|
|
Warranty
|
One year limited warranty with lifetime support
|
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
