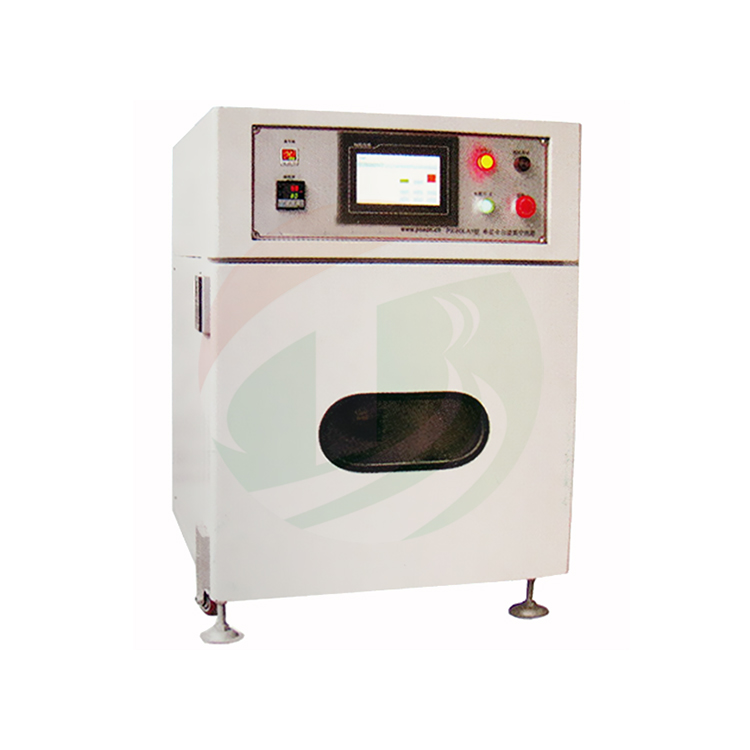

150℃ Single Layer Vacuum Oven For Battery Electrode Baking With Dry Air Input
SPECIFICATIONS
The TOB-OV-E1Vacuum Ovenequipment is designed for lithium battery electricity industry vacuum drying process, it can choose automatic or manual mode, with the functions air-cooled cooling rapidly.
Thisvacuum ovenadopts electric heating tube heating, it can also adopt Hot lead heating, stream heating and other heating mode as request.
Thisvacuum ovencan be vacuum and input dry air to protect battery electrode performances.
|
Model
|
High Precision Vacuum Oven TOB-OV-E1
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Max. Power Consumption
|
2500W
|
|
Temperature range
|
RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃
|
|
Inner box size (H*W*D)
|
350*350*320mm
|
|
Vacuum degree
|
-98Kpa, Can maintain limited vacuum degree up to 24hours
|
|
Product Dimensions
(L*W*H)
|
1150*800*850mm
|
|
Net Weight
|
80kg
|
|
Warranty
|
One year limited warranty with lifetime support
|
