1600℃ High Temperature Muffle Furnace For Powder Materials Atmosphere Sintering
SPECIFICATIONS

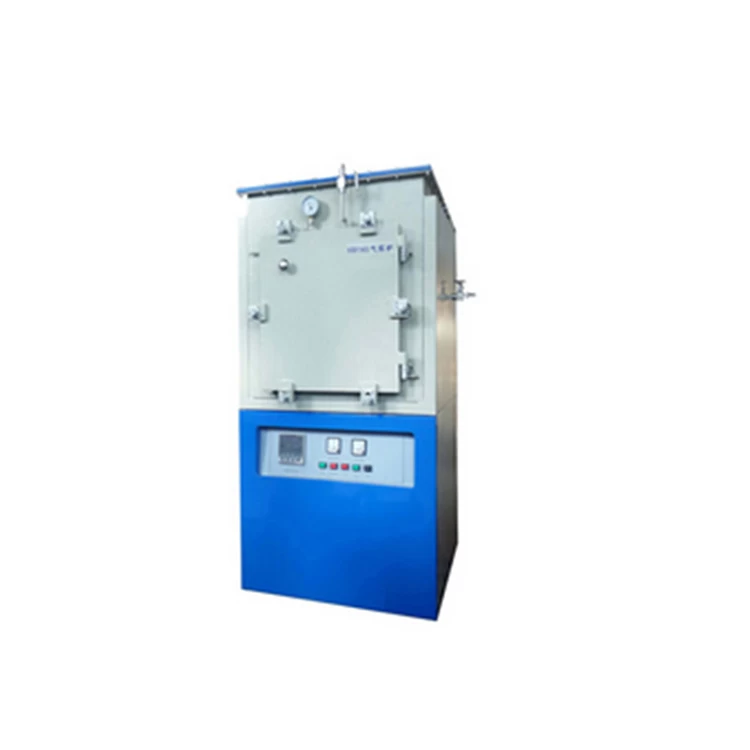

The TOB-KBF16Q High Temperature Muffle Furnace adopts Silicon carbide as heating element. 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment.
ThisAtmosphere muffle furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do atmosphere Sintering , Atmosphere reduction.
|
Model
|
Dimension
(D*W*H)
|
Power
|
Voltage
|
Max Heating
Temperature
|
|
TOB-KBF16Q-I
|
160*150*150mm
|
3kw
|
AC110V/220V
|
1600℃
|
|
TOB-KBF16Q-II
|
200*200*200mm
|
6kw
|
|
TOB-KBF16Q-III
|
300*200*200mm
|
8kw
|
|
TOB-KBF16Q-IV
|
300*250*250mm
|
10kw
|
380V
|
|
TOB-KBF16Q-V
|
400*300*300mm
|
13kw
|
|
Heating element
|
Silicon carbide
|
|
Temperature controller
|
40 program temperature control system,
With over temperature, broken accidentally protection function,
6 groups of PID adjustment
Control precision of + / - 1 ℃
|
|
Furnace chamber
|
Polycrystal alumina fiber
|
|
Pressure measure
system
|
Pressure gauge
|
|
Air intake control
|
Flow meter
|
|
Air source
|
H2, Ar, N2, O2, CO, Etc.
|
|
Warranty
|
One year limited warranty with lifetime support
|
