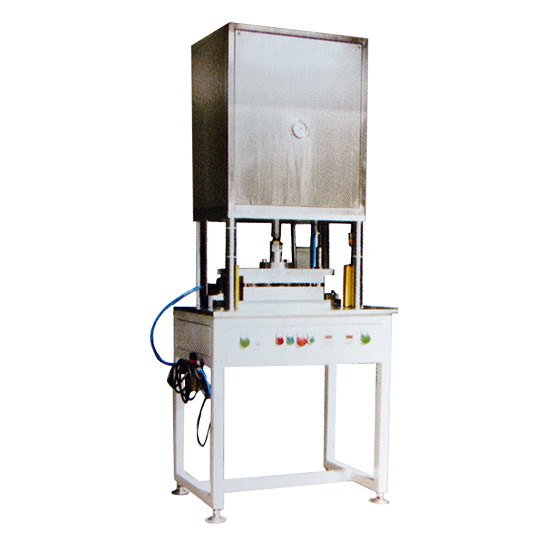

200*200*6mm Pouch Forming Machine For Lithium Battery Aluminum-Laminated Films
SPECIFICATIONS
1 TOB-CXJ200 Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the laboratory and production line of making pouch cell batteries.
2 The machine is used to prepare polymer cases made ofAluminum Laminated Films.
3 This labaluminum laminated film pouch forming machineis designed with Safety grating protection device, If with operators across the scope of securityemergency stop automatically.
|
Model
|
200*200*6mm Pouch Forming Machine. TOB-CXJ200
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
100W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 This punching forming machine adopts imported pneumatic,
electrical components, control cylinder pressure stamping forming mold.
2 Mold using high quality die steel materials, stretching out the product contour artistic,
rounded and smooth.
3 Work station is equipped with Safety grating protection device,
If with operators across the scope of security emergency stop automatically.
|
|
Suitable aluminum film
thickness
|
0.1-0.2mm
|
|
Suitable aluminum film
size
|
200*200mm(L*W), customized, with punching depth ≤6mm
|
|
Output
|
200-450EA/H
|
|
Output pressure
|
0-5T, Adjustable
|
|
Air source
|
0.5-0.7MPa
|
|
Mold materials
|
S136 Die steel
|
|
Dimension(L*W*H)
|
800*500*1850mm
|
|
Weight
|
About 220kg
|

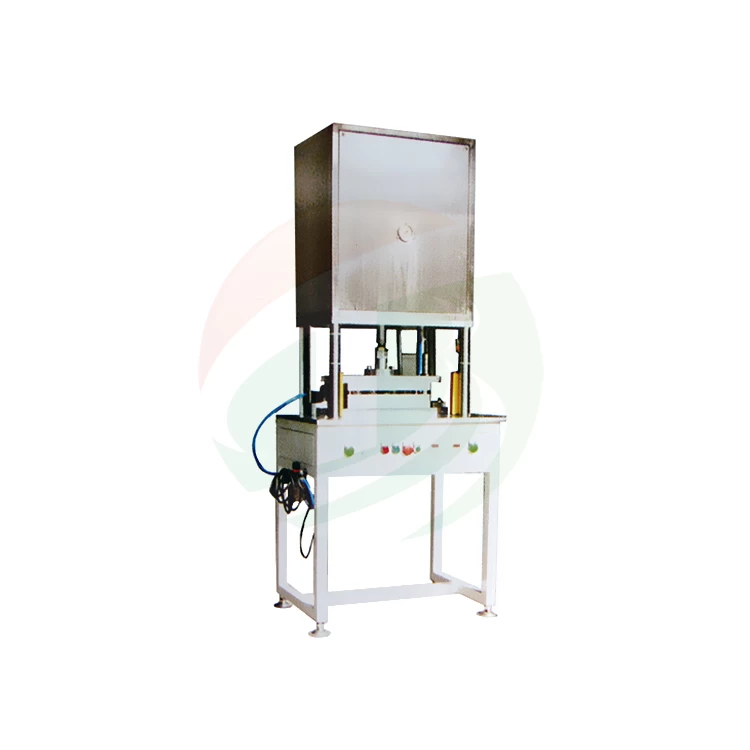

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
